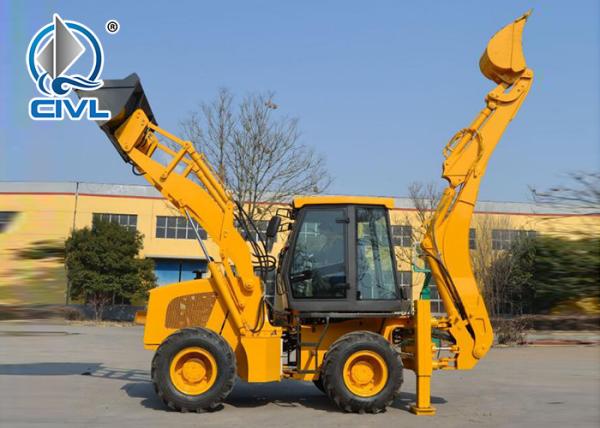

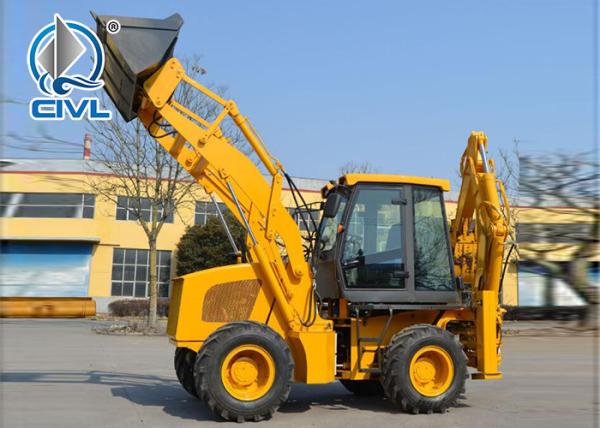

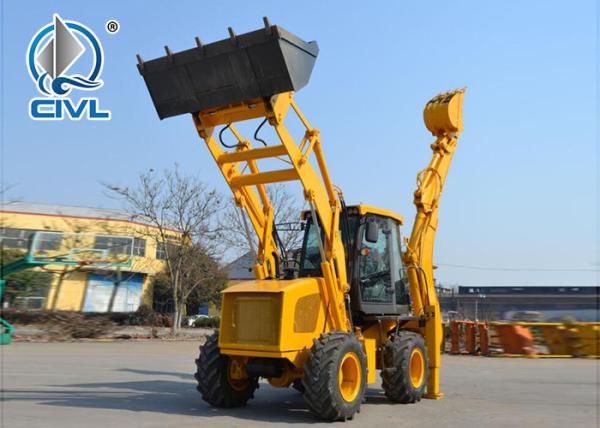

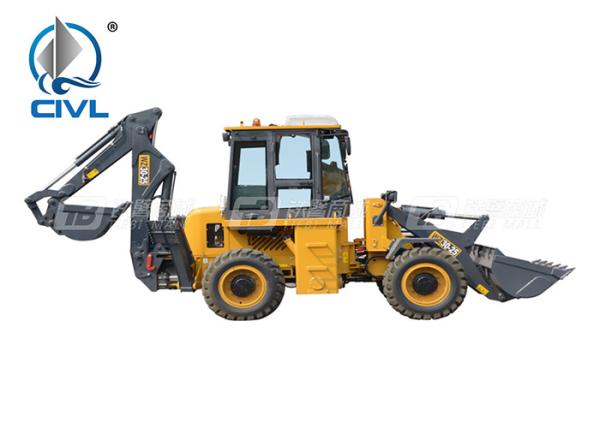

CVWZ30-25 Backhoe Wheel Loader , Compact Front End Loader 2.5 Ton
CVWZ30-25 Backhoe Wheel Loader , Compact Front End Loader 2.5 Ton
CVWZ30-25 Backhoe Wheel Loader , Compact Front End Loader 2.5 Ton
CVWZ30-25 Backhoe Wheel Loader , Compact Front End Loader 2.5 Ton
CVWZ30-25 Backhoe Wheel Loader , Compact Front End Loader 2.5 Ton
CVWZ30-25 Backhoe Wheel Loader , Compact Front End Loader 2.5 Ton
CVWZ30-25 Backhoe Wheel Loader , Compact Front End Loader 2.5 Ton
CVWZ30-25 Backhoe Wheel Loader , Compact Front End Loader 2.5 Ton
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 SETS PER MONTH
Delivery Time :
Within 35 days
Packaging Details :
In nude
Condition :
New
Moving Type :
Wheel Loader
Type :
Backhoe Loader
Dumping clearance :
2650mm
Dumping reach :
930mm
Description
CVWZ30-25 2.5Ton New Backhoe Wheel Loader Excavator With Price For Sale Machine

CVWZ30-25 Backhoe loader is a multifunctional construction machine integrating excavation and loading. It is suitable for excavating, shoveling, carrying and leveling the ground. It can be equipped with four-in-one buckets, snow shovel, forks, breakers, etc. Attachments to meet a variety of work requirements. The market share and export volume of XCMG backhoe loaders in China have maintained the industry for more than 10 consecutive years.
Unique articulated frame structure, mobile and flexible.
The traction force of the whole machine is up to 70kN, and the maximum breakout force is greater than 70kN, which is powerful and efficient.
The unloading distance can reach 930mm, which is more than 15% more than the products in the same industry.
Standard four-wheel drive, front and rear tires are the same size, strong off-road capability.
Four-wheel caliper disc brake, safe and reliable braking.
Take the lead in adopting the detachable cab frame structure design, which is convenient for transportation needs and passing through low environments.

CVWZ30-25 Backhoe Wheel Loader , Compact Front End Loader 2.5 TonCVWZ30-25 Backhoe Wheel Loader , Compact Front End Loader 2.5 TonCVWZ30-25 Backhoe Wheel Loader , Compact Front End Loader 2.5 TonCVWZ30-25 Backhoe Wheel Loader , Compact Front End Loader 2.5 Ton

CVWZ30-25 Backhoe Wheel Loader , Compact Front End Loader 2.5 Ton

Description Unit Parameter value
Bucket capacity(heaped) m³ 1
Digger capacity m³ 0.3
Dumping clearance mm 2650
Dumping reach mm 930
Max.steering angle ° ±35
Max.steering angle of dig working device ° ±85
Traceing speed I / II / III / IV km/h 0-6.2 / 0-12 / 0-20 / 0-30
Back I / II speed km/h 0-8 / 0-28.5
Diesel Model YC4A110-T310/YC41390-T20
Modality 4-stroke water-cooled inline type/4-stroke water-cooled inline type
Rated power kW 73.5 (Turbocharged)/65
Rated speed r/min 2200
Wheel base mm 2600
Tread mm 1700
Tires 16/70-24
Max.digging depth mm 4400
Max.digging radium mm 5471
Overall dimensions(L×W×H) mm 8000×2310×3424
Operating weight kg 9500

2.5Ton Backhoe Loader CVWZ30-25

1,The CVWZ30-25 is a new multi-function engineering machine which gathering the loading and excavating in the integral whole machine.

2,It is the new generation model of the development based on the same kind product technique in domestic and international.

3,Having adopted four wheel drive, hydraulic torque converter, hydraulic steering system, hydraulic.

4,It is extensively used in the road maintenance, farms and developments, getting clay for making brick, piping builds, the cable builds, parking virescence and the excavating of the road opens to dig,breaking up.etc.

5,This machine has below characteristics: The Yuchai engine: low noise, low exhaust gas, low west, green environmental protection, driving motive, good reliability.

6,The spirit valve control take type brake system and parking brake system move two unite as one,when there is trouble in the gas brake system, it can make in time brake automatically,so it is more safety.

CVWZ30-25 Backhoe Wheel Loader , Compact Front End Loader 2.5 Ton
