Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 set per month
Delivery Time :
Within 35 days
Packaging Details :
In nude
Machine Weight :
50000 kg
Type :
Front Loader
Moving Type :
Wheel Loader
Max.breakout force :
394kN
Description

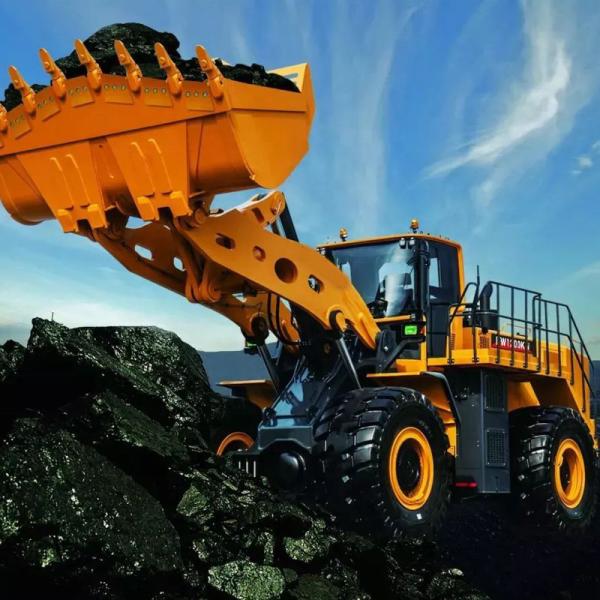

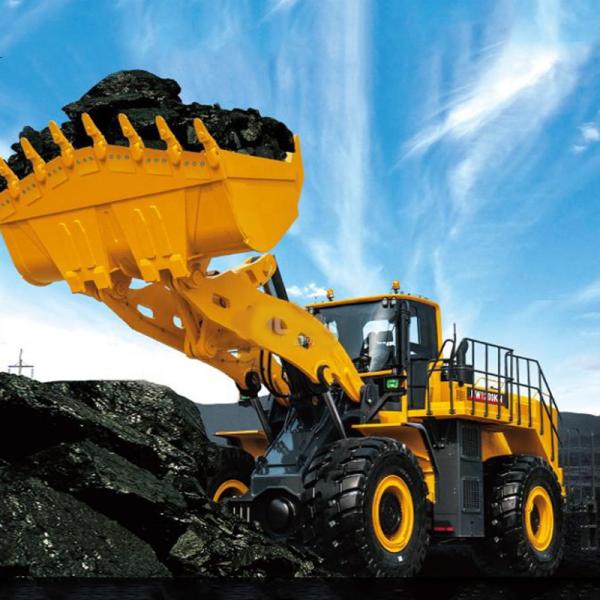

XCMG LW1200KN mining loader 12 ton Wheel loader

1,The latest integral FOPS&ROPS cab is globally developed and designed to incorporate the world’s most advanced technologies and reach the world’s leading level.

2,The integral cab structure is connected with the frame by silicone oil shock absorbers and is equipped with air cushioned seats, featuring large space, broad visual field, good sealing performance, low noise, and high safety and comfort.

3,The scientifically matched and in-depth optimized drive system assembly and the world’s leading quality drive parts ensure the high stability and reliability of the drive system and realize the maximum utilization of engine power.

4,The load-sensing variable technology is adopted to supply pressure and flow depending on the working needs, which improves the fuel utilization efficiency by 15%.

6.5m3 Bucket Largest Compact Wheel Loader For Mining Yellow Color 394kN6.5m3 Bucket Largest Compact Wheel Loader For Mining Yellow Color 394kN

Description Unit Parameter value
Wheel base mm 4500
Tread mm 2710
Dump clearance at maximum lift mm 3845
Reach at maximum lift mm 2168
Minimum ground clearance mm 505
Overall machine dimension L×W×H mm 12337×3875×4319
Rated operating load kg 12000
Bucket capacity m³ 6.5
Machine weight kg 50000
Max.breakout force kN 394
Total cycle time s 15.3
Minimum turning radius (at tire center) mm 7622
Articulation angle ° 40
Gradeability ° 25
Tyre size Radial35/65R33
EngineModel CummnisQSK19
Rated Power/Speed kW/rpm 418/2000
Travel Speed Ⅰ-gear(F/R) km/h 6.5/6.5
Ⅱ-gear(F/R) km/h 12/12
Ⅲ-gear(F/R) km/h 20/20

IV

-gear(F)		 km/h 33/33

Below picture for your reference

6.5m3 Bucket Largest Compact Wheel Loader For Mining Yellow Color 394kN

6.5m3 Bucket Largest Compact Wheel Loader For Mining Yellow Color 394kN

6.5m3 Bucket Largest Compact Wheel Loader For Mining Yellow Color 394kN
