Specifications
Brand Name :
XCMG
Model Number :
CIVL
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 per /month
Delivery Time :
Within 35 days
Packaging Details :
In nude
Price :
Negotiable
Moving Type :
Wheel Loader
Type :
Backhoe Loader
Dimension(Long * Breadth * High) :
7440*2350*3450mm
Description

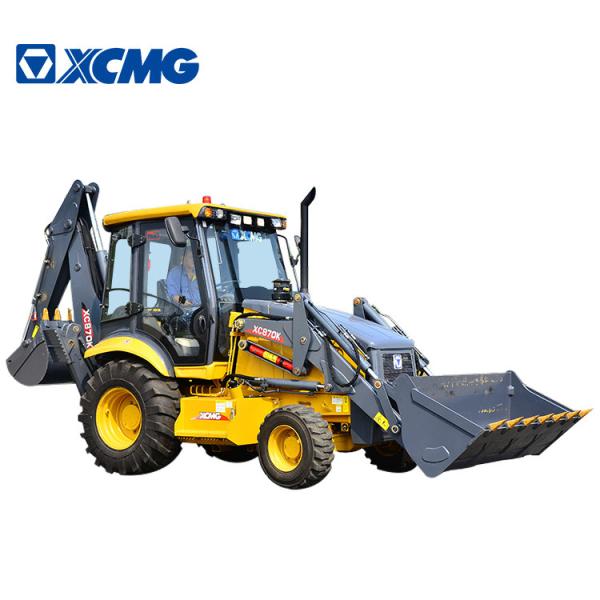

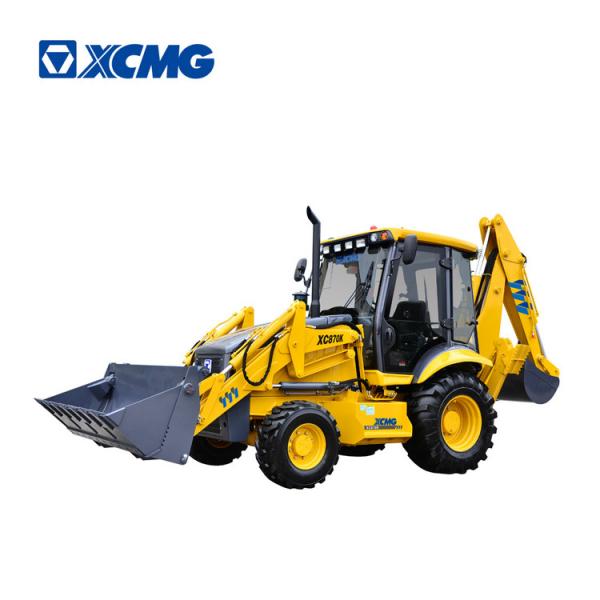

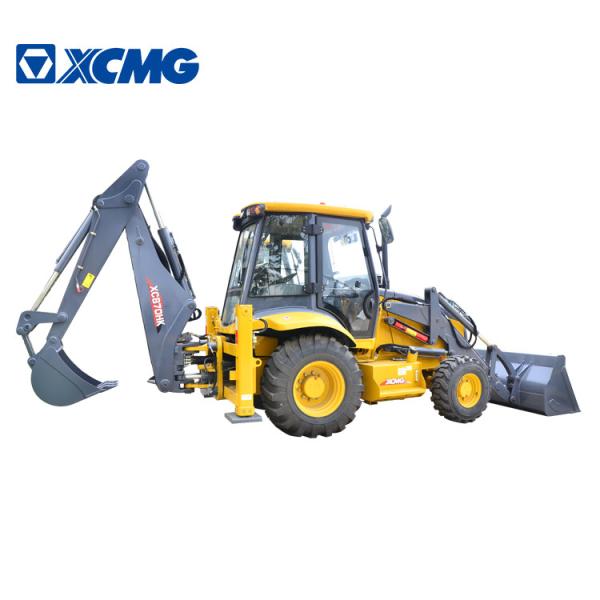

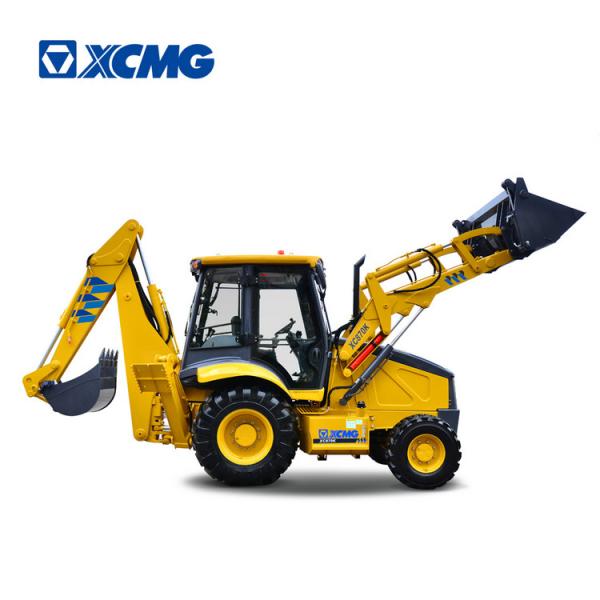

XCMG XC870K Backhoe Loader
1,The overall layout and the axle load distribution are more reasonable to achieve better traveling stability and the maximum traveling speed is up to 40km/h to realize faster site transfer speed.
2,The domestic leading hydraulic system distribution technology features high energy-saving and efficiency.
3,The highest breakout force on the loading end is leading the industry by 15%~20% compared with like models.
4,The advanced structure and hinge points on the digging end and the industry’s largest rotating angle of the bucket ensure strong soil holding capacity.

Excavator And Backhoe Compact Wheel Loader With Highe Breakout ForceExcavator And Backhoe Compact Wheel Loader With Highe Breakout ForceExcavator And Backhoe Compact Wheel Loader With Highe Breakout ForceExcavator And Backhoe Compact Wheel Loader With Highe Breakout Force

Description Unit Parameter value
Chassis type integrated
Drive style 4 drive/2 drive
Digging working device middle
Outline dimensions(L×W×H) mm 7440×2350×3450
Total weight kg 7600
Max. travel speed km/h ≥40
Wheelbase mm 2180
Engine Power kW 82(Cummins) 74(Cummins) 74.9(Deutz dalian) 70(weichai )
Supplier tier 3 tier 2 tier 3 tier 2
Loading device Bucket capacity m³ 1
Rated load kg 2500
Max. breakout kN 66
Max. discharge height mm 2770
Max. discharge distance mm 755
System pressure Mpa 24
Digging device Bucket capacity m³ 0.3
Max. digging radius mm 5460
Max. digging depth mm 4425
Max. digging force kN 63
System pressure Mpa 24

Excavator And Backhoe Compact Wheel Loader With Highe Breakout Force

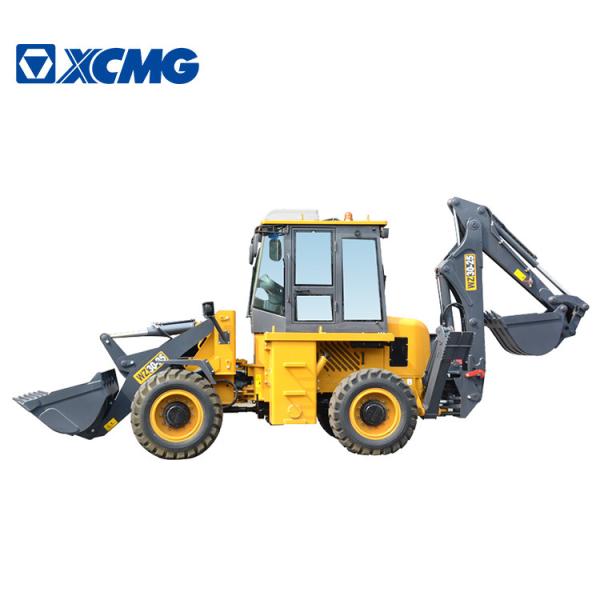

Picture for you reference
