9000kg Front Compact Wheel Loader Construction works XCMG 3600mm
9000kg Front Compact Wheel Loader Construction works XCMG 3600mm
9000kg Front Compact Wheel Loader Construction works XCMG 3600mm
9000kg Front Compact Wheel Loader Construction works XCMG 3600mm
9000kg Front Compact Wheel Loader Construction works XCMG 3600mm
9000kg Front Compact Wheel Loader Construction works XCMG 3600mm
9000kg Front Compact Wheel Loader Construction works XCMG 3600mm
9000kg Front Compact Wheel Loader Construction works XCMG 3600mm
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
CE/ISO9001
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 set per month
Delivery Time :
Within 35 days
Packaging Details :
In nude
Machine Weight :
31000 kg
Type :
Front Loader
Moving Type :
Wheel Loader
Wheel base :
3600mm
Description

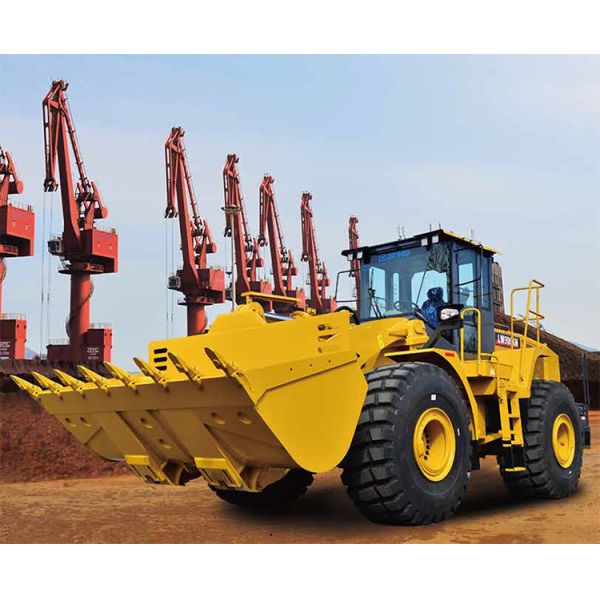

XCMG 9ton Wheel Loader LW900KN mining front loader

1,The latest integrated FOPS & ROPS ultra-low-noise cab features European/American mainstream style and super-large space and integrates the world’s most advanced technologies nowadays to reach the world-class level and realize higher safety, broader visual field, and better operating comfort.

2,The scientifically matched and in-depth optimized drive system and the transmission and drive axle of international advanced quality achieve higher efficiency and reliability.

3,The extended wheelbase heavy-load design and the structural parts analyzed and optimized by 3D simulation meet the operation needs under severe working conditions.

4,The load-sensing variable technology is applied to supply the oil pressure and flow depending on the working needs, which greatly improves the utilization efficiency of fuel.

5,The independent single-row radiator system with large fin spacing is applied to thoroughly solve the thermal balance difficult during operations under diversified severe environments.

9000kg Front Compact Wheel Loader Construction works XCMG 3600mm

9000kg Front Compact Wheel Loader Construction works XCMG 3600mm

Description Unit Parameter value
Wheel base mm 3600
Tread mm 2460
Dump clearance at maximum lift mm 3400
Reach at maximum lift mm 1400
Height of hinge at maximum lift height mm 4600
Working height(fully lifted) mm 6415
Overall machine dimension L×W×H mm 9500×3500×3845
Rated operating load kg 9000
Bucket capacity m³ 5
Machine weight kg 31000
Max.breakout force kN 260
Max.horse power kN 245
Lifting time of boom s ≤6.5
Total cycle time s ≤11.5
Minimum turning radius (at tire center) mm 6200
Articulation angle ° ±38
Gradeability ° 25
Tyre size 29.5R25
EngineModel CUMMINS QSM11—C335
Rated Power/Speed kW/rpm 250/2100
Travel Speed Ⅰ-gear(F/R) km/h 7/7
Ⅱ-gear(F/R) km/h 11.6/11.6
Ⅲ-gear(F/R) km/h 24.5/24.5
IV-gear(F/R) km/h 35

Our Services

9000kg Front Compact Wheel Loader Construction works XCMG 3600mm

Below picture for your referemnce

9000kg Front Compact Wheel Loader Construction works XCMG 3600mm
