XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader
XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader
XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader
XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader
XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader
XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader
XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader
XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader
XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader
XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader
XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader
XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 sets /per month
Delivery Time :
Within 35 days
Packaging Details :
In nude
Hydraulic Pump Brand :
XCMG
Engine Brand :
WEICHAI
Type :
Front Loader
Condition :
New
Machine Weight :
3000KG
Description

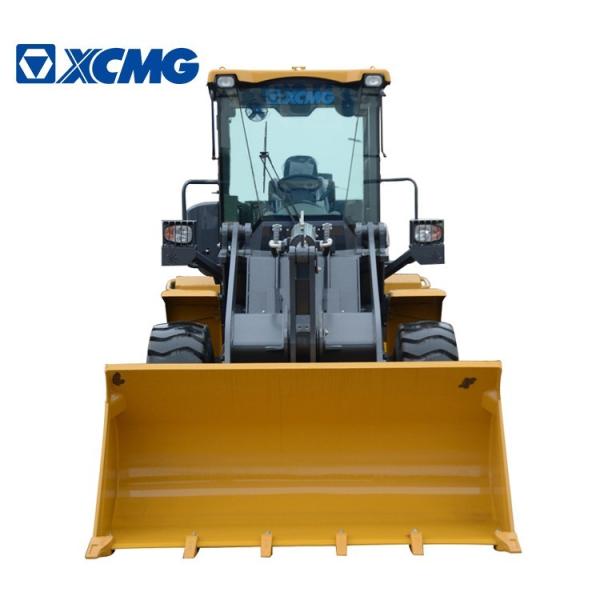

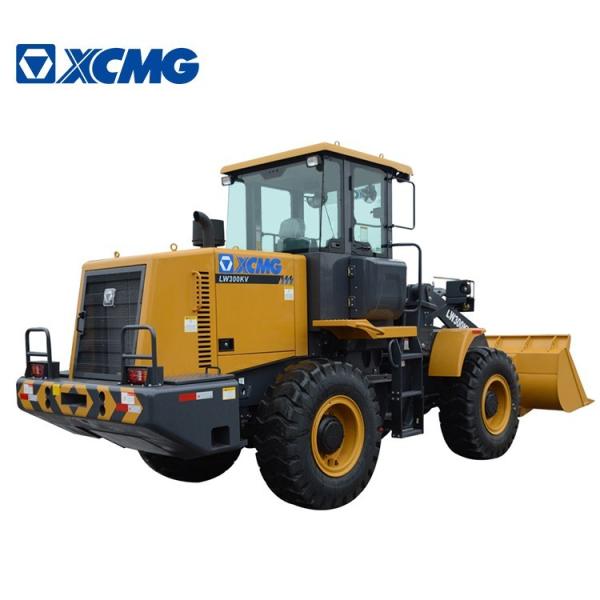

XCMG Official wheel loader LW300KV ,Compact Articulated Wheel Loader,Small Bucket Loader

XCMG Official wheel loader LW300KV

1,The high-efficiency electronic control counter shaft transmission matches perfectly with the engine.
2,The three-stage air filter is designed especially for severe working environment of construction machinery industry.
3,The material and heat treatment for pump shaft connecting spline are improved and the forced lubrication is applied to prolong the life by 20%.
4,With optimized materials and processes, the main reducer and wheel reducer passed the industry’s leading reliability life test of >900,000 cycles.
5,The double-pump confluence/distribution technology is applied so that the steering pump preferentially supplies oil to the steering system.

Item Parameter
Rated load 3
Bucket capacity 1.8m2
Dumping height 2930mm
Dumping distance 1000mm
Ma drawing force ≥120
Max traction ≥90
Dimensions (L) 7250x (W) 2580x (H) 3290mm
Operating weight 10.6 tons
Boom lifting time 5.68 seconds
Total time of three devices 10.3 seconds
Wheelbase 2900mm
Min turning radius (bucket outer) 6067mm
Rated power 92kW
Long boom parameter
Bucket capacity 1.5/1.8m3
Rated load 2.7/2.7 tons
Dimensions (L) 7540x (W) 2580x (H) 3290mm
(L) 7640x (W) 2580x (H) 3290mm
Dumping height 3290/3225mm
Dumping distance 1092/1172mm
Operating weight 10.6/10.8 tons
Attachment parameter - grasping grass
Dumping height 3043mm
Dumping distance 2036mm
Clamp body width 2200mm
Max opening 2800mm
Attachment parameter - clamp ( III )
Dumping height 2784mm
Dumping distance 1134mm
Min circle diameter 590mm
Max opening 1700mm
Attachment parameter - side dumping
Bucket width 2650mm
Dimension 7414×2650×3290mm
Dumping height (straight/side) dumping 2813/3623mm
Dumping distance (straight/side) dumping 1104/183mm
Lifting height (straight/side) dumping 5120/6052mm

Summary

Rated Load:3000kg

Dimension(Long* Breadth * High):7245x2482x3210mm

Place of Origin:China

Model Number:LW200KV

Brand Name:XCMG

Certification:IOS9001

Details

Product Name:G5BA1F69564738

Display online time:2018-11-21

weight:10800.000kg

After-sales Service Provided:Engineers available to service machinery overseas

Warranty:12 Months

Condition:NEW

Moving Type:wheel

Advantage

1,The high-efficiency electronic control counter shaft transmission matches perfectly with the engine.

2,The three-stage air filter is designed especially for severe working environment of construction machinery industry.

3,The material and heat treatment for pump shaft connecting spline are improved and the forced lubrication is applied to prolong the life by 20%.

4,With optimized materials and processes, the main reducer and wheel reducer passed the industry’s leading reliability life test of >900,000 cycles.

5,The double-pump confluence/distribution technology is applied so that the steering pump preferentially supplies oil to the steering system.

XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader

Product Description

LW300kv Wheel Loader
1,It features high efficiency, energy-saving, and strong power.
2,The 2600mm wheelbase features high mobility and flexibility and is applicable to all kinds of working sites.
3,China-II emission compliance, high performance, and low fuel consumption.
4,The first-class hydraulic units ensure low pressure loss, less system heating, and high reliability.
5,The framework structure engine hood and the uplift large side doors boast large opening angle and make the checking, repair, and maintenance easier for the engine and radiator.

XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket LoaderXCMG Official Articulated Compact Wheel Loader , Fast Small Bucket LoaderXCMG Official Articulated Compact Wheel Loader , Fast Small Bucket LoaderXCMG Official Articulated Compact Wheel Loader , Fast Small Bucket LoaderXCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader

XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader

Picture for you reference
XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader
XCMG Official Articulated Compact Wheel Loader , Fast Small Bucket Loader
