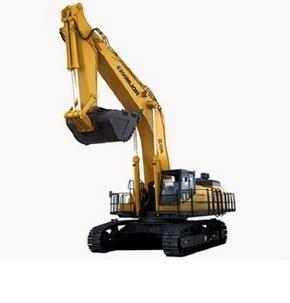

ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
ZE1250E Large Capacity Bucket Hydraulic Crawler Excavator Super High Power
Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Working mass :
122000-123000
Rated power :
567/1800 kw/rpm
Standard bucket capacity(SAE) :
7m3
Engine model :
Cummins QSK23
Delivery Time :
Within 35 days
Description
? Proprietary intelligent power control system that ensures the most optimized configuration for the super high power system and super high flow multi-pump and multi-valve hydraulic system to provide efficiency and power saving
? Large capacity bucket and optimized devices that enhances operational efficiency significantlyat adverse miningenvironments and during complicated operations
? Good ergonomic design with low vibration and noise, wide and comfortable full view cab to provide stable operation
Item Unit ZE1250E ZE1250ESP ZE1250ELS
Key Parameter Working mass kg 122000 121200 123000
Rated power kw/rpm 567/1800 567/1800 567/1800
Standard bucket capacity(SAE) m3 5.3 7 7
System flow
(Max. pressure/ Max. flow)		 - 32 /35 Mpa
1560 L/min		 32 /35 Mpa
1560 L/min		 32 /35 Mpa
1560 L/min
Engine model - Cummins
QSK23		 Cummins
QSK23		 Cummins
QSK23
Max. torque N.m/rpm 3448/1350 3448/1350 3448/1350
Traveling speed (low/high) km/h 2.17/3.22 2.17/3.22 2.17/3.22
Slewing speed rpm 5.5 5.5 5.5
Gradeability° ° 35° 35° 35°
Max. drawbar pull kN 735 735 735
Digging force of bucket (ISO) kN 545 578 579
Digging force of stick (ISO) kN 450 445 608
Basic Parameter Slewing radius of tail mm 4980 4980 4980
Tail length mm 4800 4800 4800
Counterweight ground clearance mm 1848 1848 1848
Min. ground clearance mm 990 990 990
Ground contact length mm 5200 5200 5200
Track length mm 6615 6615 6615
Track gauge mm 3900 3900 3900
Track width mm 4600 4600 4600
Track shoe width mm 700 700 700
Height of grouser mm 50 50 50
Slewing table width mm 5492 5492 5492

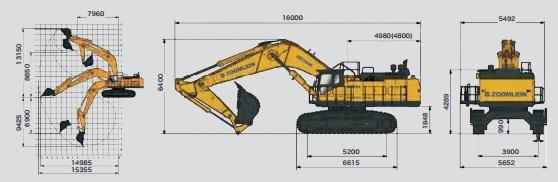

Operating Range Max. excavating radius mm 15355 14110 11400
Max. excavating distance mm 14985 13710 10900
Max. excavating height mm 13150 12950 12330
Max. discharging height mm 8650 8380 8700
Max. excavating depth mm 9425 8000 3650
Max. vertical excavating depth mm 6900 4840 /
Min. slewing radius of front mm 7960 6470 /
