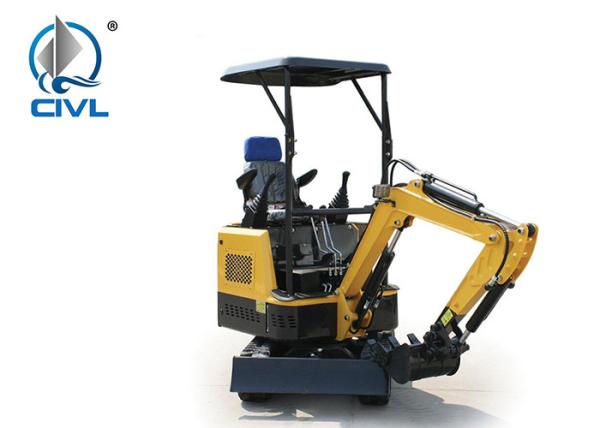

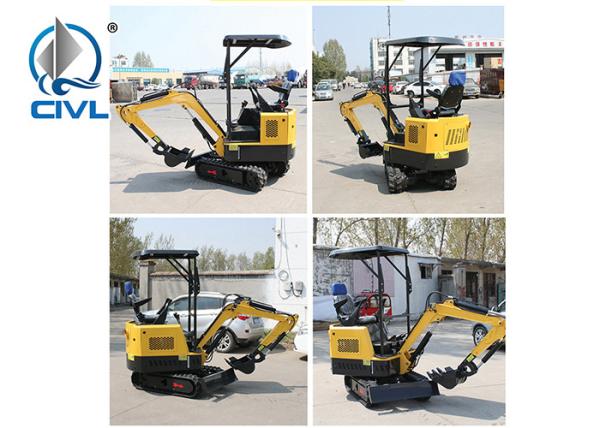

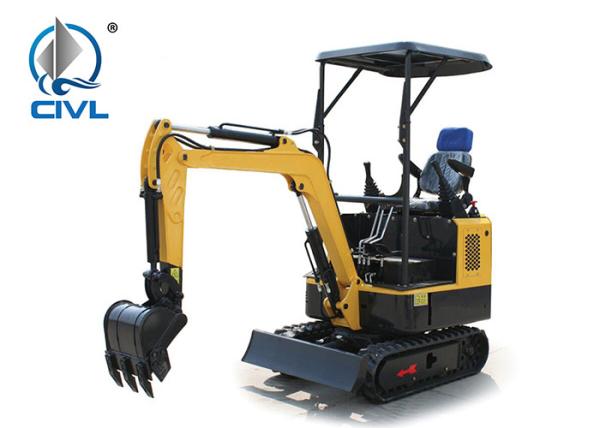

Yellow XE15 Hydraulic Crawler Excavator 0.044m³ for Construction
Quick detail:
Condition: Brand New
Fuel Type:Diesel
Made year : 2013
Place of Origin: Shandong,China(Mainland)
Description:
Specifications:
Model | Unit | XE15 | |
Operating weight | kg | 1640 | |
Standard bucket capacity | m³ | 0.044 | |
Engine | Engine Model: 3TNV82A | ||
Direct injection | |||
Four strokes | |||
Water cooling | |||
Turbo charged | |||
Air to air intercooler | |||
3f cylinders | |||
Rated power/speed | kw/rpm | 16.5/2200 | |
Max. torque/speed | N.m | 86.5/1320 | |
Displacement | L | 1.33 | |
Main performance | Travel speed | km/h | 4.4/2.4 |
Swing speed | r/min | 11 | |
Max. Gradability | / | 30° | |
Ground pressure | kPa | 23.8 | |
Max.Bucket digging force | kN | 13.9 | |
Max.arm crowd force | kN | 8.8 | |
Hydraulic system | Main pump: NACHI | ||
Rate flow of main pump | L/min | 2×19.8+14.1 | |
Tank capacity | Fuel tank capacity | L | 20 |
Hydraulic tank capacity | L | 29 | |
Engine lubrication | L | 5.5 | |
Overall dimension | Overall length | mm | 3760 |
Overall width | mm | 1080 | |
Overall height | mm | 2400 | |
Track length | mm | 1578 | |
Crawler width | mm | 230 | |
Dozer black(width/height) | mm | 1080×225 | |
Working range | Max. digging height | mm | 3615 |
Max. dumping height | mm | 2480 | |
Max. digging depth | mm | 2320 | |
Max. vertical wall digging depth | mm | 1520 | |
Max. digging reach | mm | 3915 | |
Min. swing radius | mm | 1675 | |
Max.dozer lifting height | mm | 220 | |
Max.dozer cutting depth | mm | 240 | |
Angle of arm deflection | Degree | 70/50 |
1:Any inquiry will be replied within 24 hours.
2.Well-trained and experienced staff to answer all your inquiries .
3.Factory visit is welcomed and free booking hotel and airport pick up service.
4. Engineers will go to clients' site for guiding the installation and test-running.
5.Spare parts supply,We will keep your know the complete data, when you need any spare parts, we will send to you in a fast way.
6.15 months super long time guarantee period.
7. For the dump truck and semi trailer,it's half a year,If there are some quality problems in axle,
transmission,engine,etc,and confirmed it's really the quality problems,we'll send the parts free,but man
wrong operation and daily fast moving spare parts are not included,for the trailer,the electric systems
and fast moving spare parts are not included.
PS:We have our own spare parts departments .we can satisfy your demand within 10days .
We always do our best to solve the problems and put our customers interests in the first place .
Transport
Truck is nude packing, shipping in container, in bulk ,in ro-ro.
We will choose the best shipping type based on truck volume, truck structure, Sail Schedule, clients’ requirement for clients!
