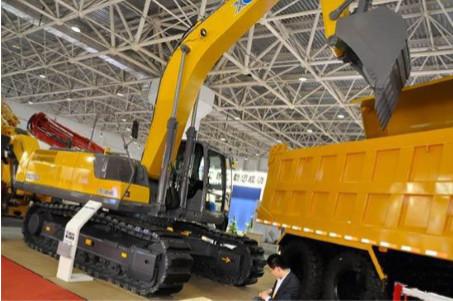

37ton CVXE3370 XCMG Large Hydraulic Crawler Excavator Bucket Capacity 1.27-1.6m3
37ton CVXE3370 XCMG Large Hydraulic Crawler Excavator Bucket Capacity 1.27-1.6m3
37ton CVXE3370 XCMG Large Hydraulic Crawler Excavator Bucket Capacity 1.27-1.6m3
37ton CVXE3370 XCMG Large Hydraulic Crawler Excavator Bucket Capacity 1.27-1.6m3
37ton CVXE3370 XCMG Large Hydraulic Crawler Excavator Bucket Capacity 1.27-1.6m3
37ton CVXE3370 XCMG Large Hydraulic Crawler Excavator Bucket Capacity 1.27-1.6m3
37ton CVXE3370 XCMG Large Hydraulic Crawler Excavator Bucket Capacity 1.27-1.6m3
37ton CVXE3370 XCMG Large Hydraulic Crawler Excavator Bucket Capacity 1.27-1.6m3
Specifications
Brand Name :
XCMG
Model Number :
CVXE215DA
Certification :
ISO,CE
Place of Origin :
China
MOQ :
1set
Payment Terms :
L/C, T/T
Supply Ability :
100 Units per week
Delivery Time :
35 work days
Packaging Details :
In nude
Brand :
XCMG
Model :
CVXE215DA
Condition :
New
Operating Weight :
21900KG
Bucket capacity :
0.4M³
Description

SPECIFICATION:

Specifications
Made year: 2020
Rated load: 37 Ton
Operating weight : 36600kg
Bucket capacity: 1.4-1.8m3
Performance Drive beam length (mm) 6400
Bucket pole length (mm) 2670
Ground pressure(Kpa) 66.6
Bucket dig force 242kN
Bucket pole dig force (kN) 207
Return speed 9.7rpm
Working speed 5.4/3.2km/h
Climb ability 35°
Engine: ISUZU AA-6HK1XQP,184/2000kw/rpm, 6 cylinder,
Direct injection; 4 stroke; water cooling; turbocharging
Maximum torque 872.8/1700N.m
Hydraulic system Main overflow pressure (Mpa) 31.5/34.3
Maximum flow rate of main pump (l/min) 2*320
Walking hydraulic circuit (Mpa) 34.3
Rotary hydraulic circuit (Mpa) 27.5
Pilot oil circuit (MPa) 3.9
Diesel tank 630L
Hydraulic tank 320L
Engine oil tank 28L
Dimension Overall (L*W*H) 11386*3190*3530mm
Rotary platform width 2950mm
Track length*width 5035mm*600mm
Track wheelbase 4040mm
Min Ground clerance 500mm
Counterweight clerance 1197mm
WorKing area Max dig diameter(mm) 10470
Max. dig depth(mm) 6927
Max dig height(mm) 10123
Max disload height(mm) 6947
Max vertical dig depth(mm) 6709
Min return radius(mm) 4424

37ton CVXE3370 XCMG Large Hydraulic Crawler Excavator Bucket Capacity 1.27-1.6m3

37ton CVXE3370 XCMG Large Hydraulic Crawler Excavator Bucket Capacity 1.27-1.6m3

37ton CVXE3370 XCMG Large Hydraulic Crawler Excavator Bucket Capacity 1.27-1.6m337ton CVXE3370 XCMG Large Hydraulic Crawler Excavator Bucket Capacity 1.27-1.6m3
