X9 Breaker Wheel Crawler Excavator And Clamp Yellow Colour
X9 Breaker Wheel Crawler Excavator And Clamp Yellow Colour
X9 Breaker Wheel Crawler Excavator And Clamp Yellow Colour
X9 Breaker Wheel Crawler Excavator And Clamp Yellow Colour
X9 Breaker Wheel Crawler Excavator And Clamp Yellow Colour
X9 Breaker Wheel Crawler Excavator And Clamp Yellow Colour
X9 Breaker Wheel Crawler Excavator And Clamp Yellow Colour
X9 Breaker Wheel Crawler Excavator And Clamp Yellow Colour
Specifications
Brand Name :
CIVL
Model Number :
CVX9
Certification :
ISO CCC
Place of Origin :
CHINA
MOQ :
2unit
Payment Terms :
T/T,
Supply Ability :
1200 units per month
Delivery Time :
Within 25 days
Packaging Details :
In nude
Condition :
New
Moving type :
Wheel and Crawler
Warranty :
12 Months
Color :
yellow
Keywords :
Excavators breaker clamp
Bucket capacity :
0.3CBM (standard)
Operating weight :
8510kgs
Made in :
China
Description

New X9 Wheel Crawler Breaker Wheel-Crawler Excavator And Clamp Yellow Colour

● National invention patent product
● Japanese Yanmar engine
● Meet National III emission standard
● 30% fuel saving

Specification:

X9 Breaker Wheel Crawler Excavator And Clamp Yellow Colour

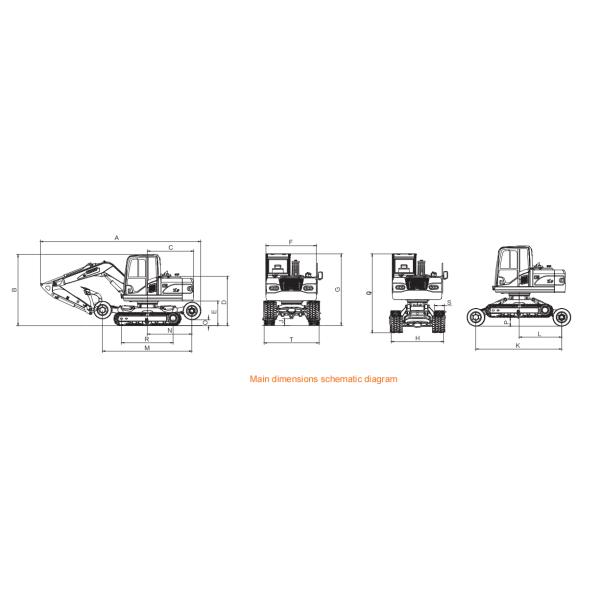

Main dimension Unit:mm
A Total length
Boom3.5m+Bucket arm 2m 6570
B Total height
Boom3.5m+Bucket arm 2m 2982
C Counter weight turning radius 1836
D engine hood height 2104
E Counter weight ground clearance 1120
F Upper structurewidth 2000
G Cabin height (wheels up) 2982
H Tire width 2120
J Minimum ground clearance 270
K Wheels upwheel gauge 3400
L distance of swing center to rear wheel (wheels down) 1682
M Wheels downwheel gauge 3560
N distance of swing center to rear wheel (wheels up) 1767
O Rear wheel ground clearance (wheels up) 300
P Tracks ground clearance (wheels down) 330
Q Total height (wheels down) 3190
R Track wheel base 2050
S Track width 400
T Track outer width 2160

X9 Breaker Wheel Crawler Excavator And Clamp Yellow Colour

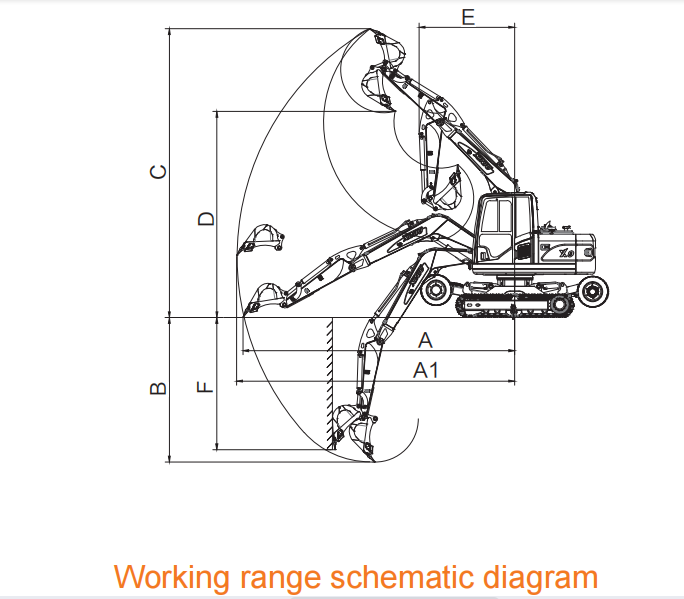

Boom 3.5m+arm 2m
A1 Max. digging radius 6680
A Max. digging radius on ground 6555
B Max. digging depth 3572
C Max. Cutting height 6955
D Max. dumping height 5245
E Min. turning radius 2540
F Max. vertical digging depth 3255
Bucket digging force(Kn) 56
(Kn) Bucket arm digging force

36

SPECIFICATION Unit
Machine Weight 8510 kg (dig) 8840 kg (clamp)
Bucket capacity 0.3 m3
Engine Model Yanmar 4TnV98-ZCsLKC
displacement 3.319L
engine power/rpm 46.3kW/2200 rpm
Max. torque 223.3～243.5n.m/1600±100 rpm
Can choose the engine Model Yanmar 4TnV98T-ZCsTYC
displacement 3.319L
Rated power / speed 56.5kW /2200 rpm
Max. torque 273.3～298.2n.m/1650±100rpm
speed Wheel travelling speed 21 km/h
Track travelling speed 3 km/h
swing speed 9rpm
30°
Max. grade ability
Hydraulic and liquid capacity Hydraulic system Rexroth
Pump X1 variable capacity pump
Pressure 25 MPa
displacement 132 L/min
Hydraulic oil tank capacity 175 L
Fuel tank capacity 150 L
engine oil capacity 12 L

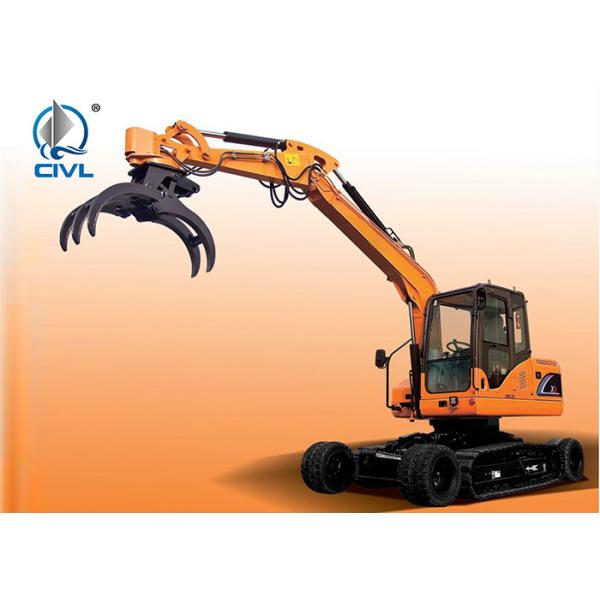

Photos:

X9 Breaker Wheel Crawler Excavator And Clamp Yellow ColourX9 Breaker Wheel Crawler Excavator And Clamp Yellow Colour

X9 Breaker Wheel Crawler Excavator And Clamp Yellow Colour
