Specifications
Brand Name :
CIVL
Model Number :
CVX9
Certification :
ISO CCC
Place of Origin :
CHINA
MOQ :
1unit
Payment Terms :
T/T,
Supply Ability :
1200 units per month
Delivery Time :
Within 25 days
Packaging Details :
In nude
Condition :
New
Moving type :
Wheel Crawler Excavator
Warranty :
12 Months
Color :
yellow
Keywords :
Excavators
Bucket capacity :
0.3CBM (standard)
Operating weight :
8510kgs
Description

X9 Wheel Crawler Backhoe 0.3m3 Bucket Capacity Excavator Yellow Colour

This switchable wheeled system makes it easy to transition between short-distance construction sites.
Avoid trolley transportation, save time and effort,
Switch to crawler mode during operation, and avoid the disadvantages of common wheel digging, such as easy trapping and weak climbing.

Specification:

SPECIFICATION Unit
Machine Weight 8510 kg (dig) 8840 kg (clamp)
Bucket capacity 0.3 m3
Engine Model Yanmar 4TnV98-ZCsLKC
displacement 3.319L
engine power/rpm 46.3kW/2200 rpm
Max. torque 223.3～243.5n.m/1600±100 rpm
Can choose the engine Model Yanmar 4TnV98T-ZCsTYC
displacement 3.319L
Rated power / speed 56.5kW /2200 rpm
Max. torque 273.3～298.2n.m/1650±100rpm
speed Wheel travelling speed 21 km/h
Track travelling speed 3 km/h
swing speed 9rpm
30°
Max. grade ability
Hydraulic and liquid capacity Hydraulic system Rexroth
Pump X1 variable capacity pump
Pressure 25 MPa
displacement 132 L/min
Hydraulic oil tank capacity 175 L
Fuel tank capacity 150 L
engine oil capacity 12 L

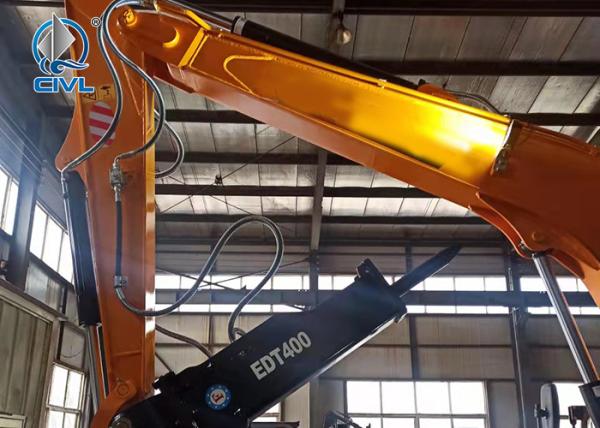

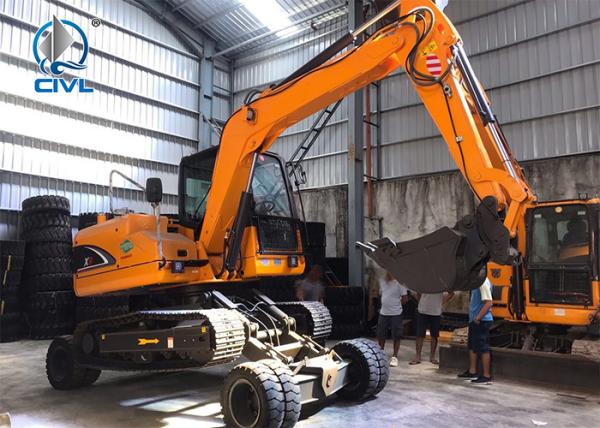

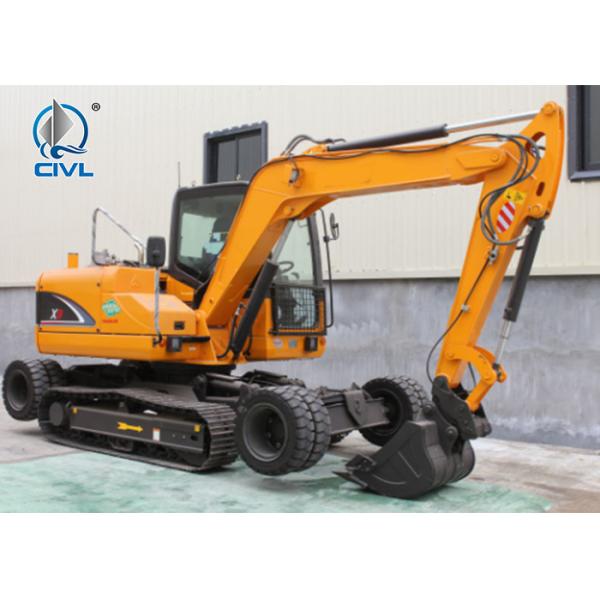

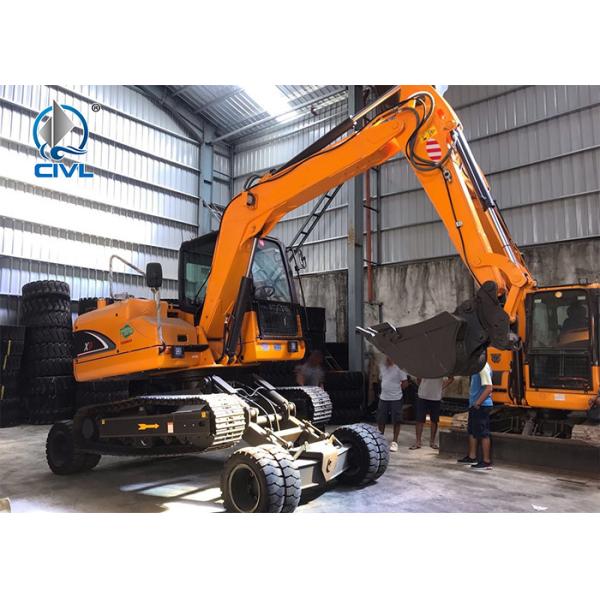

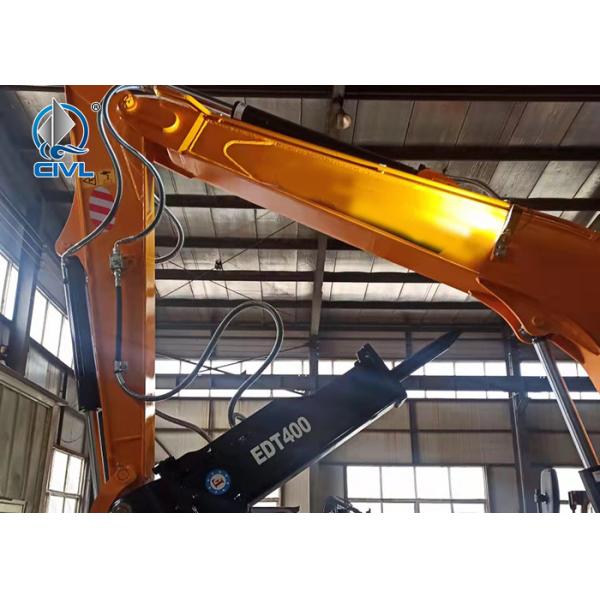

Photos:

Yellow Colour Wheel Crawler Excavator Backhoe 0.3m3 Bucket Capacity 2200rpmYellow Colour Wheel Crawler Excavator Backhoe 0.3m3 Bucket Capacity 2200rpmYellow Colour Wheel Crawler Excavator Backhoe 0.3m3 Bucket Capacity 2200rpm

Features:

1. Imported International brand plunger pump,main valve, quick moving, compound movement harmoniously, high reliability, long service time.

2. New upgraded cab, beautiful appearance, indoor ergonomic design, front gear shifting mechanism, adjustable suspension seat, air onditioning,

large screen LCD, wide vision, more comfortable operation.
3. The overall box-type structure chassis, with reinforced front and rear driven axles, reinforcement gearbox,reinforcement up and down box,
more load carry capacity. Front and rear driven axles with hub reduction, more passing ability, suitable for complex road, more driving power, suitable for climbing
