New EXCAVATOR XE335DK XCMG 33ton Crawler Excavator Bucket Capacity 1.6-2.0m3
New EXCAVATOR XE335DK XCMG 33ton Crawler Excavator Bucket Capacity 1.6-2.0m3
New EXCAVATOR XE335DK XCMG 33ton Crawler Excavator Bucket Capacity 1.6-2.0m3
New EXCAVATOR XE335DK XCMG 33ton Crawler Excavator Bucket Capacity 1.6-2.0m3
New EXCAVATOR XE335DK XCMG 33ton Crawler Excavator Bucket Capacity 1.6-2.0m3
New EXCAVATOR XE335DK XCMG 33ton Crawler Excavator Bucket Capacity 1.6-2.0m3
New EXCAVATOR XE335DK XCMG 33ton Crawler Excavator Bucket Capacity 1.6-2.0m3
New EXCAVATOR XE335DK XCMG 33ton Crawler Excavator Bucket Capacity 1.6-2.0m3
Specifications
Brand Name :
CIVL
Model Number :
XE335DK
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Price :
Negotiation
Payment Terms :
T/T
Supply Ability :
40 units/week
Delivery Time :
Within 25 days
Packaging Details :
In nude
Name :
Crawler Excavator
Bucket Capacity :
1.6-2.0m3
Operating weight :
33000kg
Condition :
New
Engine :
84/2000kw/rpm
Diesel tank :
630L
Overall (L*W*H) :
11386*3190*3530mm
Max dig diameter :
10470mm
Max. dig depth :
6927mm
Max dig height :
10123mm
Color :
Yellow
Keywords :
Excavators
Type :
Hydraulic Crawler Excavator
Description

New EXCAVATOR XE335DK XCMG 33ton Crawler Excavator Bucket Capacity 1.6-2.0m3

Description:

XE335DK excavator adopts customized low-speed high-torque engine and large-displacement pump.
The new heavy-load identification control technology is adopted to realize the segmental control of the high-pressure zone in the mine working conditions;
XCMG 335 adopts imported large-diameter main valve, which has low energy consumption and high flow distribution efficiency.

Specification:

Rated load: 33Ton
Operating weight : 33500kg
Bucket capacity: 1.6-2.0m3
Performance Drive beam length (mm) 6400
Bucket pole length (mm) 2670
Ground pressure(Kpa) 66.6
Bucket dig force 242kN
Bucket pole dig force (kN) 207
Return speed 9.7rpm
Working speed 5.4/3.2km/h
Climb ability 35°
Engine: ISUZU AA-6HK1XQP,184/2000kw/rpm, 6 cylinder,
Direct injection; 4 stroke; water cooling; turbocharging
Maximum torque 872.8/1700N.m
Hydraulic system Main overflow pressure (Mpa) 31.5/34.3
Maximum flow rate of main pump (l/min) 2*320
Walking hydraulic circuit (Mpa) 34.3
Rotary hydraulic circuit (Mpa) 27.5
Pilot oil circuit (MPa) 3.9
Diesel tank 630L
Hydraulic tank 320L
Engine oil tank 28L
Dimension Overall (L*W*H) 11386*3190*3530mm
Rotary platform width 2950mm
Track length*width 5035mm*600mm
Track wheelbase 4040mm
Min Ground clerance 500mm
Counterweight clerance 1197mm
WorKing area Max dig diameter(mm) 10470
Max. dig depth(mm) 6927
Max dig height(mm) 10123
Max disload height(mm) 6947
Max vertical dig depth(mm) 6709
Min return radius(mm) 4424

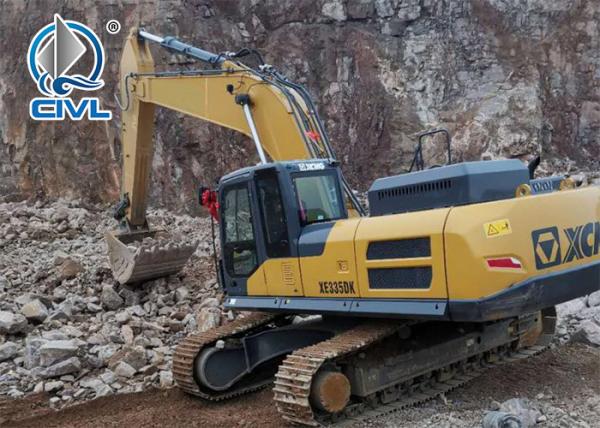

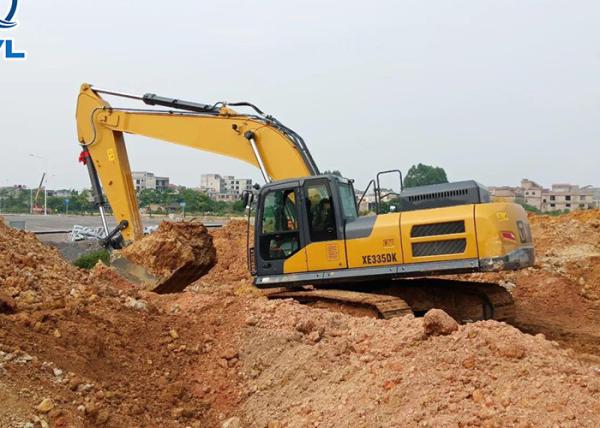

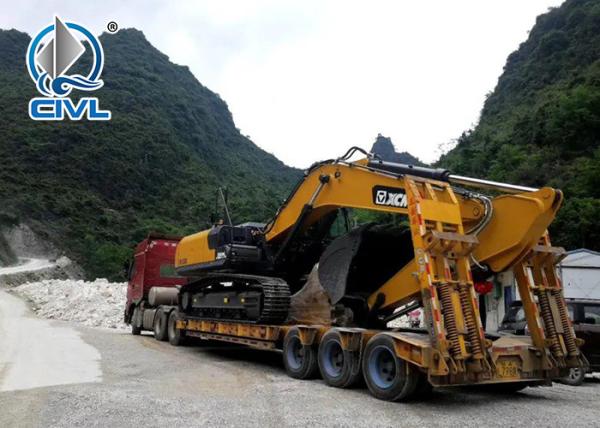

Photos:

New EXCAVATOR XE335DK XCMG 33ton Crawler Excavator Bucket Capacity 1.6-2.0m3New EXCAVATOR XE335DK XCMG 33ton Crawler Excavator Bucket Capacity 1.6-2.0m3New EXCAVATOR XE335DK XCMG 33ton Crawler Excavator Bucket Capacity 1.6-2.0m3
