Specifications
Brand Name :
CIVL
Model Number :
CIVL
Certification :
ISO,CCC
Place of Origin :
China
MOQ :
1
Payment Terms :
L/C, T/T
Supply Ability :
500 set/ sets per month
Delivery Time :
Within 35 days
Packaging Details :
In nude
Bucket capacity :
0.09m3
Operating Weight :
3500kg
Condition :
New
Moving Type :
Crawler Excavator
Color :
Yellow
Name :
Hydraulic Crawler Excavator
Description

Chinese Manufacture Cheap SD35U Mini Diggers Crawler Excavator Prices For Sale

Packaging & Delivery

Packaging Details

Wooden packaging

Port

Qingdao

Lead Time :

Quantity(Sets) 1 - 10 >10
Est. Time(days) 7 To be negotiated

SD35U Main parameters of a tailless excavator
Item Unit sunshide Cab
Engine model Yanmar3TNV88
Mechanical quality kg 2910<3100> 3060<3250>
Organism quality kg 2260 2410
Constant power network kw/min[ps/rpm] 21.4/2400[29.1/2400]
Standard bucket capacity m³ 0.09
Standard bucket width mm 430(500)
Total length mm 4560
Total width mm 1550
Total heigth mm 2520
Tail turning radius mm 775<855> 885<885>
Track shoe width mm 300
Track shoe length mm 2105
Track shoe center distance mm 1250
Walking speed km/h 4.6/2.5
Rotation speed min 9.3[9.3]
Steering angle degree left 80, right 50
Counterbalance of dug mm left 580,right 845
Ground pressure kpa[kg/cm²] 26.7[0.27]<28.4[0.29] 28.0[0.29]<29.7[0.30]
Equal breaking ability degree 30
Maximum excavation force kN[kg] 2055[1560]
Heigth mm 4840
Depth mm 2760
Range mm 5050

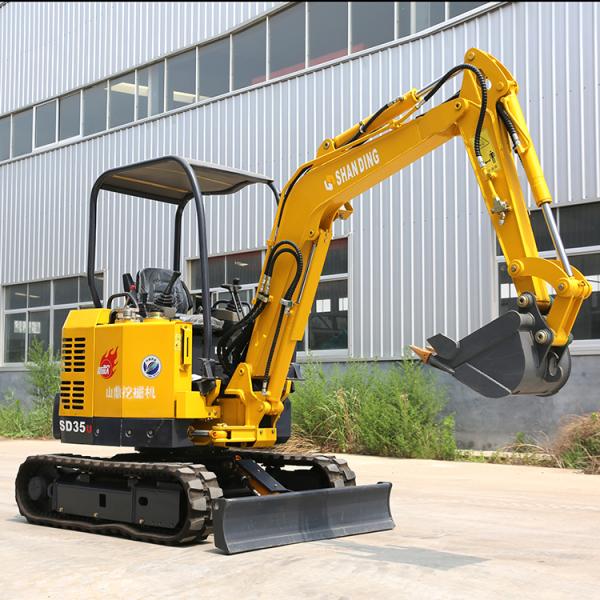

Below picture for you reference

SD35U Hydraulic Crawler Excavator / Yellow Diesel Engine Mini Diggers

SD35U Hydraulic Crawler Excavator / Yellow Diesel Engine Mini Diggers
