High Accurcy Portable 3 Phase Ac Power Source 40hz - 70hz Gf303d
High Accurcy Portable 3 Phase Ac Power Source 40hz - 70hz Gf303d
High Accurcy Portable 3 Phase Ac Power Source 40hz - 70hz Gf303d
High Accurcy Portable 3 Phase Ac Power Source 40hz - 70hz Gf303d
Specifications
Brand Name :
GFUVE
Model Number :
GF303D
Certification :
ISO9001, CE, UL
Place of Origin :
BEIJING CHINA
MOQ :
1SET
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Delivery Time :
2-3WEEKS
Packaging Details :
STANDARD EXPORT WOODEN BOX
NAME :
3 phase ac power source
FUNCTION :
TEST ENEGRY METER AND POWER DEVICE
ACCURCY :
0.05%
CURRENT :
0-120A
VOLTAGE :
0-500V
FREQUENCY :
40-70HZ
PHASE :
0-360.00
HARMONICS :
2-51TH
WEIGTH :
20KG
LCD :
7 INCH COLOR TFT LCD
Description

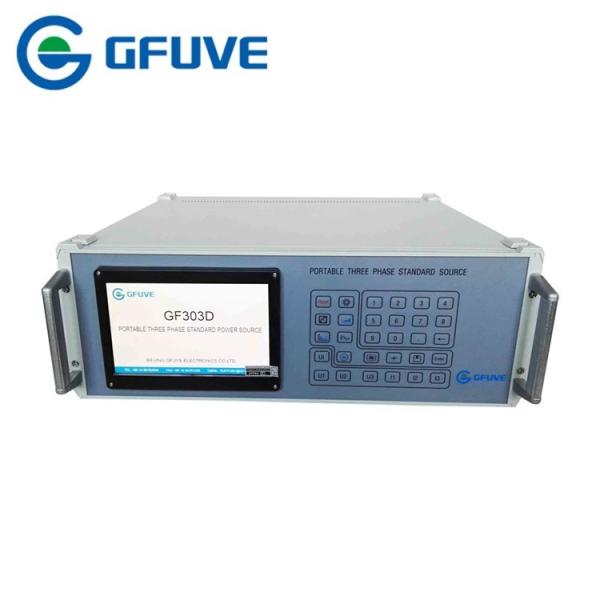

GF303D portable 3 phase ac power source with 120A current source and 500V voltage source

High Accurcy Portable 3 Phase Ac Power Source 40hz - 70hz Gf303d

It is suitable for power department, measuring department, quality control department, research units, and institutions of higher learning, and electric energy meter, power distribution terminals, power supply management, load control, power quality, reactive power compensation device and the production of enterprise etc.

The GF303D is a powerful and portable 3 phase ac power source. All test values are generated absolutely synthetically with a high degree of accuracy and stability. The source is available in 12 A, 24A or 120 A.
The GF303D three phase portable power source is a lightweight and portable current and voltage source based on newest technology and serves for solving this problem by simulating the required load conditions. Operation is performed by integrated 7“ touch screen or via keyboards.

FEATURES

  • To set up and take the load regulation of voltage, current, phase angle ,frequency and power factor etc; as a large current source, voltage source and power source
  • To set 2 ~ 31 times of the amplitude and phase harmonics, and it can be added to the base wave in every harmonic output
  • Voltage, current output a wide range, big power, high stability, waveform distortion degree is small
  • Strong with load ability, but it can take capacitive, sensibility, resistance of composite type load or load and load regulation is higher than 0.01%
  • To apply the 32 bit MPU + DSP + CPLD, powerful flexible
  • To use hardware PID, fast response, the change of load will not cause output volatility
  • Industrial frequency waves as high as 5000 points a week of the wave kneading, signal output without filter, precise output waveform, the harmonic output precision, harmonic distortion degree is small
  • Range switching automatically
  • To use software calibration, simple operation, stable and reliable
  • Display of vector diagram, adjustable to IEC387 OR DIN410
  • Big touch screen, 7-inch TFT color LCD display, English interface, operating simply
  • To have perfect over-current, over-voltage, heat, a shorts-and-opens, overload protection, failure detection automatically
  • With RS232 interface, and PC connection
  • To take place machine software, it can be output through the PC software program

PARAMETERS

Electrical parameters　
Accuracy class 0.05%, 0.1%
Power supply Single phase AC 85-265 V, frequency 50/60 Hz
AC Voltage output　
Range (U1, U2, U3 phase) 57.7V/100V/220V/380V; range switch automatically(Max 500V)
Adjust fineness 0.01% RG
Accuracy 0.05% RG
Stability <0.01% RG/120s
Distortion degree <0.3% (not capacitive load)
Output power 25VA
Full load regulation rate 0.01% RG
Full load regulation time Less than 1mS
Long-term stability ± 60 PPM/year
AC Current output　
Range (I1, I2, I3 phase) 0.2A, 1A, 5A, 20A, 100A; range switch automatically
Adjustment range (0-120)%RG
Adjust fineness 0.01% RG
Accuracy 0.05% RG
Stability <0.01% RG/120s
Distortion degree <0.3% (not capacitive load)
Output power 45VA
Full load regulation rate 0.01% RG
Full load regulation time Less than 1mS
Long-term stability ± 60 PPM/year
Power output　
Accuracy 0.05% RG
Stability 0.01% RG/120s
Phase angle　
Adjusting range 0°-359.99°
Resolution 0.001°
Accuracy 0.05°
Power factor 　
Adjusting range -1 ~ 0 ~ +1
Resolution 0.0001
Accuracy 0.0005
Frequency　
Adjusting range 40-65 Hz
Resolution 0.001 Hz
Accuracy 0.005 Hz
Temperature drift ± 0.5 PPM/°C
Long-term stability ± 4 PPM/year
Harmonic accuracy　
Harmonic phase 0°-359.99°
Harmonic phase accuracy < 0.01°
Harmonic set accuracy 0.1% (relative to the base wave ratings)
Mechanical parameters　
Dimensions (W×D×H) (mm) 500x600x175
Weight (kg) 27
Environmental conditions　
Working temperature 0°C to 40°C
Storage condition -30°C to -60°C
Relative humidity ≤ 85%

SELECTION GUIDE

NO. Accuracy Voltage range Current Range Weight
303D1201 0.10% 0-500V 0-120A 27KG
303D12005 0.05% 0-500V 0-120A 27KG
303D1201 0.10% 0-380V 0-12A 18KG
303D1205 0.05% 0-380V 0-12A 18KG
303D2401 0.10% 0-500V 0-24A 20KG
303D2405 0.05% 0-500V 0-24A 20KG
