Gf333 Three Phase Portable Energy Meter Test Equipment Class 0.02 200a 600v
Gf333 Three Phase Portable Energy Meter Test Equipment Class 0.02 200a 600v
Gf333 Three Phase Portable Energy Meter Test Equipment Class 0.02 200a 600v
Gf333 Three Phase Portable Energy Meter Test Equipment Class 0.02 200a 600v
Gf333 Three Phase Portable Energy Meter Test Equipment Class 0.02 200a 600v
Gf333 Three Phase Portable Energy Meter Test Equipment Class 0.02 200a 600v
Gf333 Three Phase Portable Energy Meter Test Equipment Class 0.02 200a 600v
Gf333 Three Phase Portable Energy Meter Test Equipment Class 0.02 200a 600v
Specifications
Brand Name :
GFUVE
Model Number :
GF333
Certification :
kema, ce,ul, epri, cnas
Place of Origin :
Beijing China
MOQ :
1set
Price :
20000-30000USD/sets
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
200sets/,month
Delivery Time :
1-2weeks
Packaging Details :
Standard export wooden box
Name :
portable three phase reference energy meter
Application :
electric lab and energy testing lab
Accuracy :
0.05%, 0.02%
Current range :
0-120, 0-200A
Voltage range :
0-600V
Frequency :
40-70Hz
Phase angle :
0-360.000
Weight :
10KG
Display :
color LCD
Harmonics :
2-31st
Description

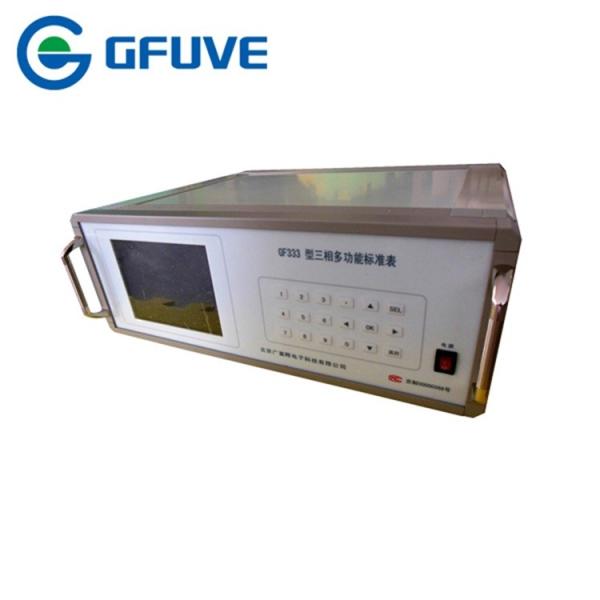

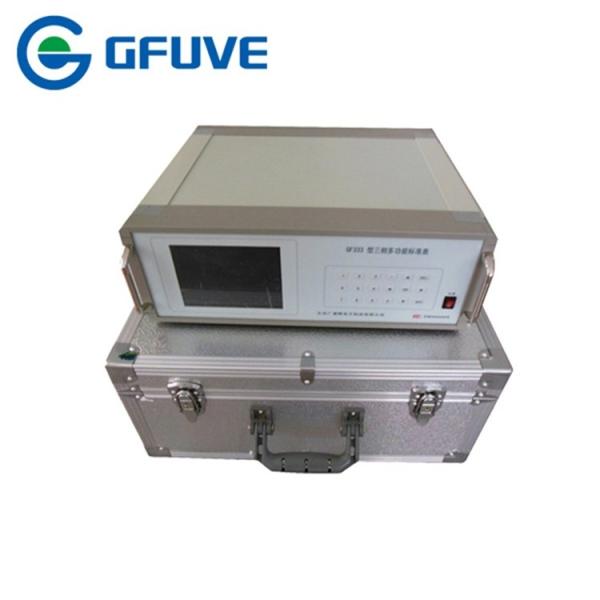

GF333 Portable three phase reference energy meter test equipment with class 0.02 200A 600V

GF333 three phase portable reference energy meter test equipment is a reference standard with the characteristics of wide-range, multifunction and high-precision. It has accuracy class of 0.02. By adopting techniques of DSP, embedded system and automatic temperature balancing and other compensation, it has not only advantages of light weight, small size, high precision, high performance, powerful function, original interface, ease-to-use, but also work stability.The product can be widely used in fields of electric energy measuring, electric energy laboratories and other relevant industry, not only in laboratories but also at the industrial field.

GF333 can be used as a calibration device standard meter, also as a testing calibrator in measurement test center of grid corporation, power company and measurement department in power plant, national levels of measurement mechanism, quality inspection departments, research institutes, tertiary institutions, industrial and mining enterprises, electric energy meter and electrical instrument production enterprises etc.

APPLICATION

1. Three phase energy standard in lab

2. Standard of reactive power compensation device

3. Energy meter test

4. Electric energy meter research and development enterprise

5. National Metrology Laboratory

6. Colleges and universities

FEATURES

  • High accuracy up to 0.05%
  • Wide testing range: voltage 5V-600V, current 1mA-200A
  • Testing type: 3 phase 4 wire, 3 phase 3 wire
  • Testing mode: active power, reactive power, apparent power
  • Harmonic analysis function
  • Waveform display function
  • Vector diagram function
  • Energy accumulating function
  • Internal pulse input port, testing meter’s error directly

PARAMETERS

Electrical parameters　
Accuracy 0.05%
Voltage supply 220V±10% or 110V±10%, 50/60Hz
Voltage measurement　
Range 5V-480V
Error ±0.02% (50V-600V), ±0.05% (5V-50V)
Display range 5.000000V-600.0000V
Harmonic 2nd-31st
Current measurement　
Range 1mA-200A
Error ±0.02% (0.2A-200A), ±0.05% (1mA-0.2A)
Display range 1.000000mA-200.0000A
Power measurement　
Active power ±0.02% (0.2A-200A)
±0.05% (0.01A-0.2A)
±0.1% (0.001A-0.01A)
Reactive power ±0.05% (0.2A-200A), ±0.1% (0.001A-0.2A)
Apparent power ±0.05% (0.2A-200A), ±0.1% (0.001A-0.2A)
Energy error　
Active energy ±0.02% (0.2A-200A)
±0.05% (0.01A-0.2A)
±0.1% (0.001A-0.01A)
Reactive energy ±0.05% (0.2A-200A), ±0.1% (0.001A-0.2A)
Apparent energy ±0.05% (0.2A-200A), ±0.1% (0.001A-0.2A)
Phase measurement　
Range 0°-360°
Error ±0.005°
Display range 0.0001°-359.99°
Frequency measurement　
Range 45-65Hz
Display range 45.0000-65.0000
Accuracy 0.002Hz
Power Factor measurement　
Range -1.0 ~ 0 ~ +1.0
Resolution 0.0001
Accuracy 0.0005
Energy pulse　
High frequency output(CH) 12000Hz
Low frequency output(CL) 5000Hz
Pulse ratio 1:1
Output level 5V
Input level 5V
Input frequency Max. 1MHz
Mechanical parameters　
Dimensions (W×H×D) (mm) 480×138×486
Weight (kg) 10
Environmental conditions　
Ambient temperature -10°C to 45°C
Influence of external fields ≤0.05 %/mT
Relative humidity 10%-80%
