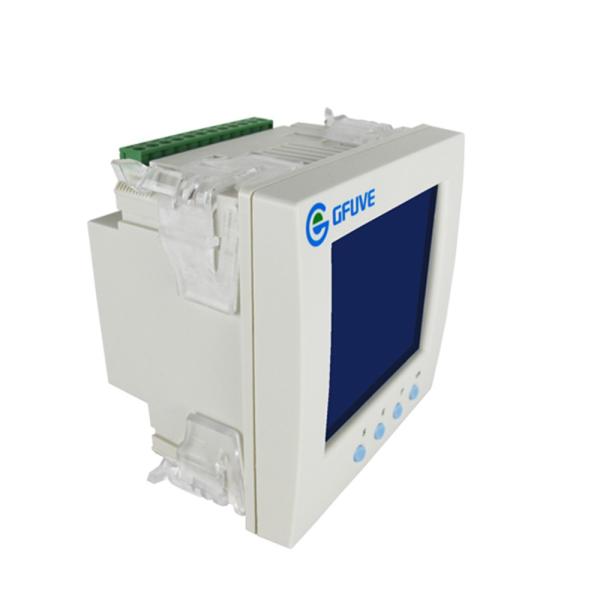

Intelligent Digital Power Meter High Accuracy Smart Ethernet Medium / Low Voltage
Intelligent Digital Power Meter High Accuracy Smart Ethernet Medium / Low Voltage
Specifications
Brand Name :
GFUVE
Model Number :
FU2200A - 1
Certification :
CE
Place of Origin :
Beijing , China (Mainland)
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
2000 Pieces per Month
Packaging Details :
Standard export carton
Power Supply (AC/DC) :
AC85-400V / DC85-330V
Harmonics :
2nd to 49th harmonics
Communication :
RS-485
Dimensions (L x W x H) (mm) :
96 x 96 x 12.8
Data logging :
Yes
communication protocol :
ModBus-TCP
Description

High Accuracy Three Phase Smart Ethernet Digital Power Meter With logger

The FU2200A three phase ethernet Digital Power Meter With logger rovide excellent value for monitoring power and energy management systems. The 2200A ethernet energy data logger may be used as data gathering devices for intelligent power distribution or plant automation systems. All monitored data is available via a standard digital RS485 communication port running the Modbus RTU protocol.

Applications

  • Metering of distribution feeders, transformers, generators, capacitor banks and motors.
  • Medium and low voltage systems.
  • Commercial, industrial, utility.
  • Power quality analysis.

Electrical parameters
Power Supply (AC/DC) AC85-400V / DC85-330V
Power consumption: <4VA
Measurement Parameters Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF;
Active Power(W); Reactive Power(Q); Apparent Power(S),
2nd to 49th harmonics(option)
Harmonics Total harmonics ratio of phase-voltage
Total harmonics ratio of current
2nd to 49th harmonics ratio of phase-voltage
2nd to 49th harmonics ratio of current
Maximum Value & Minimum Value Voltage, current, frequency, active power, reactive power, apparent power,demandP,demandQ, demandS.
Computation Forward active power energy
Reverse active power energy
Forward active power energy
Reverse reactive power energy
Measuring Range 0-400V, 0-6A, 45-65Hz, -1 ~ 0 ~ 1
Measuring Accuracy Voltage: 0.5%RD±0.05%FS
Current: 0.5%RD±0.05%FS
Active Power: 0.5%RD±0.05%FS
Reactive Power: 1.5%RD +0.05%FS
Apparent power: 0.5%RD +0.1%FS
Power Factor: 0.5%RD
Frequency: 0.05%RD
Active Energy: 0.5%
Maximum Demand Ia, Ib, Ic, ΣPtotal, ΣQtotal, ΣStotal, 15 minutes
Display Blue back-lit LCD Display
5 display figures
4 operation keys
Communication Support RS-485 interface port, 32 (128) Networking
ModBus-TCP/IP SNMP communication protocol
Ethernet 10/100M port (RJ45)
Memory 2M onboard memory,can be extended to 16M.
Data looger interval can set by end users from 1min to 60min.The default is 15min.
You can read the data through a PC, also you can select the data to diaplay and store from software.
Programmable Measuring system: 3P4W/3P3W etc
Transformation Ratio: PT 1-10000; CT 1-10000
Energy Pulse Provides active & reactive energy pulse output
Pulse parameters can be choosed
Range: 0.1-10000kWh/kvarh
Dry contact output (1Ax100V)
Connection Mode 3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P3W, 1P2W
Baud Baud: 1200-57600, Standard 38400
Mechanical parameters
Dimensions (L x W x H) (mm) 96 x 96 x 12.8
Mounting Panel mounting
Trepanning: 92x92mm
The thickness of installation: 51mm
Environmental conditions
Temperature -5 to +50 °C
Humidity 20%-95%RH, without condensation
Warranty Three years warranty
