Panel Digital Power Meter , RS485 Three Phase Power Meter DC 4-20mA Port 3P4W
Panel Digital Power Meter , RS485 Three Phase Power Meter DC 4-20mA Port 3P4W
Panel Digital Power Meter , RS485 Three Phase Power Meter DC 4-20mA Port 3P4W
Panel Digital Power Meter , RS485 Three Phase Power Meter DC 4-20mA Port 3P4W
Specifications
Brand Name :
GFUVE
Model Number :
FU2200
Certification :
CE
Place of Origin :
Beijing , China (Mainland)
MOQ :
1 Piece
Price :
Negotiable
Payment Terms :
Western Union, T/T, L/C
Supply Ability :
2000 Pieces per Month
Packaging Details :
Standard export carton
Power Supply (AC/DC) :
AC85-265V / DC85-330V, DC18-90V
Measuring Range :
30-600V, 0-6A, 45-65Hz, -1 ~ 0 ~ 1
Connection Mode :
RS-485 interface port support, 32 (128) Networking, ModBus-RTU communication protocol
Harmonics :
3rd-19th
Accuracy class :
0.5s
Data collection (expansion) :
Each FM-K2 module can collect 2-ways dry contact counting
Description

High Quality RS485 DC 4-20mA Port 3P4W Three Phase Stop Digital Power Meter

FU2200 is a power analyzer and meter, It can measure and display all the electrics parameters as well as harmonics content, Four modules can be plugged-in together: RS-485 communications, digital input/output, energy pulse, and DC 4~20mA analog output, So as to meet all kinds of demands.

Electrical parameters 　
Power supply (AC/DC) AC85-265V / DC85-330V, DC18-90V (optional)
Power consumption: <4VA
Measurement parameters Voltage (Ph-N); Voltage (Ph-Ph); Current; Frequency; PF; Active Power(W); Reactive Power(Q) ; Apparent Power(S), 3rd-19th harmonics
Harmonics Total harmonics ratio of phase-voltage
Total harmonics ratio of current
3rd-19th harmonics ratio of Phase-voltage (RS485 output)
3rd-19th harmonics ration of current (RS485 output)
Maximum value Max. value for voltage/current
Max. value for active power
Max. value for reactive power
Max. value for apparent power
Computation Forward active power energy
Reverse active power energy
Forward active power energy
Reverse reactive power energy
Measuring range 30-600V, 0-6A, 45-65Hz, -1 ~ 0 ~ 1
Measuring accuracy Frequency: 0.1%
Electric energy: 0.5%, 1.0%
Voltage : 0.2%±0.1V
Current : 0.2%±0.001A
Power : 0.5% ±0.4W
Power factor : 0.5% ±0.001

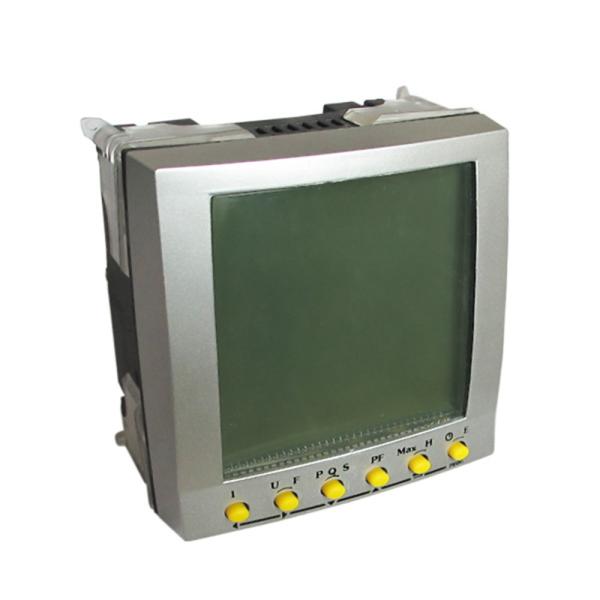

Display Wide screen angle; Light blue back-lit LCD display; 5 display figures; 6 operation keys.
Communication (expansion) Support RS485 port with expansion module FM-485, Modbus-RTU communication protocol. 32 (128) meters are connected as a network.
Programmable Measuring system: 3P4W/3P3W etc.
Transformation ratio : PT,CT.
Communication:
Address: 1-247; Baud: 1200-19200; Parity bit: N/E/O
Energy: reset
Energy pulse (expansion) FM-E2 provides active & reactive energy pulse output. 6 pulse parameters can be choose. Range: 0.1-10000kWh/kvarh; Dry contact output (1AX100V).
Data collection (expansion) Each FM-K2 module can collect 2-ways dry contact counting
Control (expansion module) Each FM-K2 provides 2 relay contact outputs, which can be controlled by communication or the measured parameters.
Analog output (expansion module) Each FM-A20 module provides 2 ways of DC 4-20mA outputs, the function-relations can be set according to the measured parameters.
Connection mode 3P4W, 3P4W BAL, 3P3W, 3P3W BAL, 1P2W, 1P3W
Communication RS485 Port, Baud: 1200-57600, Standard 38400;
Ethernet Port (option)

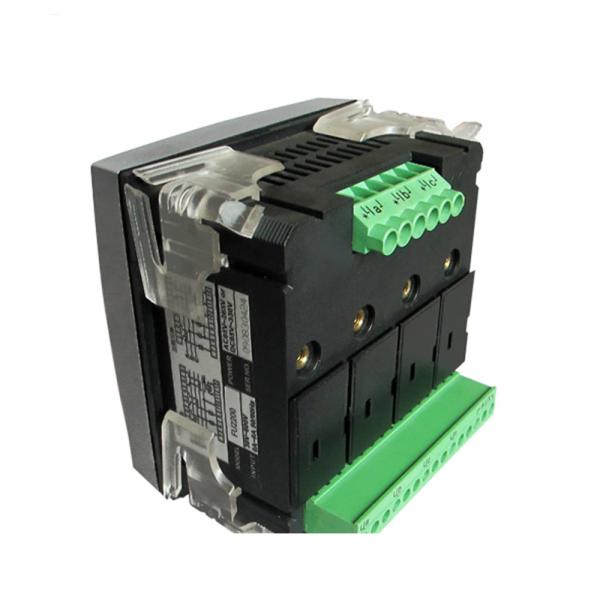

Mechanical parameters 　
Dimensions (mm) Mounting panel: 96x96
Thickness: 20
Depth: 60 (without expansion module)
80 (without expansion module)
Mounting Panel mounting
Trepanning: 92x92mm
Environmental conditions 　
Temperature -25 to +50°C
Humidity 20%-95%RH, Without condensation
