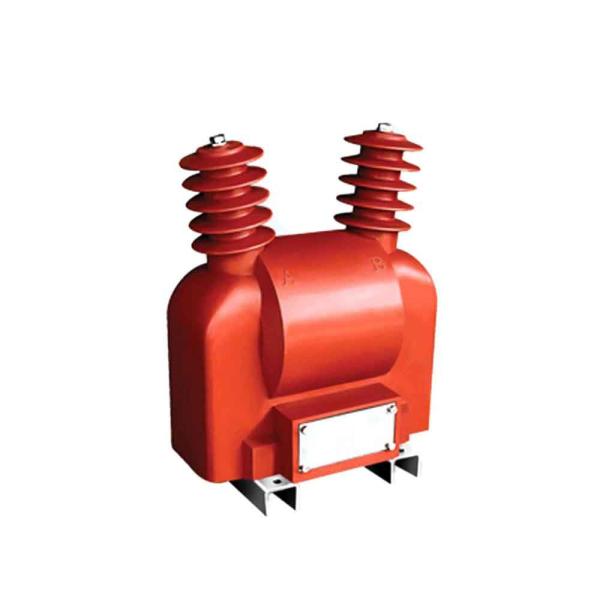

20KV Medium Voltage Outdoor Voltage Transformer Epoxy Resin Casting
20KV Medium Voltage Outdoor Voltage Transformer Epoxy Resin Casting
Specifications
Brand Name :
GFUVE
Model Number :
JDZW-20
Certification :
CE, ISO9001
Place of Origin :
BEIJING
MOQ :
1PC
Price :
1000-1500USD/PC
Payment Terms :
L/C, D/A, D/P, T/T, Western Union, MoneyGram
Supply Ability :
3000PCS/MONTH
Delivery Time :
2weeks
Packaging Details :
Standard export wooden box
Name :
Instrument Voltage Transformer
Usage :
outdoor
Application :
Voltage measurement
Voltage level :
20KV
Material :
Resin & Silicon steel
Class :
0.2s, 0.2, 0.5
Burden :
10-250VA
Weight :
56KG
Standard :
IEC61869
Color :
red
Description

Theory


Potential transformer or voltage transformer gets used in electrical power system for stepping down the system voltage to a safe value which can be fed to low ratings meters and relays. Commercially available relays and meters used for protection and metering, are designed for low voltage. This is a simplest form of potential transformer definition.

A voltage transformer theory or potential transformer theory is just like a theory of general purpose step down transformer. Primary of this transformer is connected across the phase and ground. Just like the transformer used for stepping down purpose, potential transformer i.e. PT has lower turns winding at its secondary.

The system voltage is applied across the terminals of primary winding of that transformer, and then proportionate secondary voltage appears across the secondary terminals of the PT.

Applications


This model of instrument voltage transformer includes two versions: JDZW-20 and JDZXW-20G. The units are cast in epoxy resin and fully enclosed. The units are suitable for electric systems of rated frequency of 50/60Hz and rated voltage of 24kV and below. They are used in indoor or outdoor service conditions. The products are designed in accordance with Standards IEC60044-2, IEC61869-3 and ANSI/IEEE C57.13.

Features


New magnetic material using

protection or measurement windings

Measurement accuracy is 0.2s higher.
Phase shift is stability
Designed life is 30years long

PARAMETERS

Model Rated Voltage Ratio(KV) Accuracy class and Accuracy class combination rated secondary output (VA) Limited output (VA) Rated insulation level (KV) Surface creepage distance (mm) Once fuse(A) Wt(KG)
JSZW-20 20000/100 0.2---40
0.5---100
1---250
3---500		 800 24/65/125 860 0.2 56
20000/220
20000/100/100 0.2/0.2---20/20
0.2/0.5---20/30
0.5/0.5---50/50		 400/400
20000/220/220 500/800
JDZXW-20G
20000/√3
100/√3 100/√3		 0.2/6P(3P)---30/100
0.5/6P(3P)---60/100
1/6P(3P)---150/100
3/6P(3P)---250/100		 600
20000/√3
100/√3 100/√3 100/√3		 0.2/0.2/6P(3P)---15/15/100
0.2/0.5/6P(3P)---15/15/100
0.5/0.5/6P(3P)---40/40/100		 300/300
