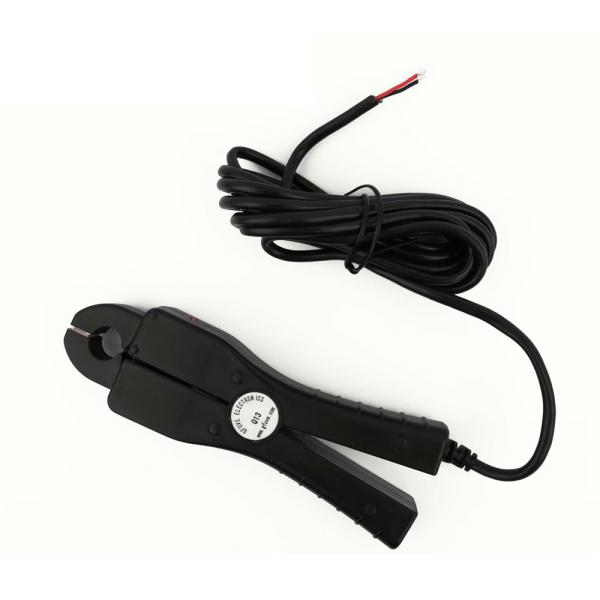

Inductive Current Clamp CT 120 Amp For AC Measurement Brand New

The GFUVE Current Clamp CT Q13-3 allows current measurements without cutting off the circuit by clipping onto the current conductor. It can measure AC current via working with DMMs, data loggers, power meters, power quality analyzer. Clamp CT Q13-3 is a high-safety current clamp with CE certification.

Features

Measurement range of 1mA to 120A AC

Improved ergonomic design and easy operation

High content nickel metal core

Low phase shift for power measurement

Small, compact size

Jaw opening accommodates conductors up to 13mm diameter

Designed for DMMs, loggers, recorders and oscilloscopes

40Hz to 10kHz response

1mA/A AC output signals

Designed to EN 61010, 600V CAT III safety standard

UL, CE mark

Applications

Power quality measuring

Measuring around cable bundles

Power load monitoring

Waveform analysis

Energy meter calibrator

Measuring in breaker panels

HVAC

Residential and commercial sites

Data logging/recording

Parameter

FAQ, following questions will help you to select the matched probe for your applications.

1. Please determine if you are measuring AC or DC?

GFUVE current clamp CT Q13-3 is for AC measurement.

2. What is the maximum current you will measure?

Clamp CT Q13-3 maximum current is 120A.

3. What size conductor will you clamp onto? This parameter determines the probe jaw size needed.

Q13-3 can clamp conductor is φ13mm

4. What type of probe output do you need or can you work with (mA, mV, A, AC, etc.)?

Q13-3 can customize output with mA.

5. What is the working voltage of the conductor to be measured?

GFUVE clamp CT should be used below 600 volts

6. What type of termination do you need: jacks, leads or BNC?

Q13-3 standard has 2.5 meters leads. We can offer jacks or BNC… as options.

7. If you cannot find information you need or would like assistance, contact us today. We have designed many more probes than those shown in this catalog, and we manufacture in Beijing, China.
