Standard Power Source Instrument Test Equipment Excellent Working Performance
Standard Power Source Instrument Test Equipment Excellent Working Performance
Specifications
Brand Name :
GFUVE
Model Number :
GF6019
Certification :
CE,ISO,IEC
Place of Origin :
China
MOQ :
1Set
Price :
US$8000~US$12000/Set
Payment Terms :
Western Union, T/T
Supply Ability :
70Sets/Month
Delivery Time :
13days upon receipt of firm order
Packaging Details :
Aluminium alloy box
GF6019 :
DC Standard power source
Display :
5.6 inch TFT color LCD screen
Accuracy class :
0.05% 0.02%
Power supply :
Single phase AC 220V±10% or 110 V±10%
Frequency :
50/60 Hz
DC Power output stability :
0.01% RG / 1 min
Description

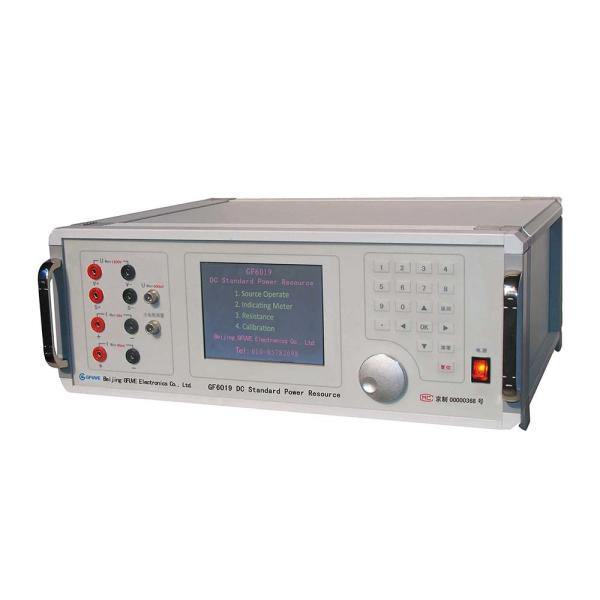

GF6019 DC Standard Power Source/DC Calibrator

(Accuracy class: 0.05% or 0.02%)

Application

It is suitable for electric power corporation measuring and testing center, power company and power plants measuring department, national levels measuring and testing institutions, also suitable for railway, petroleum, chemical industry and large industrial and mining enterprises, etc.

Functions and Features

  1. Calibrating DC voltmeter, ammeter, power meter and DC transducer
  2. Automatic range, used for testing the digital meter; Manual range, used for testing the DC indicator

3. As DC current source, voltage source, DC power source; it can output the standard DC voltage, DC current, DC power

4. 5.6 inch TFT color LCD screen, English display, easy to operate

5. It is built-in indicating meter and DC standard resource verification procedures

6. A wide range, covering for instrument often dosage limit

7. Use software calibration, stable and reliable

8. With RS232 interface, and computer software component semi-automatic verification system, data management, inquiry and print the inspection certificate and the inspection records.

Electrical parameters 　
Accuracy class 0.05%, 0.02%
Power supply Single phase AC 220V±10% or 110 V±10%, 50/60 Hz
DC Voltage output 　
Range 100mV, 300mV, 1V, 3V, 10V, 100V,
300V, 600V, 1000V, (max 1000V)
Adjustment range (0-120)% RG
Adjustment resolution 0.01% RG, 0.1% RG, 1% RG, 10% RG
Accuracy 0.012% RD + 0.008% RG(≥1V); 0.03% RD + 0.02% RG(＜1V)
Stability 0.005% RG / 1 min(≥1V); 0.01% RG / 1 min(＜1V)
Distortion degree Better than 0.1% (not capacitive load)
Load Capacity Max 25VA
Ripple contents ≤1%
Full load regulation rate Less than 0.01% RG
Full load regulation time Less than 10mS
Temperature drift 8 PPM/°C
Long-term stability 60 PPM/year
DC Current output 　
Range 10uA, 30uA, 100uA, 300uA, 1mA, 3mA, 10 mA, 30mA,
100mA, 300mA, 1A, 3A, 10A, 30A( max 36A)
Adjustment range (0-120)% RG
Adjustment resolution 0.01% RG, 0.1% RG, 1% RG, 10% RG
Accuracy 0.03% RD + 0.02% RG
Stability 0.01% RG/1 min
Distortion degree Better than 0.1% (not capacitive load)
Load Capacity 48VA
Ripple contents ≤1%
Full load regulation rate Less than 0.01% RG
Full load regulation time Less than 10mS
Temperature drift 8 PPM/°C
Long-term stability 60 PPM/year
DC Power output 　
Accuracy 0.05%
Stability 0.01% RG / 1 min
Mechanical parameters 　
Dimensions (W×D×H) (mm) 440x360x160
Weight (kg) 12
Environmental conditions 　
Operating temperature 0°C to 40°C
Storage conditions -30°C to 60°C
Relative humidity ≤85%
