Large Current 1000A Primary Injection Test Equipment CT PT Analyzer 5KVA Capacity
Large Current 1000A Primary Injection Test Equipment CT PT Analyzer 5KVA Capacity
Large Current 1000A Primary Injection Test Equipment CT PT Analyzer 5KVA Capacity
Large Current 1000A Primary Injection Test Equipment CT PT Analyzer 5KVA Capacity
Specifications
Brand Name :
GFUVE
Model Number :
TEST-901
Certification :
CE ISO
Place of Origin :
CHINA
MOQ :
1 Set
Payment Terms :
Western Union, T/T, L/C, MoneyGram
Supply Ability :
1000Sets/Month
Delivery Time :
7 days
Packaging Details :
Standard export case
Name :
CT PT Ana;yzer
Accuracy :
Accuracy
Current Output (AC) :
1000A·5V or 500A·10V
Capacity :
5KVA
Range :
0-1100A
Resolution :
0.1A
Description

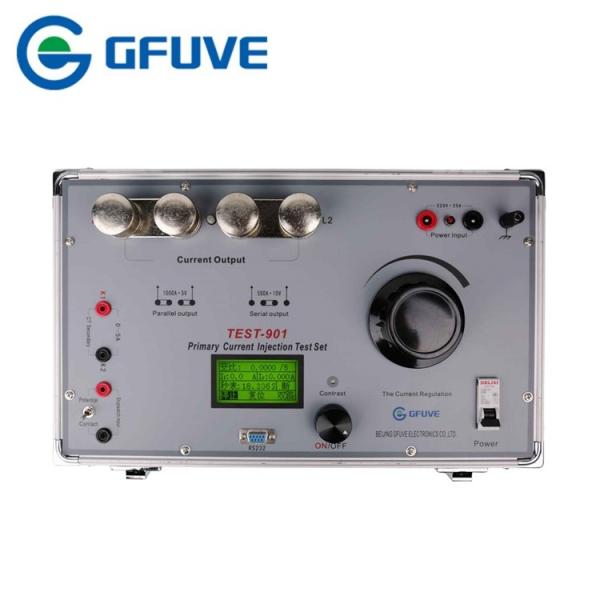

TEST-901 Large Current 1000A Primary Current Injection Test Set

TEST-901 primary current injection test set adopts ARM Chip to control its output process and large capacity of toroidal transformers. It is equipped with LCD display and current meter; it can show primary current value, second current value, turn ratio and the action time. Packing is used as aluminum alloy body with PC panel. TEST-901 is mainly applied to CT turn ratio testing in the power system and contact resistance test which need large current.

High-current generator is a necessary equipment in all walks of life in electrical commissioning needs

large current place, used in power plants, substations, electrical manufacturers and scientific research,

laboratory and other units, belonging to short-term or intermittent working system, It has a small size, light

weight, good performance, easy to use and maintenance features.

PARAMETERS

Electrical parameters　
Accuracy ±0.5%
Power Supply(AC) 220V±10%·25A, 50Hz/60Hz or
110V±10%·50A, 50Hz/60Hz
Current Output (AC) 1000A·5V or 500A·10V
Capacity 5KVA
The current output waveform distortion ≤5%
Dual protection overload electronic protection and software protection
Primary current　
Range 0-1100A
Resolution 0.1A
Accuracy <0.5%
Secondary measurement　
Range 0-6A
Resolution 0.001A
Accuracy <0.5%
Current duration　
1000A range 1000A 2-3minutes
500A 3-6minutes
500A range 500A 2-3minutes
With timer
Range 0.0001～999.99S
Resolution 0.001S
Accuracy <0.5%±5 words
Mechanical parameters　
Dimensions (W×D×H) (mm) 430×260×260
Weight(kg) 25
Environmental conditions　
Temperature -10°C to 40°C
Relative humidity ≤80%
