GFUVE LZCK-36 Outdoor Instrument Ct Current Transformer 55mm Inner Diameter For Ac Power System
GFUVE LZCK-36 Outdoor Instrument Ct Current Transformer 55mm Inner Diameter For Ac Power System
GFUVE LZCK-36 Outdoor Instrument Ct Current Transformer 55mm Inner Diameter For Ac Power System
GFUVE LZCK-36 Outdoor Instrument Ct Current Transformer 55mm Inner Diameter For Ac Power System
Specifications
Brand Name :
GFUVE
Model Number :
LZCK-36
Certification :
IEC60044-1; IEC 61869-2; NTC 2205; GB1208-2006; ANSI C57.13
Place of Origin :
China
MOQ :
3pcs
Price :
Negotiable
Payment Terms :
L/C, T/T, Western Union,Paypal
Supply Ability :
5000pcs/month
Delivery Time :
2-3 weeks
Packaging Details :
standard and safe
Color :
Black
Inner diameter :
36mm
Ratio :
1000A/5A or 1000A/1A
Accuracy :
0.5S, 0.5%, 1%, 3%
Dimensions(mm) :
128×120×85.5
Weight(kg) :
1.5
Operating temperature :
-40°C to +70°C
Rated frequency :
50/60Hz
Cable :
2.5m
Description

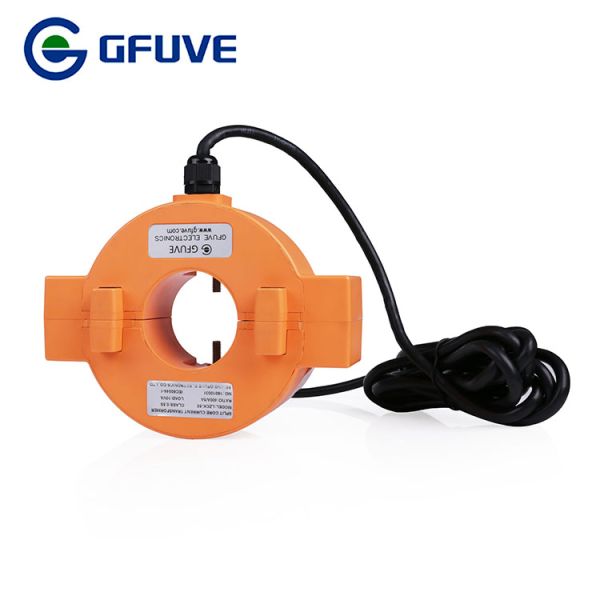

LZCK-36 OUTDOORS SPLIT CORE CURRENT TRANSFORMER

Description


The model LZCK-36 outdoor split core current Transformer are applicable for AC power system 35kV and measurement of current
of power supply equipment below 10KV also can be used for microcomputer protection. And the Transformer is compatible
with Distribution Transformer Monitor and provides high quality power parameter quality signal for the monitor to control,
measure and monitor the energy quality and so on in grid system. The LZCK-36 split core current transformer applies to the outdoor
electric power system with frequency 50Hz or 60Hz, its ingress protection is IP68. This type of current transformer employs
imported silicon steel which with high permeability as magnetic material, has the characteristics of Small magnetic circuit loss and
can be split, its semicircular core and secondary windings employ high quality epoxy resin vacuum, casting in plastic-case(ABS or PC)
which is high accuracy, fifire-proof, ultraviolet-proof and explosion-proof, maintenance-free, stable and reliable performance, easy installation, etc.

GFUVE LZCK-36 Outdoor Instrument Ct Current Transformer 55mm Inner Diameter For Ac Power System

Technical parameters　
Standards
IEC60044-1; IEC 61869-2; NTC 2205; ANSI/IEEE C57.13
Accuracy Class
0.5S, 0.5%, 1%, 3% (IEC61869 standard)
Range of primary rated current 100-1000A
Range of Rated load ≤10VA
Rated frequency 50/60Hz
Rated secondary current 5A or 1A
Rated short-time thermal current 40kA, 1S
Rated continuous thermal current 150%I1n
Secondary winding power frequency withstand voltage 3kV, 1min
Safety Factor Rating (FS) <10
Output signal 1A, 5A, 333mV, 1V or 5V(customized)
Insulation Class
 E
Flame retardant ABS and UV plastic shell inside, jaw waterproof apron.
Mechanical parameters　
Aperture (mm) Φ36
Dimensions (W×D×H) (mm) 128×120×85.5
Length of Cable
2.5 M(standard), 5M, 10M or customized
Cable information
2*4mm² ,Voltage: 450/750V
Weight (kg) 2
Color
Black, orange or customized
Working conditions　
Operating temperature -40°C to +70°C
Storage temperature -40°C to +70°C
Ingress Protection
IP68 ( IEC 60529)
Environment outdoors or indoors
The Height of above sea level 0- 3000m
Conditions No existence of severely begrimed, erosive and radioactive gas in the air. Continuous working under the rated current is allowed.

TECHNICAL DATA

Type
LZCK-36(2.5m cable)
Purpose
Measuring current transformer
Accuracy class and rated load(VA)
Ratio
I1/I2
 0.5S 0.5 1 3
100/1 1.5 2.5
150/1 1.5 2.5
200/1 2.5 2.5 2.5 3
250/1 2.5 2.5 2.5 3
300/1 2.5 2.5 2.5 5
400/1 5 5 5 5
500/1 5 5 5 5
600/1 5 5 5 5
100/5 2.5 2.5
150/5 2.5 2.5
200/5 2.5 2.5 2.5 3
250/5 2.5 2.5 2.5 5
300/5 5 5 5 5
400/5 10 10 10 10
500/5 10 10 10 15
600/5 10 10 10 15
800/5 10 10 10 15
1000/5 10 10 10 15

SELECTION GUIDE

Model Primary rated current Rated load Aperture (mm) Description (mm) Weight (kg) Material Water-proof
LZCK-55 100-1500A ≤10VA φ55 180×138×52 2 PC IP65
LMCK185-10 300-3000A ≤25VA φ185 350×283×55 4.5 PC IP65
LZCK310-10 300-600A ≤10VA φ50 φ50 x φ110 x 32 1 Resin silicon case (option)
LZCK322-10 30-600A ≤10VA φ50 φ50 x φ110 x 52 1.6 Resin silicon case (option)
LZCK350-10 20-600A ≤25VA φ50 φ50 x φ110 x 105 3.1 Resin silicon case (option)
LZCG530-10 30-600A ≤20VA φ45 φ45 x φ120 x 65 2.1 Resin silicon case (option)

PACKING & DELIVERY

GFUVE LZCK-36 Outdoor Instrument Ct Current Transformer 55mm Inner Diameter For Ac Power System

SERVICE

GFUVE LZCK-36 Outdoor Instrument Ct Current Transformer 55mm Inner Diameter For Ac Power System

ABOUT US

GFUVE LZCK-36 Outdoor Instrument Ct Current Transformer 55mm Inner Diameter For Ac Power System

Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, energy meter test equipment, reference standard meter, phantom load power source, relay test set, CT PT analyzer, transformer test, High voltage test set, electrical calibrator, power analyzer and intelligent digital meter, transducer, current probe, split core ct, current transformer, voltage transformer and handheld terminal etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.

F&Q

1. who are we?
We are based in Beijing, China, start from 2008,sell to Domestic Market(7.14%),South Asia(7.14%),Southern Europe(7.14%),Northern Europe(7.14%),Central America(7.14%),Western Europe(7.14%),Eastern Asia(7.14%),Mid East(7.14%),Oceania(7.14%),Africa(7.14%),Southeast Asia(7.14%),Eastern Europe(7.14%),South America(7.14%),North America(7.14%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
energy meter calibration,Relay test set,ct analyzer,Split core current transformer,Power quality analyzer

4. why should you buy from us not from other suppliers?
We have more than 16 years research experience in the electric power industry. meter test equipment, phantom load power source, ct pt analyzer, relay test set, HV ammeter recorder, power meter, power quality analyzer, transducer, split core ct, ct & pt.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish
