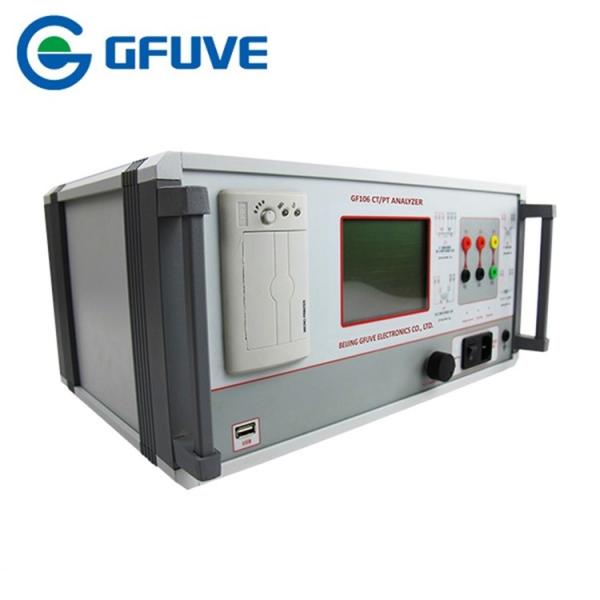

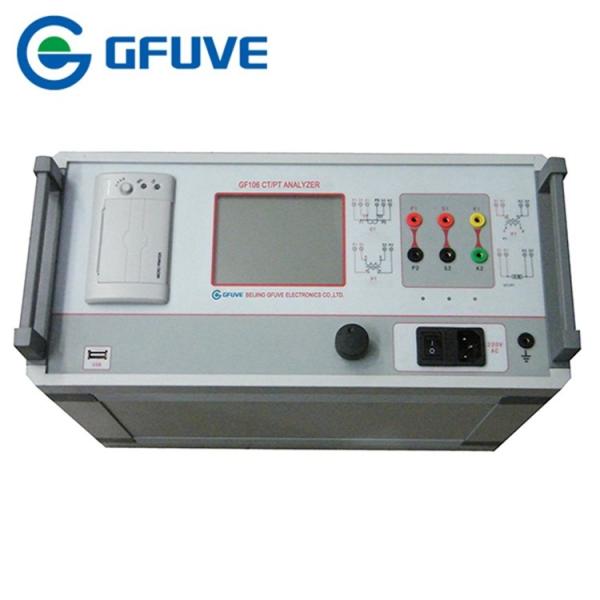

GF106 CT PT Analyzer Ct Pt Testing Equipment Type Printer Portable Accuracy 0.05%
GF106 CT PT Analyzer Ct Pt Testing Equipment Type Printer Portable Accuracy 0.05%
GF106 CT PT Analyzer Ct Pt Testing Equipment Type Printer Portable Accuracy 0.05%
GF106 CT PT Analyzer Ct Pt Testing Equipment Type Printer Portable Accuracy 0.05%
Specifications
Brand Name :
GFUVE
Model Number :
GF106
Certification :
CE
Place of Origin :
China
MOQ :
1SET
Payment Terms :
T/T, MoneyGram, Western Union
Supply Ability :
100set/month
Packaging Details :
Wooden box
Accuracy :
0.05%, 0.1%
Power supply :
AC 220V±10% or AC 110V±10%, 50/60Hz
Automatic frequency variation range :
0.1-60Hz
CT/PT phase error measurement :
Resolution 0.01min
CT ratio error measurement :
Range 1-30000
PT ratio error measurement :
Range 1-10000
Description

GF106 CT PT TESTER

FEATURES

  • Steady and transient state characteristic tests of various types of CT/PT
  • The use of advanced power technology, the test knee point reaches up to 40kV
  • No external other auxiliary equipment, stand-alone to complete all test items
  • CT test, easy to test, all the tests are using the same wire connection except the load test
  • It carries with thermal printer, so it can print test results on site
  • Parameters such as knee point current and voltage
  • Parameters such as 10% error curve, 5% error curve
  • The device can store 3000 groups of test data which would not be lost if the device is power off.
  • The data can be displayed and analyzed after the test, or transferred to PC through USB disk and produce a Word file report
  • Portability: weight < 12kg

FUNCTION

I. Current Transformer (CT) II. Voltage Transformer (PT)
1. Magnetization curve 1. Excitation characteristic test
2. Transformation ratio test 2. Transformation ratio test
3. Polarity 3. Polarity
4. 5% and 10% error curve 4. Ratio error, phases
5. Current Injecting 5. Degauss
6. Degauss 6. Calculation of knee point value
7. Ratio error, phases 7. Actual secondary load (burden), test (burden)
8. Automatic calculation of excitation knee point value 8. Resistance test
9. Actual secondary load test (burden) (load test)　
10. Resistance test　
11. Secondary winding time constant (Ts)　
12. Remanence coefficient (Kr)　
13. Transient dimensioning factor (Ktd)　
14. Peak instantaneous error (Er)　
15. Magnetizing inductance (LU)　

PARAMETERS

Electrical parameters
Accuracy 0.05%, 0.1%
Power supply AC 220V±10% or AC 110V±10%, 50/60Hz
Excitation output voltage 0-220Vrms
Excitation output current 0-5Arms (20A peak-value)
Automatic frequency variation range 0.1-60Hz
Equivalent excitation voltage ≤5000V
Accuracy ≤0.5% (0.2%RD+0.3%RG)
Secondary winding DC resistance measurement Range 0.1-300Ω
Accuracy ≤0.5% (0.2%RD+0.3%RG)
Secondary actual load measurement Range 5VA-1000VA
Accuracy ≤0.5% (0.2%RD+0.3%RG)±0.1VA
CT/PT phase error measurement Accuracy ±4min
Resolution 0.01min
CT ratio error measurement Range 1-30000
Accuracy ≤0.5%
PT ratio error measurement Range 1-10000
Accuracy ≤0.5%
Standards　
Reference standards GB1207-2006, GB1208-2006, GB16847-1997
IEC60044-1, IEC60044-6, IEC61869-2-2012
Safety standards GB 4793.1-2007
EMC EMC standard 89/336/EEC
FCC Subpart B of Part 15 Class A
IEC 1000-4-2/3/4/6
Mechanical parameters　
Overall dimension (L x W x H) (mm) 410 x 250 x 300
Weight (kg) ≤10
Environmental conditions　
Relative humidity 90RH%
Operating temperature -10°C to +40°C
Altitude ≤2000m

MAIN FUNCTIONS

The test items mainly include　
Steady Transient
excitation characteristic secondary winding time constant (Ts)
transformation ratio remanence coefficient (Kr)
polarity transient dimensioning factor (Ktd)
ratio error peak instantaneous error (Er)
phases magnetizing inductance (LU)
5% and 10% error curves other parameters
resistance　
secondary load　
