Specifications
Brand Name :
GFUVE
Model Number :
GF112
Certification :
CE
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
100 sets 3-4 weeks
Delivery Time :
5-8 work days
Active power measurement accuracy :
0.3%, 0.5%
Energy measurement accuracy :
0.3%, 0.5%
Dimensions (W×D×H) (mm) :
185×67×30
Description

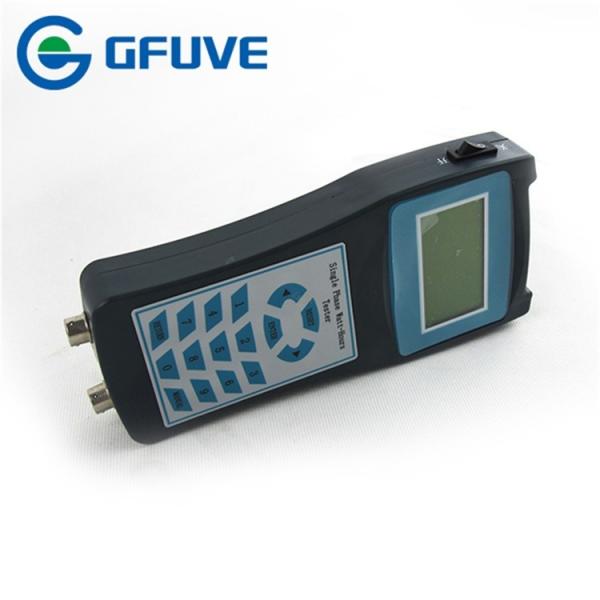

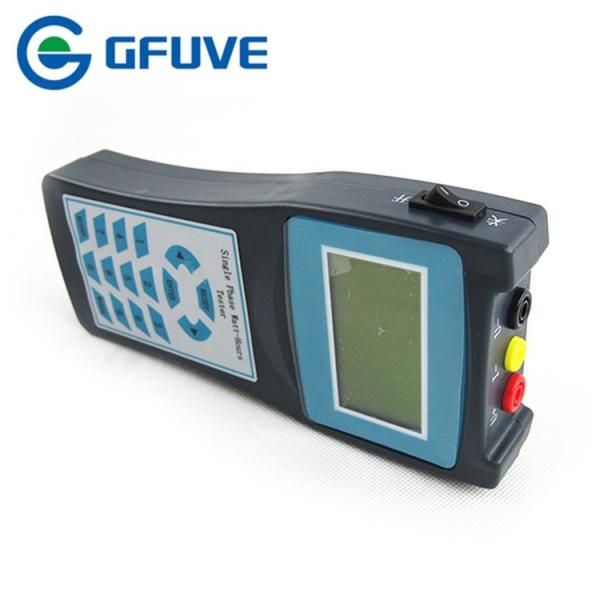

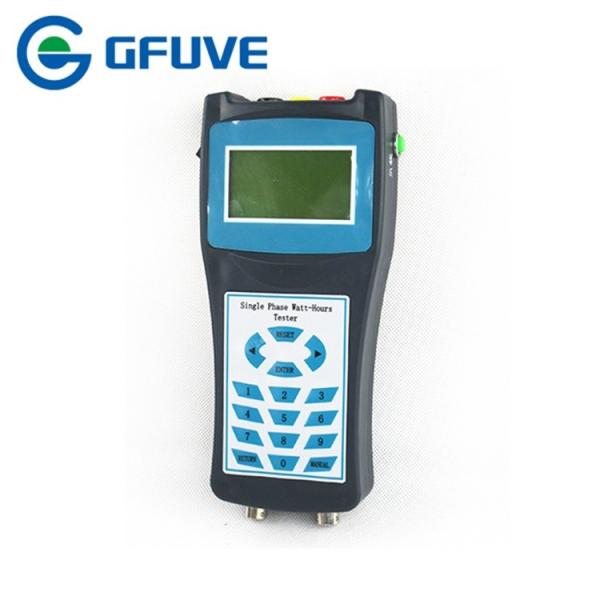

GF112 PORTABLE SINGLE PHASE ELECTRIC METER TESTER

FEATURES

  • Field test kinds of inductive, electronic single phase meter
  • Measurement error, voltage, current, power, power factor and frequency at site
  • LCD color display, English menu, direct viewing and convenient
  • Equip with RS232 to connect with PC
  • With built-in 5A load
  • Energy accumulation function
  • Large capacity storage device for mass memory

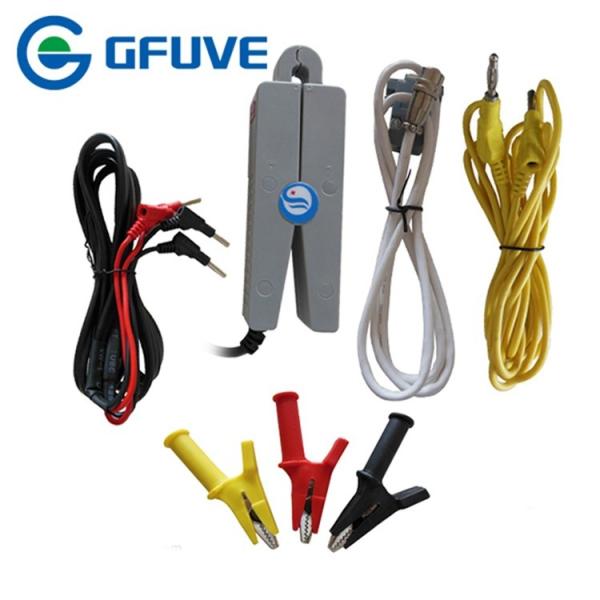

  • With 2pcs clamp CT to test ratio of current transformer. (Optional)

PARAMETERS

Electrical parameters　
Active power measurement accuracy 0.3%, 0.5%
Energy measurement accuracy 0.3%, 0.5%
Power supply AC 110-264V 50/60Hz
Warming-up time < 5 min
Power consumption ≤5VA
Voltage measurement　
Range 0-264V
Accuracy 0.30%
Current measurement　
Range 10mA-40A or 10mA-120A
Accuracy 0.3%
Phase measurement　
Range 0°-359.9°
Resolution 0.1°
Accuracy 0.5°
Frequency measurement　
Range 45-65 Hz
Resolution 0.01Hz
Accuracy 0.05Hz
Power factor measurement　
Range 0.4000 ~ +1.0000
Resolution 0.001
Accuracy 0.01
Electric energy pulse output 　
Pulse constant 900
Energy pulseinput　
Input range of pulse constant 1-25000
Pulse input level 5V
Mechanical parameters　
Dimensions (W×D×H) (mm) 185×67×30
Weight (kg) 1 (mains)
2 (appendix and bag)
Environmental conditions　
Working temperature -10°C to 50°C
Working humidity 5%- 85%RHD
Storage temperature -25°C to 70°C
Storage humidity 5% -95%RHDHigh Accuracy Electric Meter Calibration Energy Accumulation Function With Built In 5A LoadHigh Accuracy Electric Meter Calibration Energy Accumulation Function With Built In 5A Load
