Specifications
Brand Name :
GFUVE
Model Number :
Q125B
Certification :
CE UL
Place of Origin :
China
MOQ :
1 PC
Price :
Negotiable
Payment Terms :
T/T, Western Union, L/C
Supply Ability :
5000 pieces per month
Delivery Time :
Within 7 Days
Packaging Details :
Export Carton Box
Ratio :
1000: 1 or 2000:1 (customized)
Accuracy :
0.2%, 0.5%, 1%
Primary current :
0 - 3000A AC
Secondary current :
0 - 5A AC (customized)
Jaw color :
White
Max. Cont. Input current :
3600A
Over voltage category :
CAT III 600 V
Frequency range :
40Hz-2000Hz
Temperature range :
-20°C to +55°C
Weight (g) :
1100
Dimensions (L x W x H) (mm) :
180 x 319 x 35
Holding wire diameter (mm) :
φ125
Max. jaw opening (mm) :
125
Description

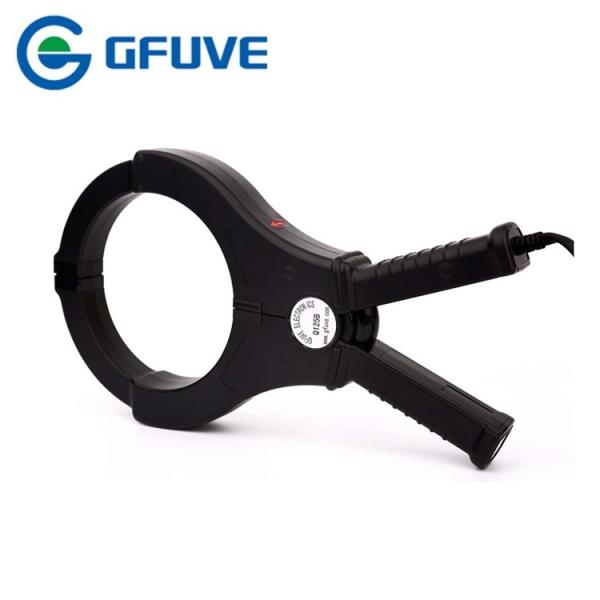

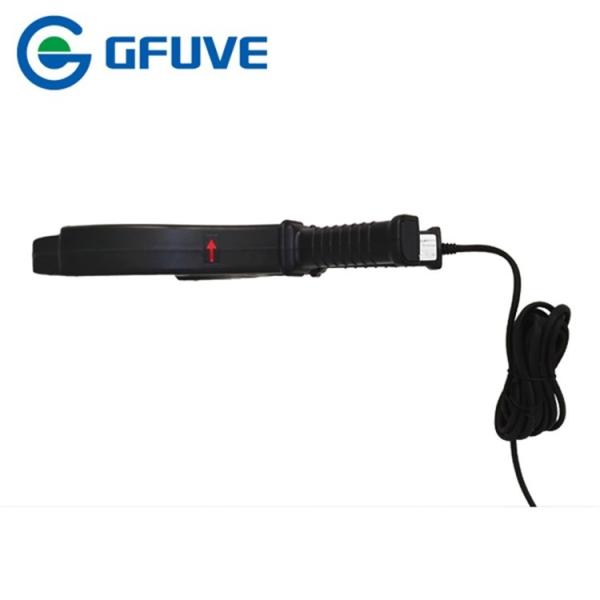

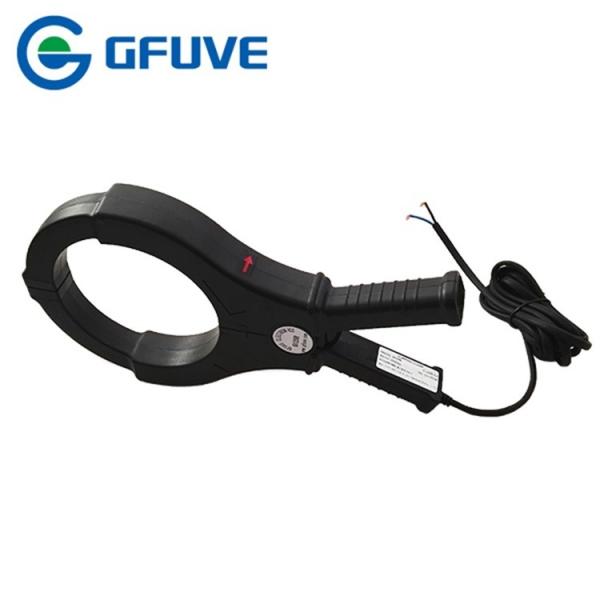

Q125B High Accuracy Current Clamp On Measuring Instrument

Description

The Q125B is a high performance AC Current Probe with excellent transformation and low phase shift. The high quality magnetic core and uniform windings provide for accurate measurements up to 1000A AC/2000A AC/3000A AC. The Round jaw permits 125mm cable positioning. Provide excellent TRMS capabilities and reliable signal reproduction.

GFUVE Q125B HVAC 3000A AC Current Clamp Probe 2000Hz 125mm Cable Positioning

features

1. Measurement range of 1A to 3600A AC
2. Large jaw opening designed
3. Improved ergonomic design and easy operation
4. Conforms to EN 61010, 600V CAT III
5. Low phase shift for power measurement
6. Nominal range: 1 to 1000AAC, 1 to 2000AAC, 1 to3000AAC
7. Transformation ratio: 1000:5, 2000:5, 3000:5
8. Output:5mA AC/A AC, 2.5mA AC/A AC, 1.666mA AC/A AC
9. Designed for use on DMMs, power and harmonic meters, recorders or instruments with AC current ranges
10. UL, CE mark

applications

1. Large industrial loads
2. Measuring around cable bundles
3. Power load monitoring
4. Electrical utility
5. HVAC
6. Industrial maintenance
7. Laboratory
8. Plant maintenance
9. Cable fault tester

7. Earth resistance meter
8. Large industrial loads

Electrical parameters
Ratio 1000: 1 or 2000:1 (customized)
Accuracy class 0.2%, 0.5%, 1%
Primary current 0 - 3000A AC
Secondary current 0 - 5A AC (customized)
Max. Cont. Input current 3600A
Over voltage category CAT III 600 V
Output signal (AC current) 500mA,1A, 2A, 5A AC at nominal input current
Electrical parameters - continued　
Output signal (AC voltage) 333mV,500mV,1V,5V AC at nominal input current
Frequency range 40Hz-2000Hz
Dielectric strength 3KV 50Hz/60Hz at 1 minute
Temperature range -20°C to +55°C
Output 2.5 meter cable with D01 connector
Max. voltage not insulated conductors 600 V
Standard EN 61010-1, EN 61010-2-032, IEC60044-1
Installation Clamp type
Output mode Lead output (2.5m)
Mechanical parameters
Dimensions (L x W x H) (mm) 180 x 319 x 35
Weight (g) 1100
Holding wire diameter (mm) φ125
Max. jaw opening (mm) 125
Jaw color Black
Material PC+ABS+Polycarbonate, UL94 V0

PACKING & DELIVERY

GFUVE Q125B HVAC 3000A AC Current Clamp Probe 2000Hz 125mm Cable Positioning

SERVICE

GFUVE Q125B HVAC 3000A AC Current Clamp Probe 2000Hz 125mm Cable Positioning

ABOUT US

GFUVE Q125B HVAC 3000A AC Current Clamp Probe 2000Hz 125mm Cable Positioning

Beijing GFUVE Electronics Co., Ltd. was established in 2005. It combined science, industry and trade together as one high-tech enterprise. GFUVE mainly produces high voltage ammeter recorder, IEC61850 test suite software, energy meter test equipment, reference standard meter, phantom load power source, relay test set, CT PT analyzer, transformer test, High voltage test set, electrical calibrator, power analyzer and intelligent digital meter, transducer, current probe, split core ct, current transformer, voltage transformer and handheld terminal etc.

GFUVE is a leader manufacturer of energy meter test products and high voltage ammeter recorder in China. It is professional in energy meter test system, energy meter portable tester and related accessory. The product of high voltage ammeter recorder develops very quickly in the market. Our company has achieved certification to ISO9001. The products are sold to over 30 provinces in China and exported to overseas including South America, Middle East, Southeast Asia and Africa.

We have been contributing ourselves to developing the durable and stable products for the usage of the power system. Contact us now for further business relationship. We are here to provide you the best service.

F&Q

1. who are we?
We are based in Beijing, China, start from 2008,sell to Domestic Market(7.14%),South Asia(7.14%),Southern Europe(7.14%),Northern Europe(7.14%),Central America(7.14%),Western Europe(7.14%),Eastern Asia(7.14%),Mid East(7.14%),Oceania(7.14%),Africa(7.14%),Southeast Asia(7.14%),Eastern Europe(7.14%),South America(7.14%),North America(7.14%). There are total about 201-300 people in our office.

2. how can we guarantee quality?
Always a pre-production sample before mass production;
Always final Inspection before shipment;

3.what can you buy from us?
energy meter calibration,Relay test set,ct analyzer,Split core current transformer,Power quality analyzer

4. why should you buy from us not from other suppliers?
We have more than 16 years research experience in the electric power industry. meter test equipment, phantom load power source, ct pt analyzer, relay test set, HV ammeter recorder, power meter, power quality analyzer, transducer, split core ct, ct & pt.

5. what services can we provide?
Accepted Delivery Terms: FOB,CFR,CIF,EXW,FAS,CIP,FCA,CPT,DEQ,DDP,DDU,Express Delivery,DAF,DES；
Accepted Payment Currency:USD,EUR;
Accepted Payment Type: T/T,L/C,D/P D/A,MoneyGram,Credit Card,PayPal,Western Union,Cash,Escrow;
Language Spoken:English,Chinese,Spanish

GFUVE Q125B HVAC 3000A AC Current Clamp Probe 2000Hz 125mm Cable PositioningDescription
The S120 is a high performance AC Clamp on current transformer probe with excellent transformation and low phase shift. The high quality magnetic permalloy core and uniform windings provide for accurate measurements up to 2000A/1000A/500A AC. The "ring type" jaw permits good magnetic conduction and cable positionings. Provide excellent RMS capabilities and reliable signal reproduction.

features


1. Measurement range of 10mA to 2000A AC
2. Improved ergonomic design & easy operation
3. High content nickel metal permalloy core
4. Frequency 10-2MHz
5. Holding wire diameter: φ120mm
6. Conforms to EN 61010, 600V CAT III
7. Transformation ratio: 1000:1, 2000:5
8. Low phase shift for power measurement
9. Designed for DMMs, recorders, loggers, oscilloscopes, power and harmonic meters

applications

1. Power quality analyzer(PQA)
2. power and harmonic meters
3. Energy meter calibrator
4. Cable Fault Analysis
5. Measuring around cable bundles
6. Power load monitoring
7. Earth resistance meter
8. Large industrial loads
