Onsite Testing Kwh Meter Calibration 45Hz 600V For Energy Measurement
Onsite Testing Kwh Meter Calibration 45Hz 600V For Energy Measurement
Onsite Testing Kwh Meter Calibration 45Hz 600V For Energy Measurement
Onsite Testing Kwh Meter Calibration 45Hz 600V For Energy Measurement
Onsite Testing Kwh Meter Calibration 45Hz 600V For Energy Measurement
Onsite Testing Kwh Meter Calibration 45Hz 600V For Energy Measurement
Onsite Testing Kwh Meter Calibration 45Hz 600V For Energy Measurement
Onsite Testing Kwh Meter Calibration 45Hz 600V For Energy Measurement
Specifications
Brand Name :
GFUVE
Model Number :
GF312B
Place of Origin :
BEIJING,CHINA
MOQ :
1SET
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1500SETS/MONTH
Delivery Time :
1-2WEEKS
Packaging Details :
CARTON
ACCURACY :
0.05%, 0.1%, 0.2%
POWER SUPPLY :
220V ± 10% or 110V ± 10%, 50/60Hz ± 2Hz
VOLTAGE :
0V-600V
CURRENT :
20mA-20A
FREQUENCY :
45Hz-65Hz
HARMONIC :
2nd-63st
DIMENSION :
390×200×160MM
WEIGHT :
3KG
Description

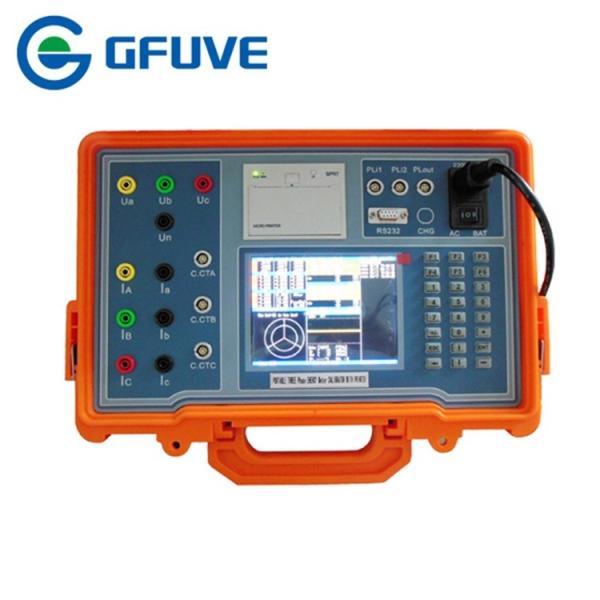

Kwh three phase portable meter calibration onsite tester,optional clamp,extral printing,guaranteed accuracy,wide range

INTRODUCTION

GFUVE is committed to providing our customers with leading innovative and technologically superior products, while maintaining metrology capability in power and energy measurement that is surpassed by none. Our engineers drew on the expertise and knowledge to achieve in power and energy measurement technology perfection

TECHNICAL PARAMETERS

Electrical parameters　
Accuracy 0.05%, 0.1%, 0.2%
Power supply 220V ± 10% or 110V ± 10%, 50/60Hz ± 2Hz
Test Voltage　
Range 0V-600V
Error ±0.05% (30V-600V)
±0.1% (5V-30V)
Harmonic 2nd-63st
Test Current　
Range (direct connection) 20mA-20A
Error (direct connection) ±0.05% (100mA-20A)
±0.1% (20mA-100mA)
Range (Clamp CT) 10mA-3000A
Error (Clamp CT) ±0.2% (100mA-3000A)
±0.5% (10mA-100mA)
Harmonic 2nd-63st
Power measure error　
Active power (direct connection) ±0.05% (0.1A-20A)
±0.1% (0.02A-0.1A)
Reactive power (direct connection) ±0.1% (0.1A-20A)
Energy measure error　
Active energy (direct connection) ±0.05% (0.1A-20A)
±0.1% (0.02A-0.1A)
Reactive energy (direct connection) ±0.1% (0.1A-20A)
Phase angle　
Range 0° ~ 360°
Resolution 0.01°
Error ±0.05°
Frequency　
Range 45Hz-65Hz
Resolution 0.001Hz
Accuracy 0.005Hz
Power factor　
Range -1 ~ 0 ~ 1
Resolution 0.0001
Error 0. 0005
Pulse output 　
Energy constant 180000imp/kWh, 1800imp/kWh, 18imp/kWh
Pulse ratio 1:1
Output level 5V
Pulse input　
Input channel 1
Input level 5-24V
Input frequency Max. 2MHz
Display　
Resolution 6”TFT (640×480)
Function　
Vector diagram Yes
Waveform Yes
Energy accumulation Yes
Communication port RS232
Communication with PC Yes
Mechanical parameters　
Dimensions (W×H×D) (mm) 390×200×160
Host Weight (mm) 3
Weight (including Accessories 3pcs 100A clamp CT) (kg) 12
Environmental conditions　
Ambient temperature -10°C to 40°C
Relative humidity 30%-85%

Onsite Testing Kwh Meter Calibration 45Hz 600V For Energy MeasurementOnsite Testing Kwh Meter Calibration 45Hz 600V For Energy Measurement
