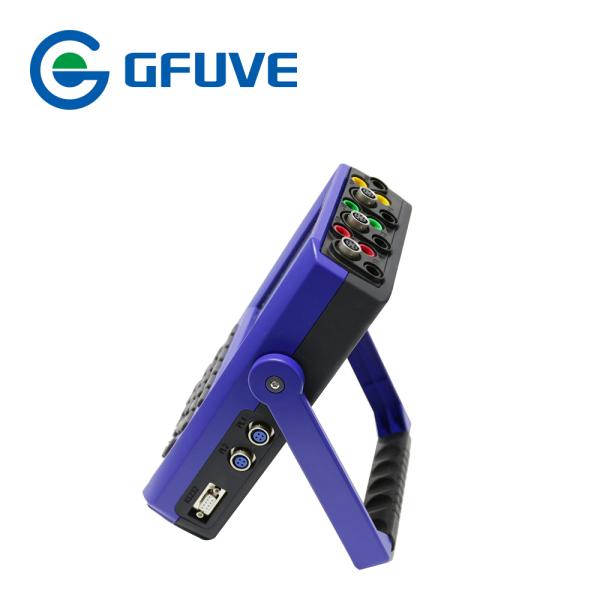

480V Electric Meter Calibration Oil Exploration Electrical Testing Meter
480V Electric Meter Calibration Oil Exploration Electrical Testing Meter
480V Electric Meter Calibration Oil Exploration Electrical Testing Meter
480V Electric Meter Calibration Oil Exploration Electrical Testing Meter
480V Electric Meter Calibration Oil Exploration Electrical Testing Meter
480V Electric Meter Calibration Oil Exploration Electrical Testing Meter
480V Electric Meter Calibration Oil Exploration Electrical Testing Meter
480V Electric Meter Calibration Oil Exploration Electrical Testing Meter
Specifications
Brand Name :
GFUVE
Model Number :
GF312D
Place of Origin :
BEIJING,CHINA
MOQ :
1SET
Payment Terms :
T/T, Western Union, MoneyGram
Supply Ability :
1500SETS/MONTH
Delivery Time :
1-2WEEKS
Packaging Details :
CARTON
accuracy :
0.05%, 0.1%
resolution :
6”TFT (640×480)
power supply :
220V±10%, 50/60Hz
voltage test range :
5-480V
harmonic :
2nd-63st
direct test range :
5mA-20A
frequency :
45-65Hz
dimension :
220×138×61mm
weight :
1.7kg
Description

TECHNICAL PARAMETERS

Electrical parameters　
Accuracy class 0.05%, 0.1%
Resolution 6”TFT (640×480)
Power supply 220V±10%, 50/60Hz
Li-polymer battery (size (mm): 110x51x16, nominal output voltage: 7.2V, capacity: 5000mAh)
Power line supply (U1, UN), 85V-265V 50/60Hz
Communication port RS232
Test voltage　
Range 5-480V
Error ±0.05% (30V-480V)
±0.1% (5V-30V)
Harmonic 2nd-63st
Test current　
Range (direct connection) 5mA-20A
Error (direct connection) ±0.05% (100mA-20A)
±0.1% (10mA-100mA)
Range (clamp CT) 10mA-3000A
Error (camp CT) ±0.2% (100mA-100A)
±0.5% (100A-3000A)
Harmonic 2nd-63st
Power measure error　
Active power (direct connection) ±0.05% (0.1A-20A)
±0.1% (0.01A-0.1A)
Reactive power (direct connection) ±0.1% (0.1A-20A)
Energy measure error　
Active energy (direct connection) ±0.05% (0.1A-20A)
±0.1% (0.01A-0.1A)
Reactive energy (direct connection) ±0.1% (0.1A-20A)
Phase angle　
Range 0°-360°
Resolution 0.01°
Error ±0.05°
Frequency　
Range 45-65Hz
Resolution 0.001Hz
Error 0.002Hz
Pulse input　
Input channel 2
Input level 5-24V
Input frequency Max. 2MHz
Pulse output　
Energy constant 180000imp/kWh, 1800imp/kWh, 180imp/kWh
Pulse ratio 1:1
Output level 5V
Function　
Vector diagram Yes
Waveform Yes
Energy accumulation Yes
Communication with PC Yes
Mechanical parameters　
Instrument dimensions (W×H×D) (mm) 220×138×61
Instrument Weight (kg) 1.7

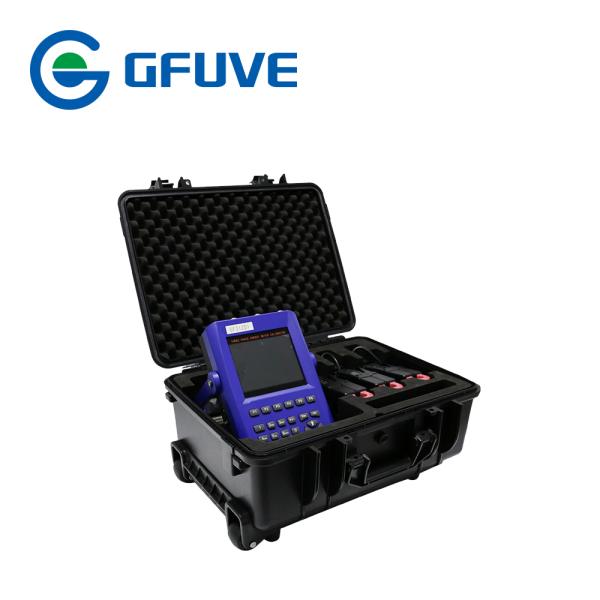

Carry case dimensions (W×H×D) (mm) 450×320×185
Carry case (kg) 8.5
Environmental conditions　
Ambient temperature -10°C to 55°C
Relative humidity 15%-85%

480V Electric Meter Calibration Oil Exploration Electrical Testing Meter480V Electric Meter Calibration Oil Exploration Electrical Testing Meter
