12M LHD RHD Low Entrance Floor Pure Electric City Buses Battery Charging Vehicle
This model adapts low floor stepping, convenient for passenger flow. High voltage electric control components are placed in the rear cabin. Electric air compressor, steering assist pump are placed behind the rear wheel. AC installed on the middle roof, 4 battery packs are placed on the front part of bus roof to adjust axle loading distribution so that balance wearing of front and rear tyre
Advantage:
Pure Electric Power: These buses run entirely on electricity, eliminating harmful emissions and reducing environmental impact. They contribute to cleaner air quality and help combat climate change.
Low Entrance Floor: The buses feature a low entrance floor design, ensuring easy and convenient boarding for passengers, including those with limited mobility. It promotes inclusivity and accessibility for all passengers.
Silent Operation: With their pure electric drivetrain, the buses operate quietly, significantly reducing noise pollution in urban areas. This creates a more peaceful and comfortable environment for passengers and residents.
Efficient Charging System: The buses can be charged at dedicated charging stations or through other charging infrastructure. The battery charging system allows for efficient energy management and ensures a reliable power supply, enabling optimal bus performance.
LHD/RHD Configuration: The buses are available in both left-hand drive (LHD) and right-hand drive (RHD) configurations, catering to different regional requirements. This ensures optimal driver visibility, control, and compatibility with local traffic regulations.
Environmental Sustainability: By utilizing pure electric power, these buses contribute to a greener and more sustainable transportation ecosystem. They help cities reduce their carbon footprint, combat air pollution, and create more livable urban environments.
Specification
Overall specs | Passenger capacity | 94/22-46 seats | Motor specs | Manufacturer | ZEV | |
Vehicle size (mm) | 12000*2550*3225 | Model | -- | |||
Wheel base (mm) | 6200 | Position | rear | |||
Front/Rear overhang | 2700/3100 | Engine type | -- | |||
Front/Rear tread | 2119/1887 | Max.power(kw/rpm) | 240 | |||
Approach/Departure(º) | 8/8 | Max. torque (N.m/rpm) | 2800 | |||
Max. Grade-ability(%) | 15% | Displacement(L) | -- | |||
Top speed (km/h) | 69km/h | Fule | Electric | |||
Curb weight (kg) | 11800 | Emission | -- | |||
Gross weight (kg) | 18000 | |||||
Battery | 350.07 kwh,LiFePo4, water cool. with monitoring system. | |||||
Charging holder | Single or Double optional. | |||||
Driving range | 280-650km | |||||
Item | Specs | Remarks | ||||
Chassis | Front axle | 7.5T | ||||
Rear axle | 13T | |||||
Transmission | Auto transmission | |||||
Suspension | Import air suspension, SACHS shock absorber | |||||
Steering | BOSCH 8098 steering | |||||
Braking | KNORR brake system, disc brake and maintenance free | |||||
Tyre | 275/70R22.5 aluminum rim | |||||
Battery | Maintenance-free type 2*195Ah | |||||
electronics | AC | 32000kcal/h with air purifier | ||||
Defroster | Electric heater , 4 PTC radiator | |||||
Instrument | CAN BUS LINE. LCD instrument | |||||
Audio-system | 2 pcs LCD display | |||||
Lights | LED combination lights | |||||
Monitoring system | CCTV system with 10 cameras | |||||
Route board | Front, rear and side LCD screen | |||||
Driver assistance system | ADAS HSA | |||||
Bus facilities | Body | Electro coating. | ||||
Passenger door | Front aluminum inner swing door | |||||
Window | Sliding side window, laminated front windscreen and tempered rear-shield | |||||
Passenger seat | 28 plastic city bus seats with cushion | |||||
Interior | aluminum-plastic | |||||
Floor and floor cover | PVC floor, anti-slippery, flame retardant leather | |||||
Paint | Solid paint | |||||
Others | Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area, Travelling record with GPS |

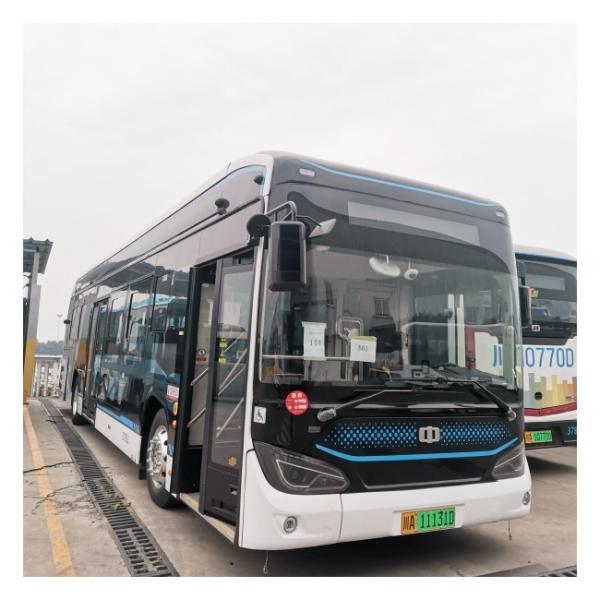

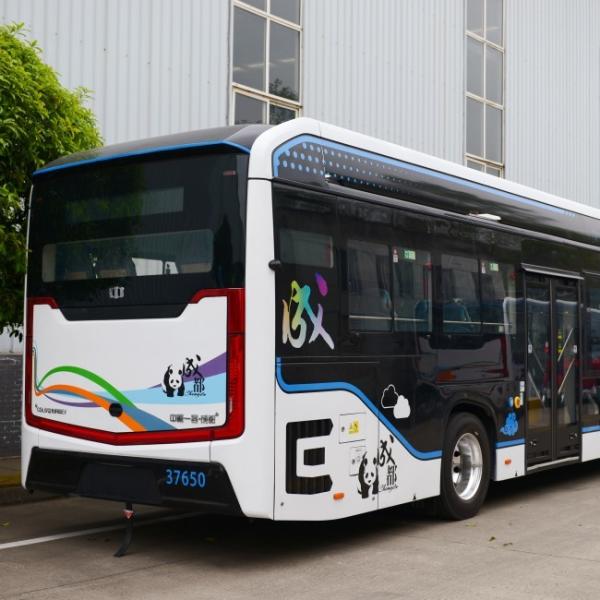

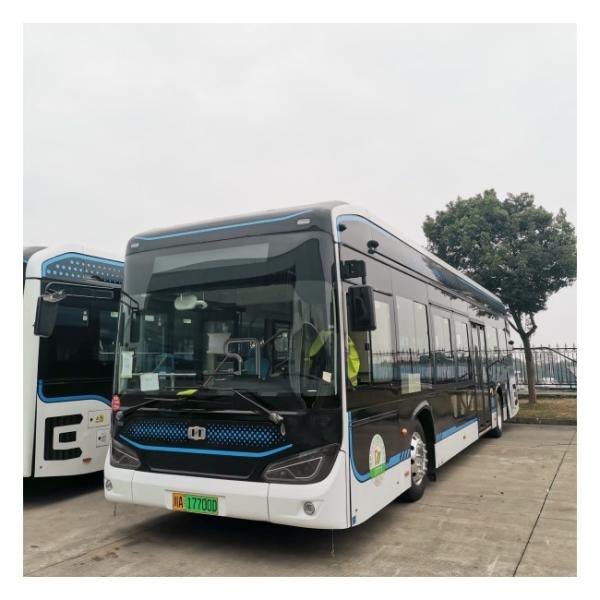

Pictures for reference
User-friendly interface and floating buttons.
Separation door with eco-friendly materials prevents the driver from disturbance while driving.
