6.6m Pure Electric Bus LHD RHD Battery Charging 16 Seaters Mini Bus.
6.6m Pure Electric Bus LHD RHD Battery Charging 16 Seaters Mini Bus.
6.6m Pure Electric Bus LHD RHD Battery Charging 16 Seaters Mini Bus.
6.6m Pure Electric Bus LHD RHD Battery Charging 16 Seaters Mini Bus.
6.6m Pure Electric Bus LHD RHD Battery Charging 16 Seaters Mini Bus.
6.6m Pure Electric Bus LHD RHD Battery Charging 16 Seaters Mini Bus.
Specifications
Brand Name :
ZEVAUTO
Model Number :
CDL6600URBEV
Certification :
ISO
Place of Origin :
Chengdu, China
MOQ :
1
Payment Terms :
T/T, L/C
Supply Ability :
25000 units/per year
Delivery Time :
25 working days
Packaging Details :
nude packing
Product name :
Pure Electric Bus
Passenger capacity :
35 (10-16 seats)
Wheel base (mm) :
2840
Front/Rear overhang :
1745/1425
Approach/Departure(º) :
11/15
Max. Grade-ability(%） :
≥20%
Top speed (km/h) :
69km/h
Fule type :
Electric
Driving range(km) :
≥180
Steering position :
LHD
Emission standard :
Zero
A/c :
With
Description

6.6m Pure Electric Bus LHD RHD Battery Charging 16 Seaters Mini Bus.​

6.6m Pure Electric Bus, available in both left-hand drive (LHD) and right-hand drive (RHD) configurations, is a compact and eco-friendly transportation solution. This electric bus runs entirely on electric power, emitting zero emissions and reducing environmental impact. With a length of 6.6 meters, it is perfectly suited for navigating through crowded city streets and narrow roads. The bus is equipped with a battery charging system for efficient operation and can comfortably seat up to 16 passengers, with additional standing room available. Its versatile design and LHD/RHD options make it suitable for various driving environments. This 6.6m Pure Electric Bus provides a sustainable and comfortable transportation solution, ideal for urban areas and short-distance travel.

Specs

Overall specs Passenger capacity 35 (10-16 seats) Motor specs Manufacturer ZEV
Vehicle size (mm) 6605*2200*2925 Model --
Wheel base (mm) 2840 Position rear
Front/Rear overhang 1745/1425 Motor type
Front/Rear tread 1865/1600 Max.power(kw/rpm) 110
Approach/Departure(º) 11/15 Max. torque (N.m/rpm) 750
Max. Grade-ability(%) ≥20% Displacement(L) --
Top speed (km/h) 69km/h Fuel Electric
Curb weight (kg) 5000 Emission --
Gross weight (kg) 8500
Battery 95.25 kwh,LiFePo4
Cruising range ≥180km
Charging time within 2h
Item Specs Remarks
Chassis Front axle DANA
Rear axle DANA
Transmission Auto transmission
Suspension Leaf spring
Steering Integral power steering, elector-hydraulic power steering
Braking Front disc and rear drum ; dual circuit air brake, ABS,slack adjuster
Tyre 215/75R17.5 steel rim Tubeless radial tire
Battery Maintenance-free type
electronics AC 12000kcal/h
Defroster Electric
Instrument CAN Bus Line
Audio-system MP5
Lights

Front and rear combination light. Fog light. LED

Through type inner dome light, step light.
Monitoring system CCTV system with 6 cameras
Route board Front, rear and side LED type
Bus facilities Body Cathode coating.
Passenger door Front aluminum inner swing door
Window Sliding side window, laminated front windscreen and tempered rear-shield
Passenger seat 10-16 plastic city bus seats
Interior

PVC duct, PVC composite side plate.

Punched aluminum-plastic roof plate.
Floor and floor cover PVC floor, anti-slippery, flame retardant leather
Paint Solid paint
Others Station broadcaster with speaker, wireless passengers stop buttons, Safety hammer with alarm function,Electronic clock,Manual fire distinguisher ,Auto fire distinguisher in battery cabin,USB connector at driver area, wire connector for payment machine,WIFI , Travelling record with GPS

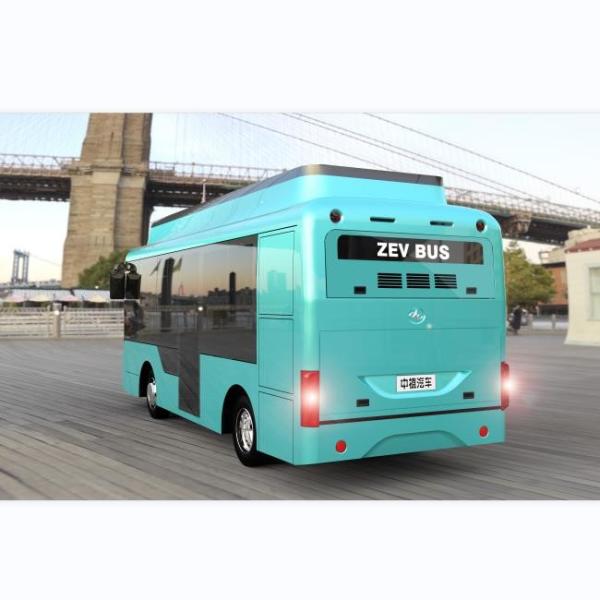

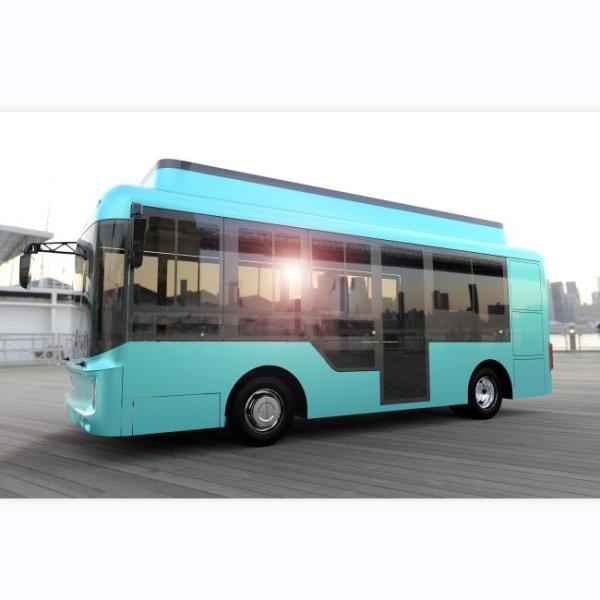

Pictures for reference

6.6m Pure Electric Bus LHD RHD Battery Charging 16 Seaters Mini Bus.

FAQ:

Q: Who we are?

A: ZEV is a group company specializing in buses and coaches R&D, manufacturing and marketing. From its foundation in 2000’s, ZEV’s culture of continuous innovation has made it a leading manufacture in China. Now we have developed a series of Electric BUS&COACH as well as Hydrogen fuel cell bus. There will always be a model that suits you the most.

Q: What can we offer?

A:

  • As a public transportation provider, we can not only provide you buses and coaches but also a comprehensive solution for a better travel experience.
  • Buses and coaches CBU, KD kit, Chassis and Body frames
  • Spare parts including various charger for EV

Q: Do you accept customized service?
A: Yes. We can offer customized service according to your requirements .

Q: What’s the delivery time?

A: Normally 20-35 workdays.

Q: Why choose us?

A: We guarantee professional service, competitive price with high quality vehicles.
