F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver
F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver
F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver
F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver
F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver
F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver
F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver
F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver
F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver
F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver
F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver
F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver
Specifications
Brand Name :
ZODO
Model Number :
F30
Certification :
CE, FDA, 3C, 9000
Place of Origin :
China
MOQ :
1 set
Payment Terms :
T/T
Supply Ability :
200 set per month
Delivery Time :
5-8 working days
Packaging Details :
wooden case
model :
F30
software :
EZCAD
language :
6
Description

F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver

1.Applicable materials:

Applicable various metal,. aluminum and some non-metal materials.

2. Applicable industry:

Metal,alloy ,oxide,ABS,epoxy resin,jewelry ,phone ,pen etc. which are widely applying for electronics,jewelry,automobiles,communication products,plastic buttons,IC,etc.

3.Technical Parameters

Laser type MAX optional
Software EZCAD
Language Six language
Laser power 20W/30w/50w optional
Up down table Yes
Supports graphical format PLT, BMP, JPG, PNG, TIP, PCX, TGA, ICO, DXF
Beam quality <2
Power stability (8h) <± 1% RPM
Pulse repetition frequency 20-60KHZ
Power consumed <800W
Minimum line width 50μm
Minimum character 0.3mm
Laser Wavelength 1064nm
Galvanometer Size 100*100mm/110*110mm/200*200mm
Cooling way Air cooling
Operating voltage 110/220V ± 10% /,50/60HZ
Ambient operating temperature 15 ° C - 35 ° C
Weight 50kg./100kg for desk type
Dimensions Portable type760*210*570 (mm)/desk type 98*88*100cm
Packing plywood wooden packaging

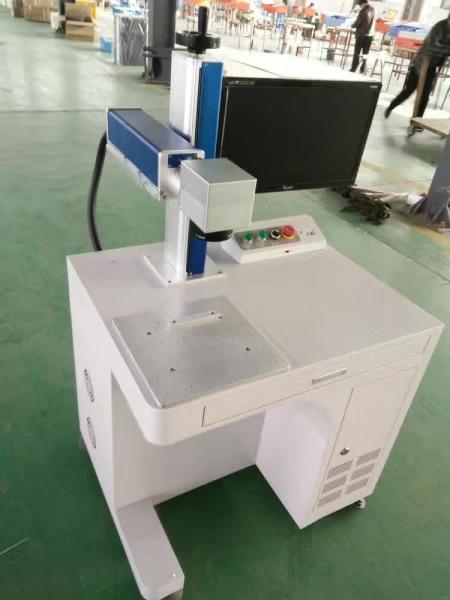

4. product pictures

F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraverF30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraverF30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraverF30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraverF30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver

Rotator

Fix the material and realize rotating marking ,any size can be customized.(the standard diameter size is 50mm,80mm,10mm)

F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraverF30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver

5. Sample pictures

F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver

F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver

F30 30W fiber laser marking machine for metal and non metal material fiber laser marker,laser engraver
