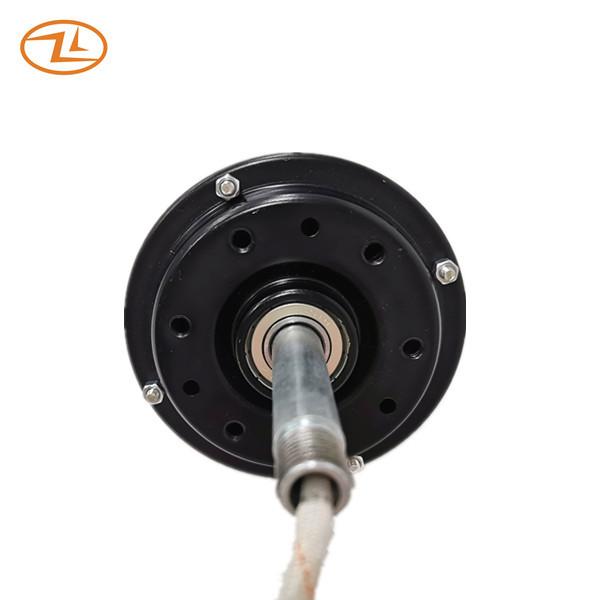

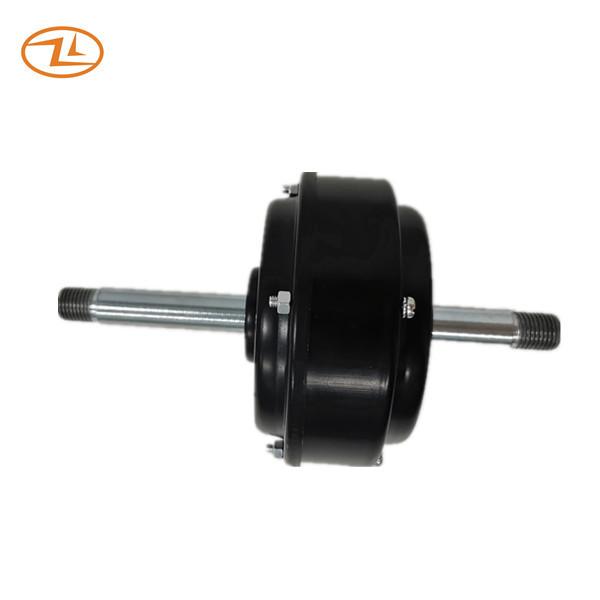

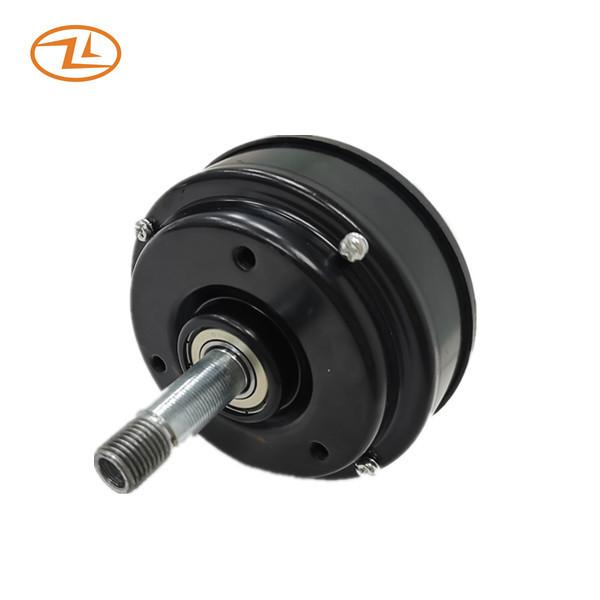

46 Inch 120VAC Ceiling Fan Motors BLDC 200 RPM PWM Control
46 Inch 120VAC Ceiling Fan Motors BLDC 200 RPM PWM Control
46 Inch 120VAC Ceiling Fan Motors BLDC 200 RPM PWM Control
46 Inch 120VAC Ceiling Fan Motors BLDC 200 RPM PWM Control
46 Inch 120VAC Ceiling Fan Motors BLDC 200 RPM PWM Control
46 Inch 120VAC Ceiling Fan Motors BLDC 200 RPM PWM Control
Specifications
Brand Name :
Zhaoli
Model Number :
106-15
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
1000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
BLDC Ceiling fan motor
Rated voltage :
120V 60HZ
Stack size :
φ106mm
Number of poles :
Eight poles
Number of phases :
three phase
Bearing :
Ball bearings
Construction :
Outer rotor
Control type :
PWM
Output signal :
FG
Rectifying method :
electronices
Packing :
Customized packing
Printing :
Customized printing
Anicilary :
Emitter and signal Receiver
Application :
Ceiling fan
Description

Long Life BLDC Ceiling Fan Motor For 46inch Fan 120VAC 200RPM PWM Control

Model

Output

signal

Control type

PWM/ voltage

Bearing type

Ball/sleeve bearing

Rated voltage

VDC

Operating voltage

VDC

Rated current

A

Rated input power

W

Speed

RPM

Load

Ceiling fan

Life

hours
D9T92H2B- / PWM Ball bearing 12 7.0~13.2 2 24 260 42inch 3 blades 30,000
D9T92H4B- / PWM Ball bearing 24 16~26.4 0.8 19.2 230 42inch 3 blades 30,000
E9T92HBB- / PWM Ball bearing 240 160~270 0.2 30 200 48inch 3 blades 30,000
EBTD0MBB01 -FG PWM Ball bearing 240 160~270 0.23 30 200 52inch 3 blades 30,000
EBTD0LAB01 -FG PWM Ball bearing 120 90~150 0.35 35 170 56inch 3 blades 30,000
EBTD0LBB01 -FG PWM Ball bearing 240 160~270 0.25 45 120 60inch 3 blades 30,000

Drawing:

46 Inch 120VAC Ceiling Fan Motors BLDC 200 RPM PWM Control

Application: Ceiling fan

46 Inch 120VAC Ceiling Fan Motors BLDC 200 RPM PWM Control
