Sleeve Bearing Single Phase Shaded Pole Motor CL.H 120V 25W Customized
Sleeve Bearing Single Phase Shaded Pole Motor CL.H 120V 25W Customized
Sleeve Bearing Single Phase Shaded Pole Motor CL.H 120V 25W Customized
Sleeve Bearing Single Phase Shaded Pole Motor CL.H 120V 25W Customized
Specifications
Brand Name :
Zhaoli
Model Number :
YJ61-16
Certification :
UL, CUL, CE, CCC, VDE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + pallets
Name :
oven motor
Rated voltage :
120V 60HZ
Stack size :
60.5x60.5mm
Lamination thickness :
16mm
Insulation class :
CL.H
Fan blade :
φ 152mm/ 150mm / 149mm
Bearing :
Ball bearing or sleeve bearing
Shaft :
customized
Printing :
Customized printing
Packing :
Customized packing
Motor type :
Asynchronous motor
Phase :
Single phase
Protect feature :
Explosion-proof
Application :
Oven/grille
Description

Oven Fan Motor YJ61-16 120V 60HZ CL.H Ball Bearing/Sleeve Bearing Optional

Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.

This is one kind of shaded pole motors, mainly applied in built-in oven or stand oven products. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 Free Load On Load

Current

A

Speed

RPM

 Current A

Input

W

Speed

RPM
YJ61-10 230 50 0.080 2400 0.100 12 900
YJ61-10 120 60 0.150 3100 0.200 15 800
YJ61-12 230 50 0.100 2500 0.160 15 1000
YJ61-12 120 60 0.180 3100 0.250 16 900
YJ61-14 230 50 0.180 2700 0.200 18 1100
YJ61-14 120 60 0.200 3200 0.300 20 1000
YJ61-16 230 50 0.200 2700 0.250 22 1300
YJ61-16 120 60 0.250 3200 0.350 25 1300
YJ61-20 230 50 0.250 2800 0.300 28 1500
YJ61-20 120 60 0.350 3300 0.450 31 1500
YJ62-25 230 50 0.280 2800 0.350 35 1800
YJ62-25 120 60 0.500 3300 0.650 38 1700

Drawing:

Sleeve Bearing Single Phase Shaded Pole Motor CL.H 120V 25W Customized

Sleeve Bearing Single Phase Shaded Pole Motor CL.H 120V 25W Customized

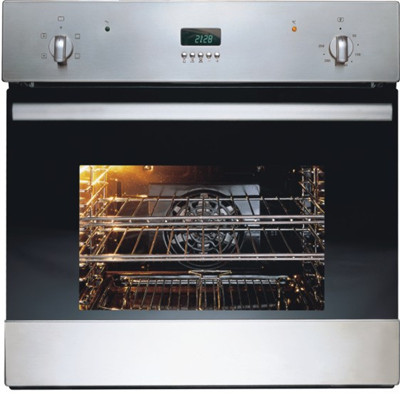

Application: Oven

Sleeve Bearing Single Phase Shaded Pole Motor CL.H 120V 25W Customized
