Oven Single Phase Asynchronous Motor 28W Round Plate 15.5mm 1200 RPM Electric Motor
Oven Single Phase Asynchronous Motor 28W Round Plate 15.5mm 1200 RPM Electric Motor
Oven Single Phase Asynchronous Motor 28W Round Plate 15.5mm 1200 RPM Electric Motor
Oven Single Phase Asynchronous Motor 28W Round Plate 15.5mm 1200 RPM Electric Motor
Specifications
Brand Name :
Zhaoli
Model Number :
YJ61H-16
Certification :
UL, CUL, CE, CCC, VDE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + pallets
Name :
oven motor
Rated voltage :
120V 60HZ
Stack size :
60.5x60.5mm
Lamination thickness :
15.5mm
Insulation class :
CL.H
Fan blade :
φ152mm
Bearing :
sleeve bearing
Shaft :
customized
Printing :
Customized printing
Packing :
Customized packing
Motor type :
Asynchronous motor
Phase :
Single phase
Protect feature :
Explosion-proof
Application :
Oven
Description

Oven Motor YJ61H-16 120V 60HZ CL.H Round Plate And Fan Are Optional

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 Free Load On Load

Current

A

Speed

RPM

 Current A

Input

W

Speed

RPM
YJ61-16 120 60 0.250 3200 <=0.25 <=28 1200+/- 10%
YJ61H-16 230 50 0.130 2700 <=0.2 <=25 1200+/- 10%


This is one kind of shaded pole motors, mainly applied in built-in ovens or stand ovens. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions. We can also provide round plate and fan impeller.

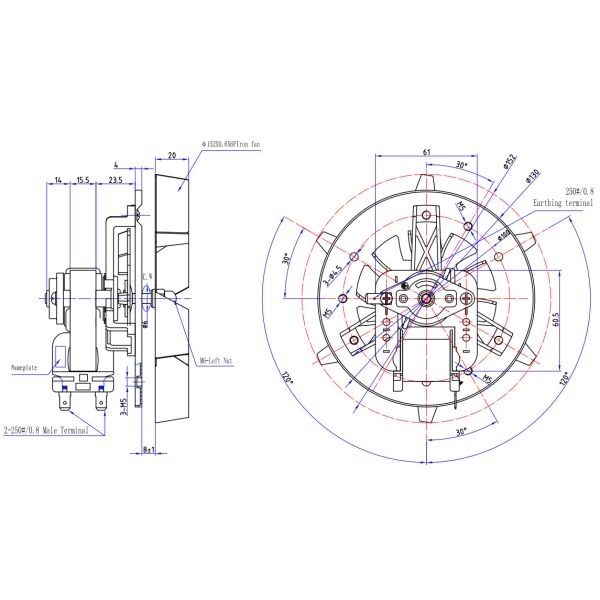

Drawing:

Oven Single Phase Asynchronous Motor 28W Round Plate 15.5mm 1200 RPM Electric Motor

Application: Oven

Oven Single Phase Asynchronous Motor 28W Round Plate 15.5mm 1200 RPM Electric Motor
