Convection Oven Fan Motors 120V 60HZ 30.5mm Lamination With Impeller
Convection Oven Fan Motors 120V 60HZ 30.5mm Lamination With Impeller
Convection Oven Fan Motors 120V 60HZ 30.5mm Lamination With Impeller
Convection Oven Fan Motors 120V 60HZ 30.5mm Lamination With Impeller
Convection Oven Fan Motors 120V 60HZ 30.5mm Lamination With Impeller
Convection Oven Fan Motors 120V 60HZ 30.5mm Lamination With Impeller
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62-30
Certification :
UL, CUL, CE, CCC, VDE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + pallets
Name :
toaster oven motor
Rated voltage :
120V 60HZ
Stack size :
62.5x60.5mm
Lamination thickness :
30.5mm
Insulation class :
CL.H
Fan blade :
φ152mm
Bearing :
sleeve bearing
Shaft :
customized
Printing :
Customized printing
Packing :
Customized packing
Motor type :
Asynchronous motor
Phase :
Single phase
Protect feature :
Explosion-proof
Application :
Toaster oven/ Convection oven
Description

Convection Oven Fan Motor Toaster Oven Motor YJ61/300L 120V 60HZ With Impeller

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 Free Load On Load

Current

A

Speed

RPM

 Current A

Input

W

Speed

RPM
YJ61/300L 120 60 0.40 3200 0.85 68 3000+/- 150

Upon customers' need, the motor performance, shaft dimension, fitting dimension, structure(ball bearing or sleeve bearing) can be adjustable.

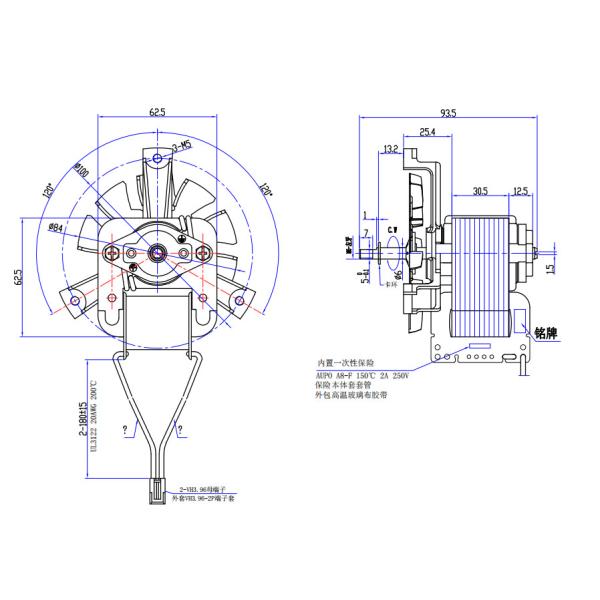

Drawing:

Convection Oven Fan Motors 120V 60HZ 30.5mm Lamination With Impeller

Application:

This kind of shaded pole motor is mainly applied in multi-functions convection ovens.

Convection Oven Fan Motors 120V 60HZ 30.5mm Lamination With Impeller
