Specifications
Brand Name :
Zhaoli
Model Number :
YJ62/300
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
compressor nebulizer motor
Rated voltage :
220V 50HZ
Stack size :
62.5x62.5mm
Lamination :
25.5mm
Phase :
Single phase
Number of poles :
two
Insulation class :
CL.B
Bearing :
ball bearing or sleeve bearings optional
pump nozzle :
direction is flexible
Rated load :
Atomizing chamber
Time rating :
S1 (continuous)
Packing :
Customized packing
Printing :
Customized printing
Application :
Compressor nebulizer/Vacuum use/Inhaler
Description

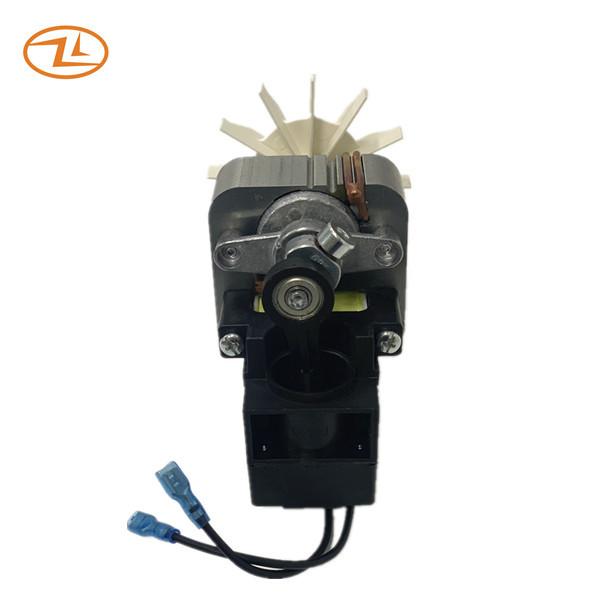

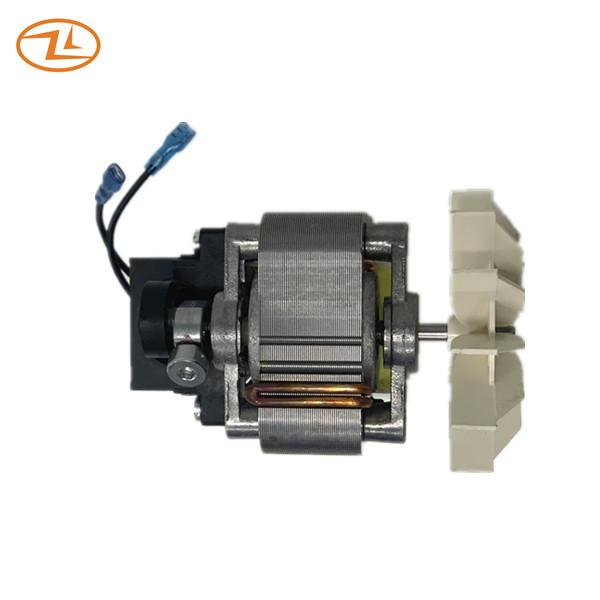

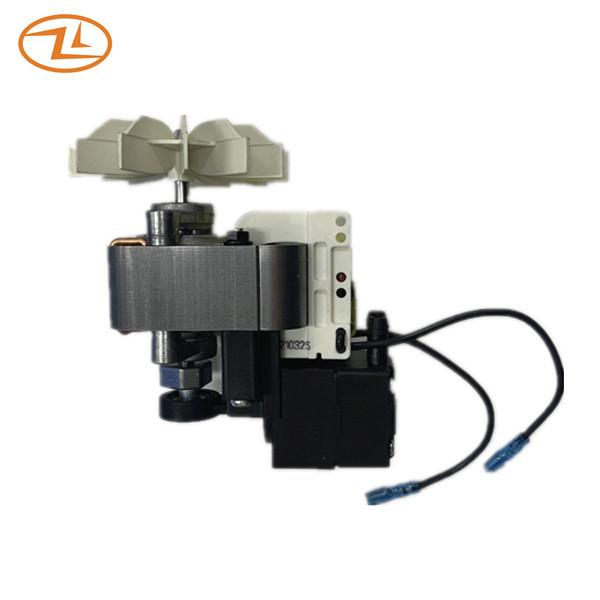

Powerful Nebulizer Compressor Motor Zhaoli Motor With CE Certification

This kind of pump motor is composed by shaded pole motor with piston pump. Most of the parts are produced by our own factory- stack stamping, die-casting, motor shaft, plastic part injection. In this case, we can shorten the lead time and gurantee the parts' quality.

Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.

A piston pump contains an accurately machined die-casted piston moving in a cylinder normally fitted with inlet and outlet valves.

Specification:

Rated voltage/frequency V/HZ 220V 50HZ
Rated current A 0.52A max
Rated input power W 55W max
Starting voltage V 198V max
Insulation Class CL.B
Working air pressure PSI 8PSI min
Rated flow rate L/M 4.0L/M min
Max pressure PSI 30PSI min
Max flow rate L/M 14.0L/M
Rotation Direction CCW (view from pump side)
Protection Thermal protector 130℃
Piston bearing Ball bearing
Nozzle direction Flexible, it can be four directions
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Life At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min.


Drawing:

Powerful Pump Nebulizer Compressor Motor 220V 50HZ CE Certification

Application: Nebulizer

Powerful Pump Nebulizer Compressor Motor 220V 50HZ CE Certification
