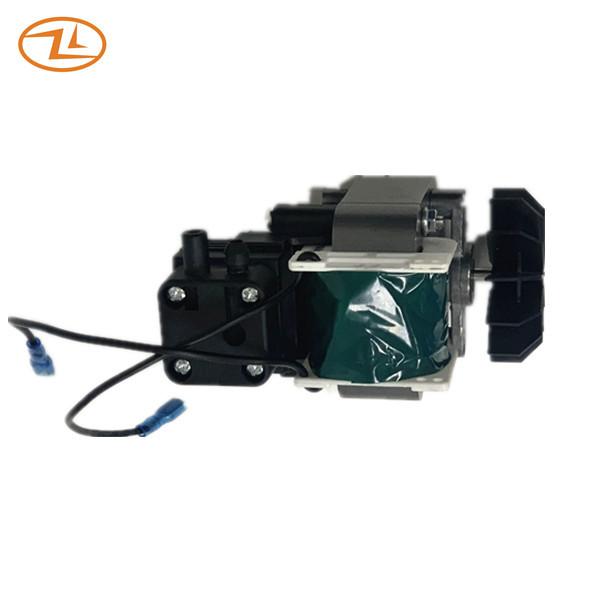

60W Nebulizer Compressor Motor 230V 50HZ Single Phase Induction Motor
60W Nebulizer Compressor Motor 230V 50HZ Single Phase Induction Motor
60W Nebulizer Compressor Motor 230V 50HZ Single Phase Induction Motor
60W Nebulizer Compressor Motor 230V 50HZ Single Phase Induction Motor
60W Nebulizer Compressor Motor 230V 50HZ Single Phase Induction Motor
60W Nebulizer Compressor Motor 230V 50HZ Single Phase Induction Motor
60W Nebulizer Compressor Motor 230V 50HZ Single Phase Induction Motor
60W Nebulizer Compressor Motor 230V 50HZ Single Phase Induction Motor
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62-25
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
nebulizer compressor motor
Rated voltage :
230V 50HZ
Stack size :
62.5x62.5mm
Lamination :
25mm
Phase :
Single phase
Number of poles :
two
Insulation class :
CL.B
Bearing :
ball bearing or sleeve bearings optional
pump nozzle :
direction is flexible
Rated load :
Atomizing chamber
Time rating :
S1 (continuous)
Packing :
Customized packing
Printing :
Customized printing
Application :
Compressor nebulizer
Description

Nebulizer Compressor Motor YJ62/300 230V 50HZ Pump Nozzle Direction Flexible

Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.

A piston pump contains an accurately machined die-casted piston moving in a cylinder normally fitted with inlet and outlet valves.

Specification:

Rated voltage/frequency V/HZ 230V 50HZ
Rated current A 0.52A max
Rated input power W 60W max
Starting voltage V 198V max
Working air pressure PSI 8PSI min
Max pressure PSI 30PSI min

Construction:

Insulation Class CL.B
Rotation Direction CCW (view from pump side)
Protection Thermal protector 130℃
Piston bearing Ball bearing
Nozzle direction Flexible, it can be four directions
Cooling fan size Φ58mm


Drawing:

60W Nebulizer Compressor Motor 230V 50HZ Single Phase Induction Motor

60W Nebulizer Compressor Motor 230V 50HZ Single Phase Induction Motor

60W Nebulizer Compressor Motor 230V 50HZ Single Phase Induction Motor

Application: Compressor Nebulizer
