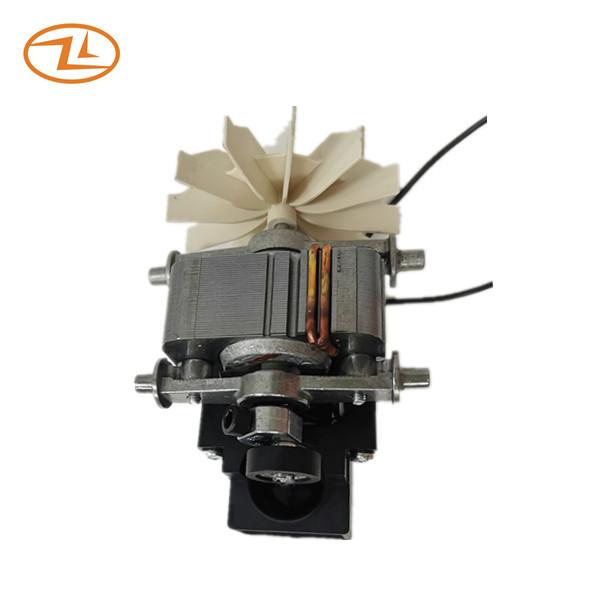

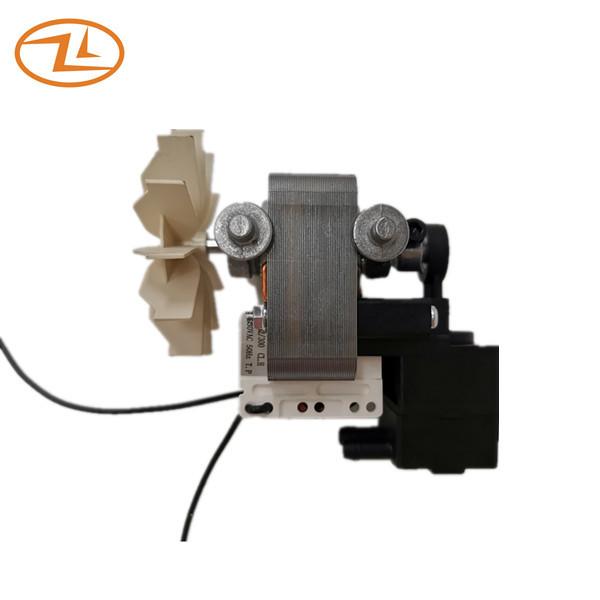

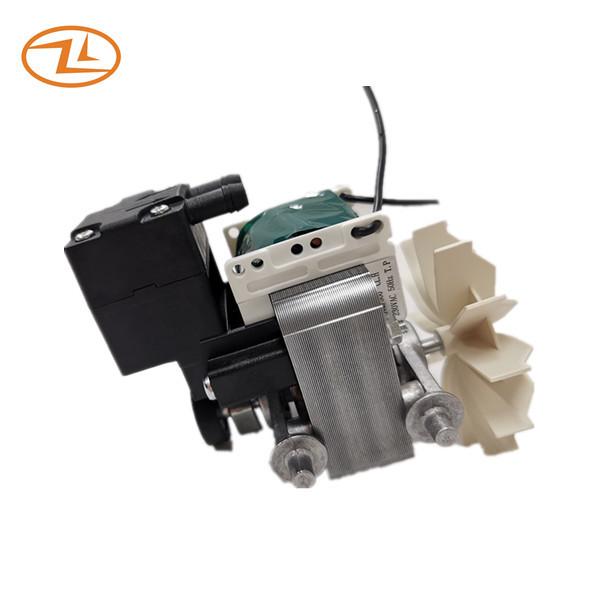

Air Compressor Nebulizer Compressor Motor YJ62 / 300 230V 50HZ
Air Compressor Nebulizer Compressor Motor YJ62 / 300 230V 50HZ
Air Compressor Nebulizer Compressor Motor YJ62 / 300 230V 50HZ
Air Compressor Nebulizer Compressor Motor YJ62 / 300 230V 50HZ
Air Compressor Nebulizer Compressor Motor YJ62 / 300 230V 50HZ
Air Compressor Nebulizer Compressor Motor YJ62 / 300 230V 50HZ
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62-25
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
compressor nebulizer motor
Rated voltage :
230V 50HZ
Stack size :
62.5x60.5mm
Lamination :
25mm
Phase :
Single phase
Number of poles :
two
Insulation class :
CL.H
Bearing :
ball bearing or sleeve bearings optional
pump nozzle :
direction is flexible
Rated load :
Atomizing chamber
Time rating :
S1 (continuous)
Packing :
Customized packing
Printing :
Customized printing
Application :
Compressor nebulizer/Vacuum use/Inhaler
Description

Nebulizer Compressor Motor Air Compressor Nebulizer Pump YJ62/300 230V 50HZ

Specification:

Rated voltage/frequency V/HZ 230V 50HZ
Rated current A 0.56A max
Rated input power W 72W max
Starting voltage V 200V max
Working air pressure PSI 8PSI min
Rated flow rate L/H 300L/H min
Max pressure PSI 32PSI min
Protection Thermal protector 140℃
Piston bearing Ball bearing
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Life At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min.


Drawing:

Air Compressor Nebulizer Compressor Motor YJ62 / 300 230V 50HZ

Air Compressor Nebulizer Compressor Motor YJ62 / 300 230V 50HZ

Application: Piston compressor nebulizer, Air compressor nebulizer, Inhaler.

Air Compressor Nebulizer Compressor Motor YJ62 / 300 230V 50HZ
