High Pressure Pump Nebulizer Compressor Motor 0.63A 40mm Thick Flow Rate
High Pressure Pump Nebulizer Compressor Motor 0.63A 40mm Thick Flow Rate
High Pressure Pump Nebulizer Compressor Motor 0.63A 40mm Thick Flow Rate
High Pressure Pump Nebulizer Compressor Motor 0.63A 40mm Thick Flow Rate
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62/400
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
compressor nebulizer motor
Rated voltage :
230V 50HZ
Stack size :
62.5x62.5mm
Lamination :
40mm
Phase :
Single phase
Number of poles :
two
Insulation class :
CL.B
Bearing :
ball bearing or sleeve bearings optional
pump nozzle :
direction is flexible
Rated load :
Atomizing chamber
Time rating :
S1 (continuous)
Packing :
Customized packing
Printing :
Customized printing
Application :
Compressor nebulizer/ suction machine
Description

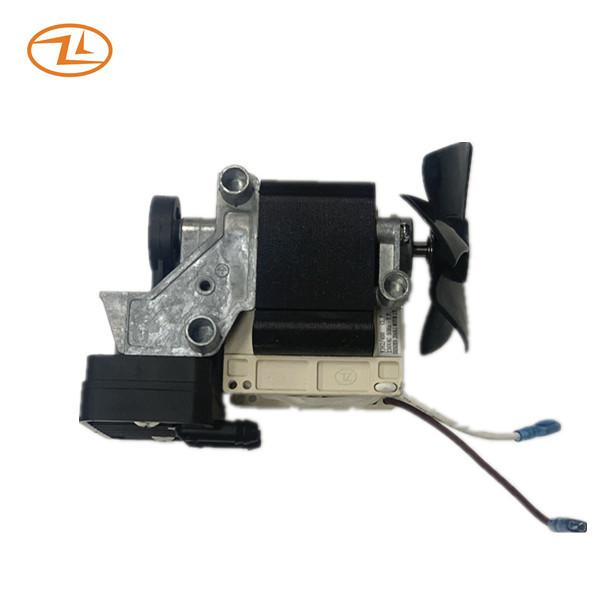

High Pressure And Flow Rate Nebulizer Compressor Motor 40mm Thick Zhaoli Motor

This kind of pump motor is composed by shaded pole motor with piston pump. Most of the parts are produced by our own factory- stack stamping, die-casting, motor shaft, plastic part injection. In this case, we can shorten the lead time and gurantee the parts' quality.

Specification:

Rated voltage/frequency V/HZ 220-230V 50HZ
Rated current A 0.63A max
Rated input power W 75W max
Starting voltage V 198V max
Rated speed RPM 2400RPM min
Working air pressure PSI 120-150Kpa
Working flow rate L/M 7L/M min
Max pressure PSI 45PSI min
Max flow rate L/M 18 L/M min

Insulation resistance: The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)

Dielectric strength: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.


Drawing:

High Pressure Pump Nebulizer Compressor Motor 0.63A 40mm Thick Flow Rate

Application: Compressor Nebulizer, Suction machine
