Atomizer Diaphragm Air Pump DC Motor 6V With Electromagnetic Valve
Atomizer Diaphragm Air Pump DC Motor 6V With Electromagnetic Valve
Atomizer Diaphragm Air Pump DC Motor 6V With Electromagnetic Valve
Atomizer Diaphragm Air Pump DC Motor 6V With Electromagnetic Valve
Atomizer Diaphragm Air Pump DC Motor 6V With Electromagnetic Valve
Atomizer Diaphragm Air Pump DC Motor 6V With Electromagnetic Valve
Specifications
Brand Name :
Zhaoli
Model Number :
DC2430PD01
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
DC air pump
Rated voltage :
6.0VDC
Bearing :
sleeve bearing
Packing :
Customized packing
Printing :
Customized printing
Application :
portable nebulizer/ blood pressure
Pump type :
diaphragm air pump
Description

Diaphragm Air Pump DC Motor For Portable Atomizer Blood Pressure Supply With Electromagnetic Valve

Pump type: diaphragm pump

Specification:

  • Operating condition
Test Environment Ambient temperature of 20℃ and relative humidity of 65%RH.
Position Horizontal
Load Air pressure 300mmHg
Operating condition -10℃~55℃, RH 40%~85%
Storage condition -20℃~55℃, RH 5%~90%

  • Electric characteristics
Rated voltage 6.0VDC
Operating voltage 4.0 - 7.2 VDC
Rated current The highest current is less than 380mA while pressurizing with DC6.0V from 0 to 300mmHg.
Inflation time It takes Less than 10 seconds to pressurize with DC6.0V from 0 to 300 mmHg in a 500cc tank.
Leakage Pressurizing from 0 till 300±30mmHg in a 500CC tank, then holding for 30 seconds. After that, measuring the dropped pressure value, which shall be less than 2.0mmHg/min.
Max pressure The maximum pressure value shall be more than 400 mmHg while pressurizing with DC 6.0 V in a 500CC tank from 0 till dead-head pressure value.
Restart voltage Fill pressure until 200mmHg pause,and then add DC 3.0V voltage pump should restart.
Dielectric strength 600VAC/1S leakage current <=5mA
Temperature rise <60K

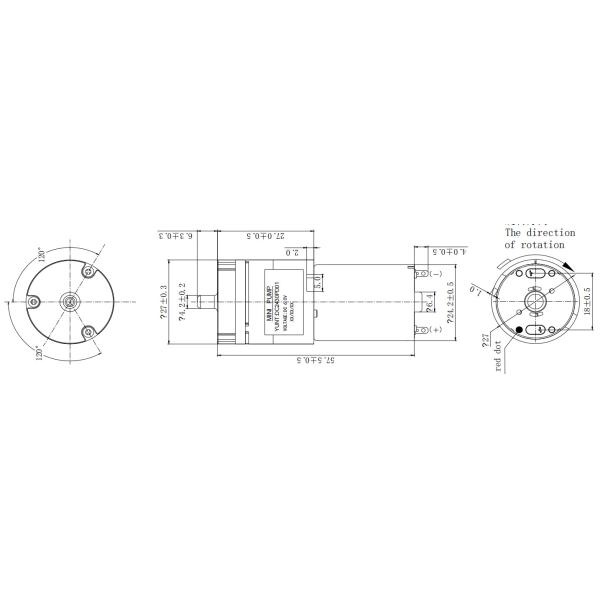

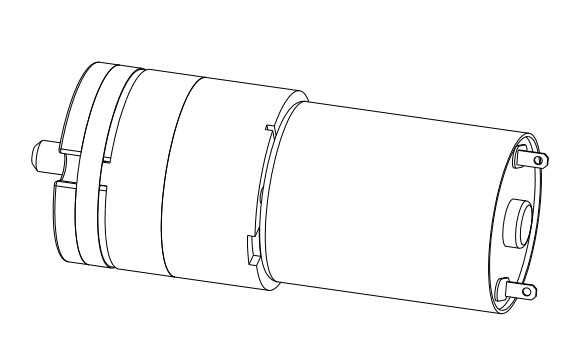

Drawing:

Atomizer Diaphragm Air Pump DC Motor 6V With Electromagnetic ValveAtomizer Diaphragm Air Pump DC Motor 6V With Electromagnetic Valve

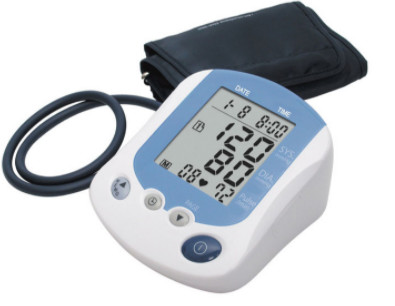

Application: This model is mainly applied in blood pressure or any other atomizer use.

Atomizer Diaphragm Air Pump DC Motor 6V With Electromagnetic Valve
