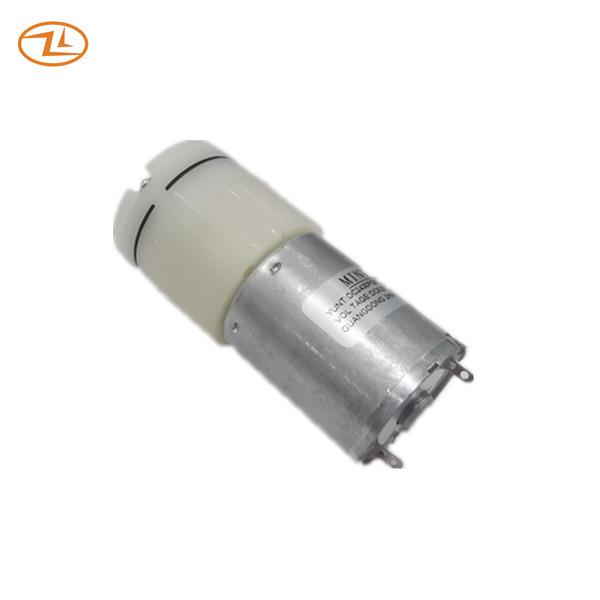

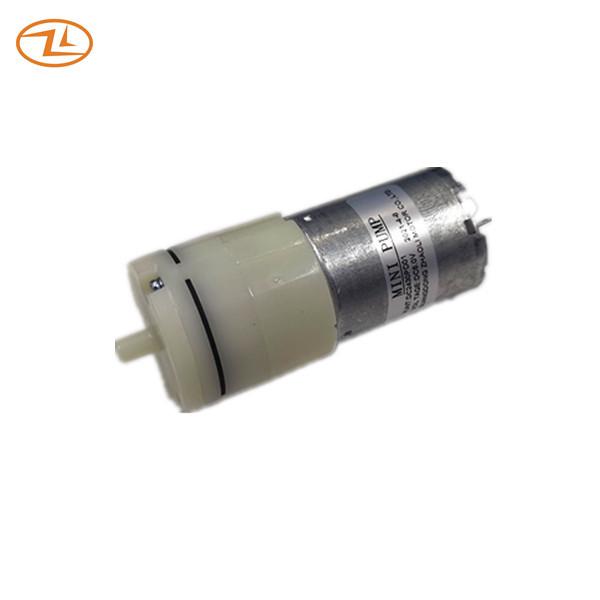

Blood Pressure DC Air Pump Motor 6.0V 300mmHg For Portable Nebulizer
Blood Pressure DC Air Pump Motor 6.0V 300mmHg For Portable Nebulizer
Blood Pressure DC Air Pump Motor 6.0V 300mmHg For Portable Nebulizer
Blood Pressure DC Air Pump Motor 6.0V 300mmHg For Portable Nebulizer
Specifications
Brand Name :
Zhaoli
Model Number :
DC2430PD01
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
10,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
DC air pump
Rated voltage :
6.0VDC
Bearing :
sleeve bearing
Packing :
Customized packing
Printing :
Customized printing
Application :
portable nebulizer/ blood pressure
Description

DC Air Pump Diaphragm Pump For Portable Nebulizer Blood Pressure 6.0VDC

Pump type: diaphragm pump

Application: This model is mainly applied in blood pressure or any other atomizer use.

Specification:

Rated voltage 6.0VDC
Operating voltage 4.0 - 7.2 VDC
Rated current The highest current is less than 380mA while pressurizing with DC6.0V from 0 to 300mmHg.
Inflation time It takes Less than 10 seconds to pressurize with DC6.0V from 0 to 300 mmHg in a 500cc tank.
Leakage Pressurizing from 0 till 300±30mmHg in a 500CC tank, then holding for 30 seconds. After that, measuring the dropped pressure value, which shall be less than 2.0mmHg/min.
Max pressure The maximum pressure value shall be more than 400 mmHg while pressurizing with DC 6.0 V in a 500CC tank from 0 till dead-head pressure value.
Restart voltage Fill pressure until 200mmHg pause,and then add DC 3.0V voltage pump should restart.
Dielectric strength 600VAC/1S leakage current <=5mA
Temperature rise <60K

Drawing:

Blood Pressure DC Air Pump Motor 6.0V 300mmHg For Portable NebulizerBlood Pressure DC Air Pump Motor 6.0V 300mmHg For Portable Nebulizer
