25W BLDC Brushless EC Motor 56 Inch 240V Fan Motor Outer rotor
25W BLDC Brushless EC Motor 56 Inch 240V Fan Motor Outer rotor
25W BLDC Brushless EC Motor 56 Inch 240V Fan Motor Outer rotor
25W BLDC Brushless EC Motor 56 Inch 240V Fan Motor Outer rotor
Specifications
Brand Name :
Zhaoli
Model Number :
EBTF0LBB01
Certification :
CE, ROHS, REACH
Place of Origin :
China
MOQ :
1000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
1,000pcs per day
Delivery Time :
25-45 days
Packaging Details :
cartons + pallets
Name :
BLDC Ceiling fan motor
Rated voltage :
240VAC
Stack size :
φ180mm
Number of poles :
Eight poles
Number of phases :
three phase
Bearing :
Ball bearings
Construction :
Outer rotor
Control type :
PWM
Output signal :
FG
Rectifying method :
electronices
Packing :
Customized packing
Printing :
Customized printing
Anicilary :
Emitter and signal Receiver
Application :
BLDC Ceiling fan
Description

BLDC Ceiling Fan Motor For 56 Inch Ceiling Fan 240VAC 25W Long Life Controller Supply

Brushless DC motor uses electronic communtation instead of mechanical steering. Compared with Brush DC motor, it has long working life and eliminates mechanical steering's noise, sparks and electromagnetic interference and so on. It is of great convenience and reasoning to control motor's performance. Brushless DC motor can be mainly divided into two parts, motor and circuit control. Motor is composed of rotor which its main component is permanent magnet and of stator which its main component is silicon steel sheet and copper wire.

This motor is also called EC motor. No transformer need. The motor controller functions as "AC to DC" and supply DC power to motor.

Model

Bearing type

Ball/sleeve

Rated voltage

VAC

 Operating voltage VAC Rated input power W

Speed

RPM

 Load

Life

hours
EBTF0LBB01 Ball bearing 240 160~270 25 175 56inch fan 30,000
EBTF0LAB01 Ball bearing 120 90~150 30 100 68inch fan 30,000
EBTF0LBB02 Ball bearing 240 160~270 35 110 72inch fan 30,000
EBTF0LBB03 Ball bearing 240 160~270 400 130 2.8M fan 30,000

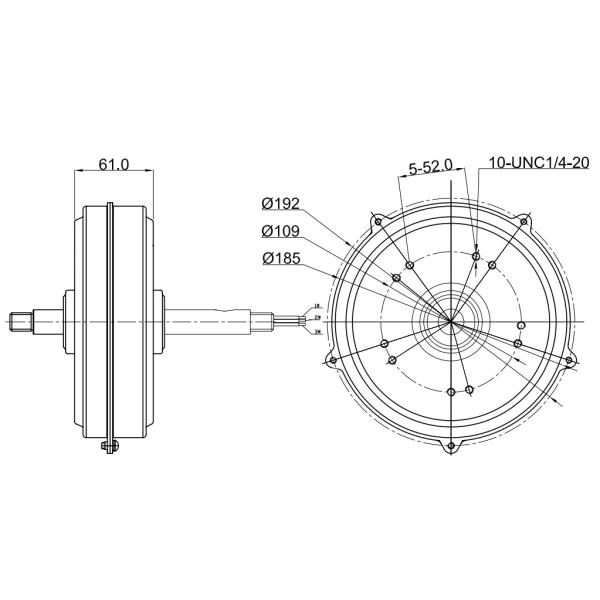

Drawing:

25W BLDC Brushless EC Motor 56 Inch 240V Fan Motor Outer rotor

Application: Ceiling fan

25W BLDC Brushless EC Motor 56 Inch 240V Fan Motor Outer rotor
