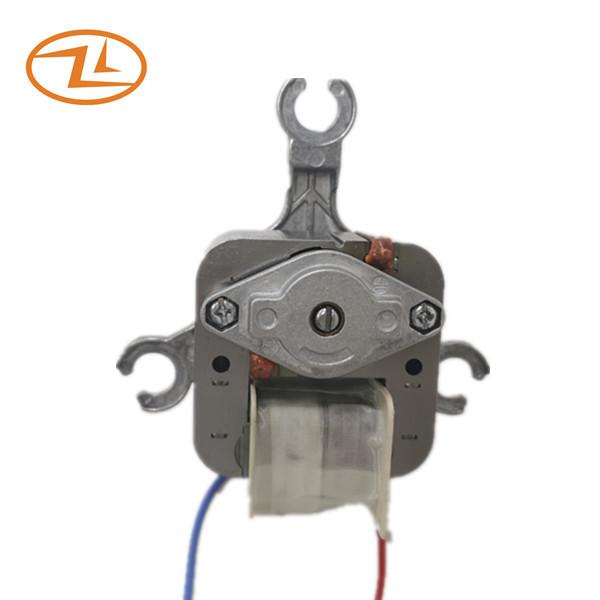

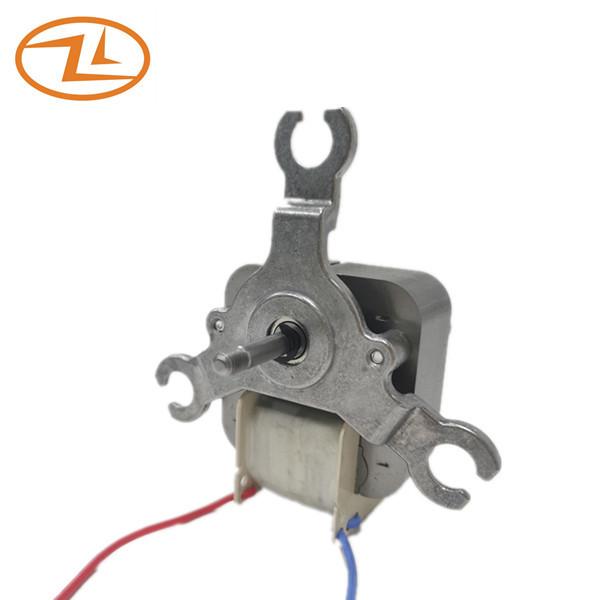

Shaded Pole Air Fryer Motor YJ61 120V 60HZ With Thermal Fuse
Shaded Pole Air Fryer Motor YJ61 120V 60HZ With Thermal Fuse
Shaded Pole Air Fryer Motor YJ61 120V 60HZ With Thermal Fuse
Shaded Pole Air Fryer Motor YJ61 120V 60HZ With Thermal Fuse
Shaded Pole Air Fryer Motor YJ61 120V 60HZ With Thermal Fuse
Shaded Pole Air Fryer Motor YJ61 120V 60HZ With Thermal Fuse
Specifications
Brand Name :
Zhaoli
Model Number :
YJ61-25
Certification :
UL, CUL, CE, CCC, VDE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + pallets
Name :
Air fryer shaded pole motor
Rated voltage :
120V 60HZ
Stack size :
61x60.5mm
Lamination thickness :
25mm
Insulation class :
CL.H
Bearing :
Ball bearing or sleeve bearing
Protection method :
thermal fuse
Fan impeller :
customized
Shaft :
customized
Printing :
Customized printing
Packing :
Customized packing
Type :
AC shaded pole motor
Phase :
Single phase
Application :
air fryer/oven
Description

Air Fryer Motor Shaded Pole Motor YJ61/300HL1 120V 60HZ With Thermal Fuse

This is one kind of shaded pole motors, mainly applied in Air Fryer products. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.

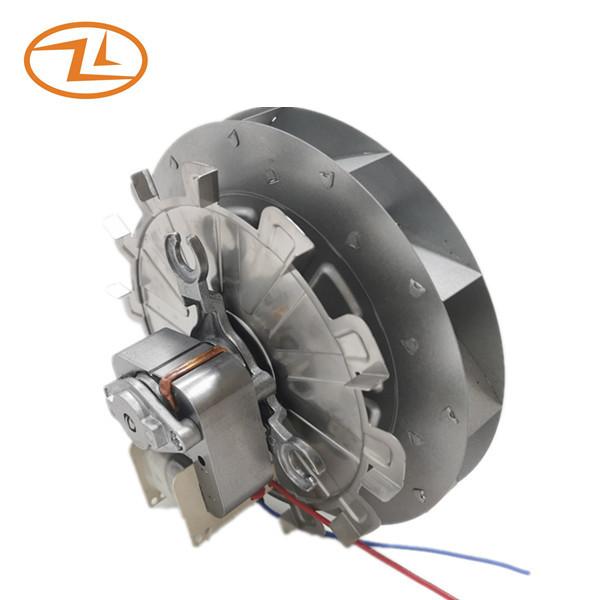

We can also provide fan impellers (for cooling and blowing the heat into the food)

Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.

Specification:

Model

Rated

Voltage/ Frequency

V/HZ

 Free Load

Current

A

Input Power

W

Speed

RPM
YJ61-25 120 60 <=0.9 40+/-15% >=3300
YJ61-25 230 50 <=0.5 37+/-15% >=2700

Drawing:

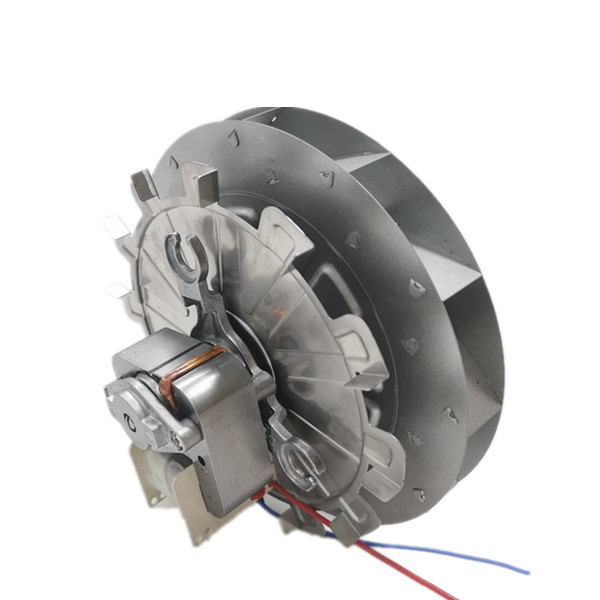

Shaded Pole Air Fryer Motor YJ61 120V 60HZ With Thermal Fuse

Application: Air fryer

Shaded Pole Air Fryer Motor YJ61 120V 60HZ With Thermal Fuse
