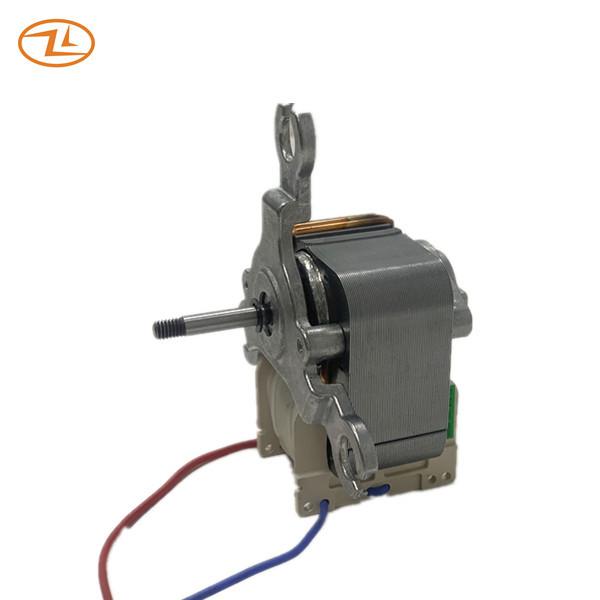

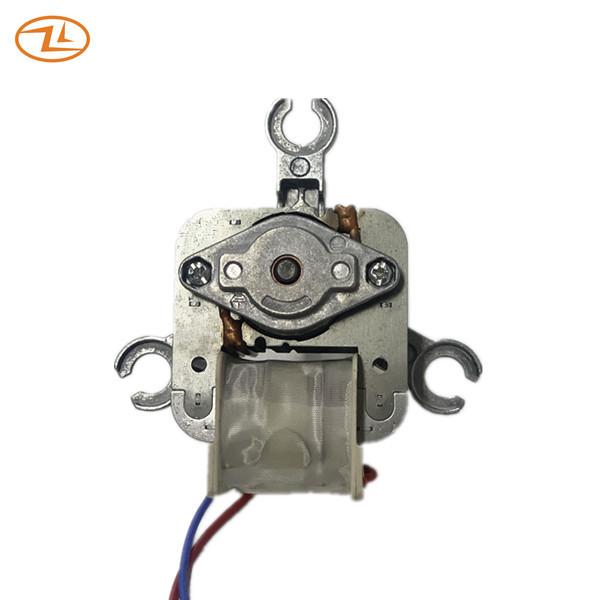

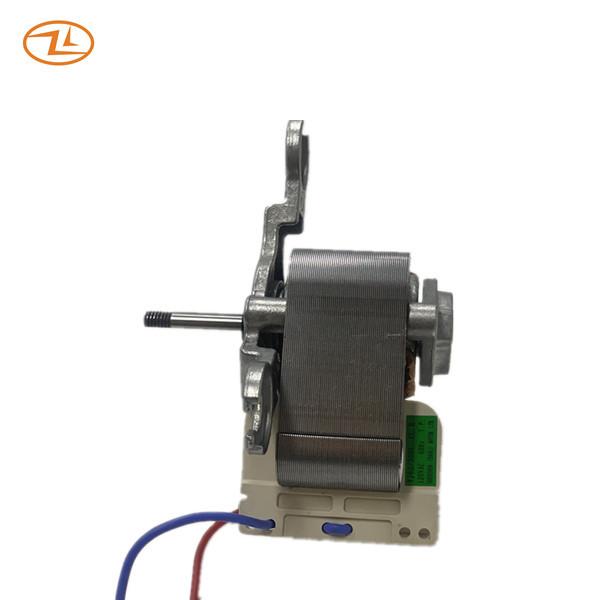

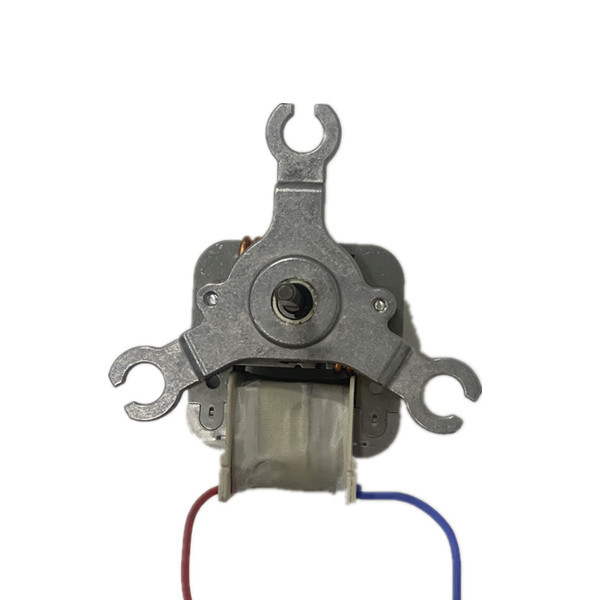

Air Fryer 1 Phase AC Motors Shaded Pole 0.55A 50HZ With Thermal Fuse
Air Fryer 1 Phase AC Motors Shaded Pole 0.55A 50HZ With Thermal Fuse
Air Fryer 1 Phase AC Motors Shaded Pole 0.55A 50HZ With Thermal Fuse
Air Fryer 1 Phase AC Motors Shaded Pole 0.55A 50HZ With Thermal Fuse
Air Fryer 1 Phase AC Motors Shaded Pole 0.55A 50HZ With Thermal Fuse
Air Fryer 1 Phase AC Motors Shaded Pole 0.55A 50HZ With Thermal Fuse
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62/300L
Certification :
UL, CUL, CE, CCC, VDE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + pallets
Name :
Air fryer motor FG550
Rated voltage :
120V 60HZ
Stack size :
62.5x62.5mm
Lamination thickness :
30.5mm
Insulation class :
CL.H
Bearing :
Ball bearing or sleeve bearing
Protection method :
thermal fuse
Fan impeller :
customized
Shaft :
customized
Printing :
Customized printing
Packing :
Customized packing
Type :
AC shaded pole motor
Phase :
Single phase
Application :
air fryer
Description

YJ62/300 Air Fryer Motor 230V 50HZ Long Life Ball Bearing With Thermal Fuse

This is one kind of shaded pole motors, mainly applied in Air Fryer products. It is flexible in stack thickness, shaft dimension, bearings and fitting dimensions.We can also provide fan impellers (for cooling and blowing the heat into the food)

Model

Rated Voltage/ Frequency

V/HZ

 On Load
Starting voltage V

Current

A

Input Power

W

Speed

RPM
YJ62/300L 120 60 <96V <=1.15 67+/-15% 2900+/-200
YJ62/300L 230 50 <195V <=0.55 48+/-15% 2500+/-200

Insulation resistance: The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)

Dielectric strength: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.

Air Fryer 1 Phase AC Motors Shaded Pole 0.55A 50HZ With Thermal Fuse

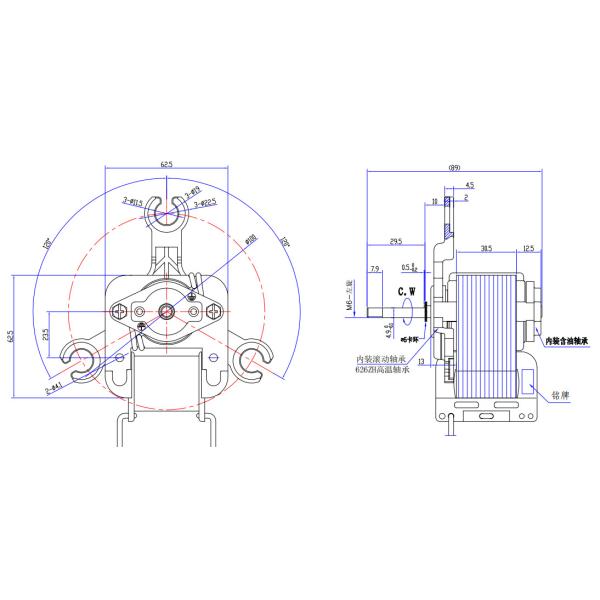

Drawing:
Air Fryer 1 Phase AC Motors Shaded Pole 0.55A 50HZ With Thermal Fuse

Application: Air fryer
