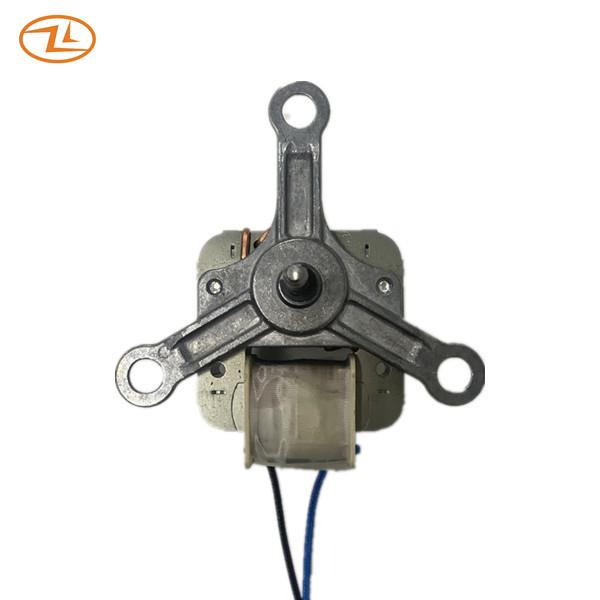

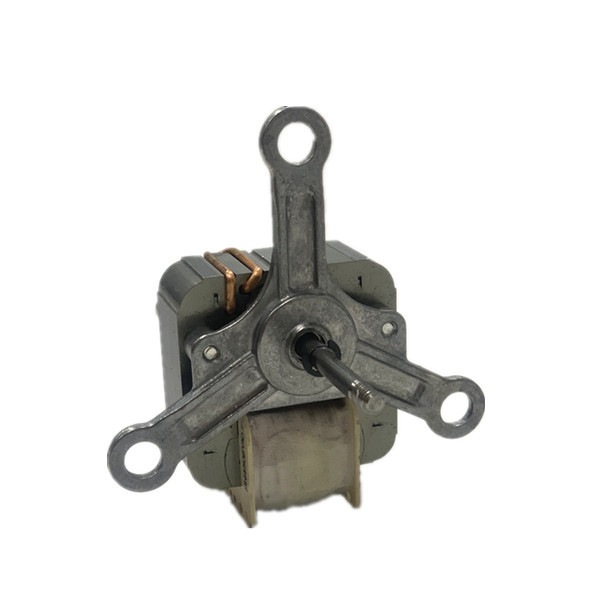

2500 RPM Air Fryer Motor 230V ELectric Oven Fan Motor Customized
2500 RPM Air Fryer Motor 230V ELectric Oven Fan Motor Customized
2500 RPM Air Fryer Motor 230V ELectric Oven Fan Motor Customized
2500 RPM Air Fryer Motor 230V ELectric Oven Fan Motor Customized
Specifications
Brand Name :
Zhaoli
Model Number :
YJ60-25
Certification :
UL, CUL, CE, CCC, VDE, ROHS, REACH
Place of Origin :
China
MOQ :
2000
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + pallets
Name :
Air fryer motor DZ100
Rated voltage :
230V 50HZ
Stack size :
60.5X58.5mm
Lamination thickness :
25mm
Insulation class :
CL.H
Bearing :
Ball bearing or sleeve bearing
Protection method :
thermal fuse
Fan impeller :
customized
Shaft :
customized
Printing :
Customized printing
Packing :
Customized packing
Type :
AC shaded pole motor
Phase :
Single phase
Application :
air fryer/electric grille
Description

YJ60-25 Air Fryer Motor ELectric Oven Fan Motor 230V 50HZ With Thermal Protector CL.H

Model

Rated Voltage/ Frequency

V/HZ

 On Load
Starting voltage V

Current

A

Input Power

W

Speed

RPM
YJ60-25 220 50 <195V <=0.45 36+/-15% 2500+/-200

Rated voltage/frequency 230V 50HZ
Insulation class CL.H
Rotation direction CW (view from the output shaft)
Working Temp. 0~40℃
Working humidity 90% RH max
Voltage fluctuation 5% range of the rated voltage at rated load
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Extreme temp. limit 180℃

2500 RPM Air Fryer Motor 230V ELectric Oven Fan Motor Customized

Drawing:

2500 RPM Air Fryer Motor 230V ELectric Oven Fan Motor Customized

Application: Air fryer
