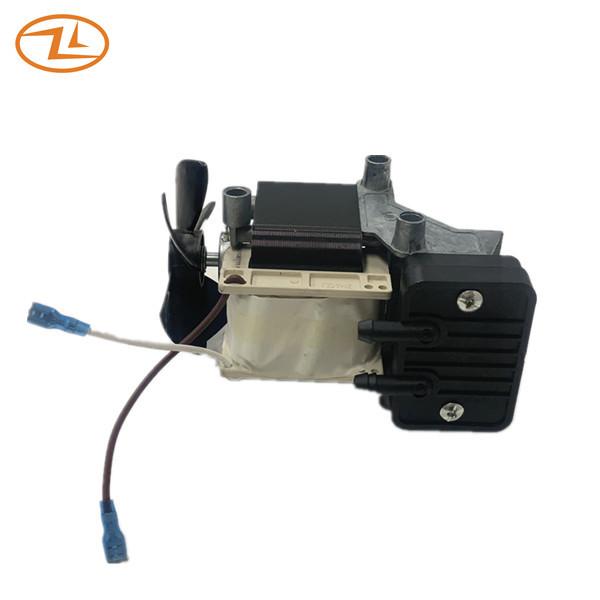

YJ62 400 Nebulizer Compressor Motor / Suction Pump Motor 75W 230V Ball Bearings
YJ62 400 Nebulizer Compressor Motor / Suction Pump Motor 75W 230V Ball Bearings
YJ62 400 Nebulizer Compressor Motor / Suction Pump Motor 75W 230V Ball Bearings
YJ62 400 Nebulizer Compressor Motor / Suction Pump Motor 75W 230V Ball Bearings
YJ62 400 Nebulizer Compressor Motor / Suction Pump Motor 75W 230V Ball Bearings
YJ62 400 Nebulizer Compressor Motor / Suction Pump Motor 75W 230V Ball Bearings
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62/400
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
compressor nebulizer motor
Rated voltage :
230V 50HZ
Stack size :
62.5x62.5mm
Lamination :
40mm
Phase :
Single phase
Number of poles :
two
Insulation class :
CL.B
Bearing :
ball bearing or sleeve bearings optional
pump nozzle :
direction is flexible
Rated load :
Atomizing chamber
Time rating :
S1 (continuous)
Packing :
Customized packing
Printing :
Customized printing
Application :
Compressor nebulizer/ suction machine
Description

YJ62/400 Nebulizer Compressor Motor Big Suction Pump Motor 230V 50HZ Ball Bearings

A piston pump contains an accurately machined die-casted piston moving in a cylinder normally fitted with inlet and outlet valves. It can be used for compressing the air out or suck the air in.

Specification:

Rated voltage/frequency V/HZ 220-230V 50HZ
Rated current A 0.63A max
Rated input power W 75W max
Starting voltage V 198V max
Rated speed RPM 2400RPM min
Working air pressure Kpa 120-150Kpa
Working flow rate L/M 7L/M min
Max pressure PSI 45PSI min
Max flow rate L/M 18 L/M min
Insulation Class CL.B
Rotation Direction CCW (view from pump side)
Protection Thermal protector 150℃
Piston bearing Ball bearing
Nozzle direction Flexible, it can be four directions
Cooling fan size Φ82mm
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Life At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min.

Drawing:

YJ62 400 Nebulizer Compressor Motor / Suction Pump Motor 75W 230V Ball Bearings

Application: Compressor Nebulizer, Suction machine

YJ62 400 Nebulizer Compressor Motor / Suction Pump Motor 75W 230V Ball Bearings

YJ62 400 Nebulizer Compressor Motor / Suction Pump Motor 75W 230V Ball Bearings
