60HZ 220V Nebulizer Compressor Motor Ball Bearing 1 Phase Induction Motor
60HZ 220V Nebulizer Compressor Motor Ball Bearing 1 Phase Induction Motor
60HZ 220V Nebulizer Compressor Motor Ball Bearing 1 Phase Induction Motor
60HZ 220V Nebulizer Compressor Motor Ball Bearing 1 Phase Induction Motor
60HZ 220V Nebulizer Compressor Motor Ball Bearing 1 Phase Induction Motor
60HZ 220V Nebulizer Compressor Motor Ball Bearing 1 Phase Induction Motor
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62/300
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
compressor nebulizer motor
Rated voltage :
220V 60HZ
Stack size :
62.5x62.5mm
Lamination :
25mm
Phase :
Single phase
Number of poles :
two
Insulation class :
CL.B
Bearing :
ball bearing or sleeve bearings optional
pump nozzle :
direction is flexible
Rated load :
Atomizing chamber
Time rating :
S1 (continuous)
Packing :
Customized packing
Printing :
Customized printing
Application :
Compressor nebulizer/Vacuum use/Inhaler
Description

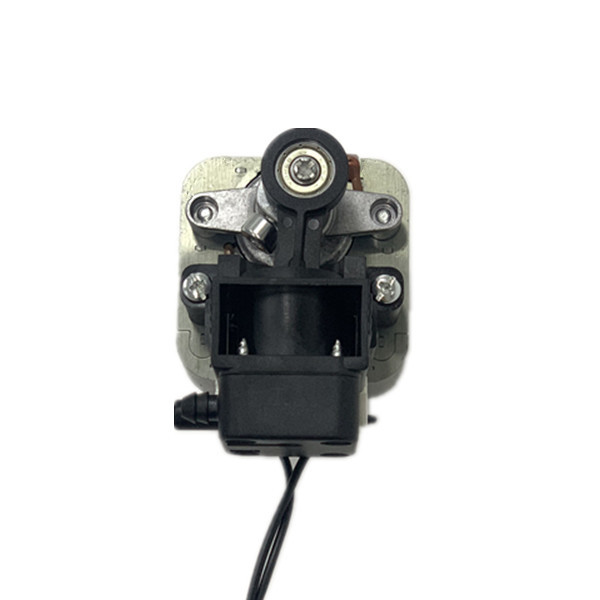

Nebulizer Compressor Motor Nebulizer Pump YJ62/300 220V 60HZ Ball Bearing

The motor is single phase shaded pole motor. Pump is designed for air compressor use.

Shaded pole motor is a single-phase induction motor in small ratings made self-starting by flux displacement derived by means of a permanently short-circuited, high-resistance winding or loop encircling a fraction of the pole pitch or pole piece.

Specification:

Rated voltage/frequency V/HZ 220V 60HZ
Rated current A 0.70A max
Rated input power W 68W max
Starting voltage V 200V max
Working air pressure PSI 10PSI min
Rated flow rate L/H 300L/H min
Max pressure PSI 30PSI min
Insulation Class CL.B
Rotation Direction CCW (view from pump side)
Protection Thermal protector 150℃
Piston bearing Ball bearing
Nozzle direction Flexible, it can be four directions
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Life At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min.


Drawing:

60HZ 220V Nebulizer Compressor Motor Ball Bearing 1 Phase Induction Motor

60HZ 220V Nebulizer Compressor Motor Ball Bearing 1 Phase Induction Motor

Application: Compressor nebulizer
