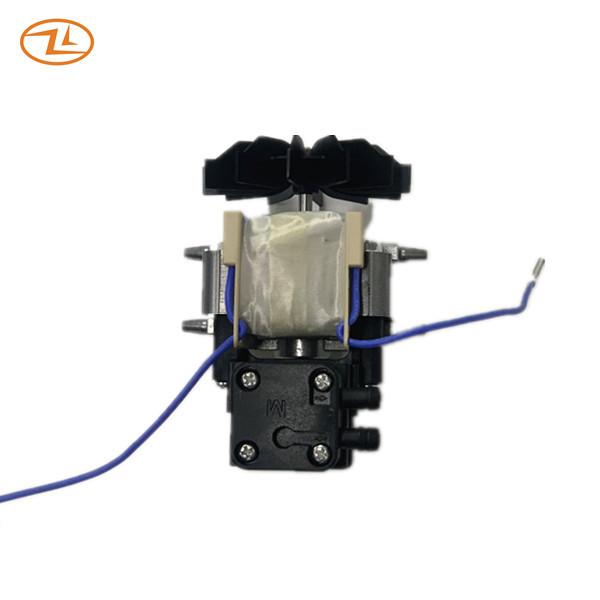

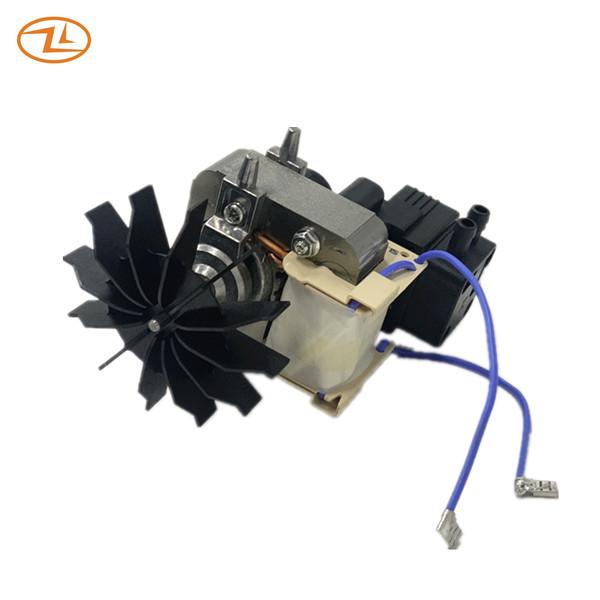

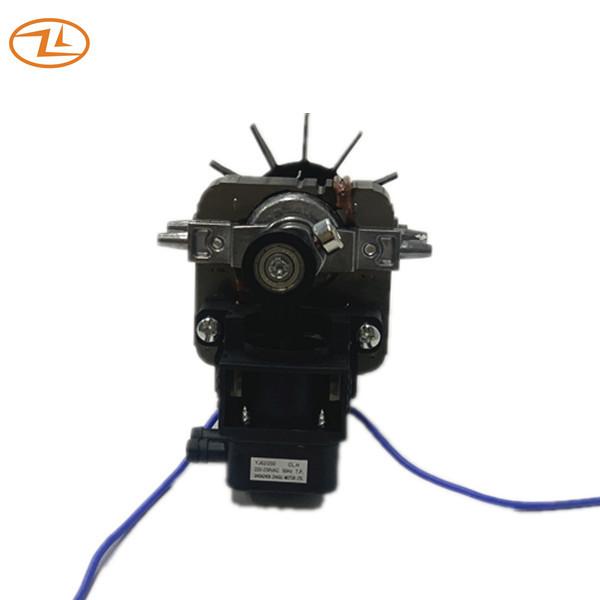

Atomizer 20mm Quiet Air Compressor Motor / Ball Bearing Motors
Atomizer 20mm Quiet Air Compressor Motor / Ball Bearing Motors
Atomizer 20mm Quiet Air Compressor Motor / Ball Bearing Motors
Atomizer 20mm Quiet Air Compressor Motor / Ball Bearing Motors
Atomizer 20mm Quiet Air Compressor Motor / Ball Bearing Motors
Atomizer 20mm Quiet Air Compressor Motor / Ball Bearing Motors
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62/400
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
compressor nebulizer motor
Rated voltage :
220-230V 50HZ
Stack size :
62.5x60.5mm
Lamination :
20.5mm
Phase :
Single phase
Number of poles :
two
Insulation class :
CL.H
Bearing :
ball bearing or sleeve bearings optional
Rated load :
Atomizing chamber
Time rating :
S1 (continuous)
pump nozzle :
direction is flexible
Packing :
Customized packing
Printing :
Customized printing
Application :
Compressor nebulizer
Description

20mm Piston Compressor Nebulizer Motor Ball Bearing Flexible Nozzle Direction

Construction:

Insulation Class CL.H
Rotation Direction CCW (view from pump side)
Protection Thermal fuse 150℃
Piston bearing Ball bearing
Nozzle direction Flexible

Specification:

Rated voltage/frequency V/HZ 220-230V 50HZ
Power consumption 230V 50HZ <110VAC
Max pressure Kpa >130Kpa
Max flow rate L/M >9L/M
Working pressure Kpa 220V 50HZ >50Kpa
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Safety Under locked-rotor condition, no fire, no flame.

Drawing:

Atomizer 20mm Quiet Air Compressor Motor / Ball Bearing Motors

Application: Compressor Nebulizer

Atomizer 20mm Quiet Air Compressor Motor / Ball Bearing Motors
