YJ62 300 60W Low Noise Compressor Motor / 230V 50HZ AC Motor With Silencer
YJ62 300 60W Low Noise Compressor Motor / 230V 50HZ AC Motor With Silencer
YJ62 300 60W Low Noise Compressor Motor / 230V 50HZ AC Motor With Silencer
YJ62 300 60W Low Noise Compressor Motor / 230V 50HZ AC Motor With Silencer
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62-25
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
nebulizer compressor motor
Rated voltage :
230V 50HZ
Stack size :
62.5x62.5mm
Lamination :
25.5mm
Phase :
Single phase
Number of poles :
two
Insulation class :
CL.B
Bearing :
ball bearings
pump nozzle :
fixed
Rated load :
Atomizing chamber
Time rating :
S1 (continuous)
Packing :
Customized packing
Printing :
Customized printing
Application :
Compressor nebulizer
Description

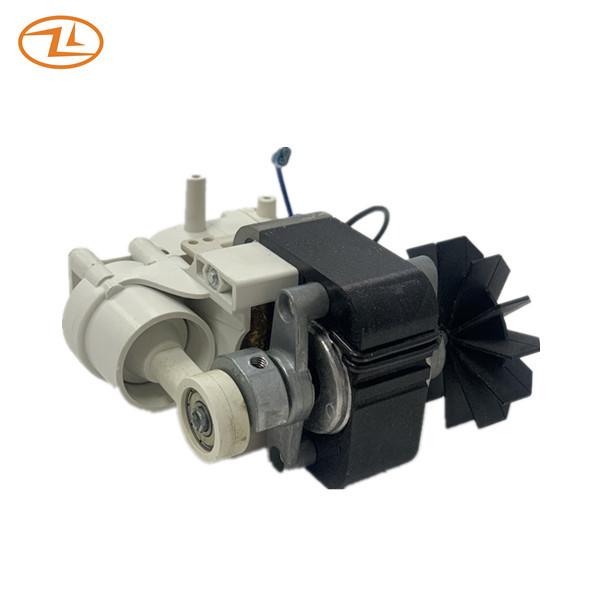

Low Noise Nebulizer Compressor Nebulizer Motor YJ62/300 230V 50HZ With Silencer

This pump is specially designed with a silencer part to achieve lower noise.

Construction:

Insulation Class CL.B
Rotation Direction CCW (view from pump side)
Protection Thermal protector 150℃
Piston bearing Ball bearing
Nozzle direction Fixed
Cooling fan size Φ58mm

Specification:

Rated voltage/frequency V/HZ 220V 50HZ
Rated current A 0.65A max
Rated input power W 60W max
Starting voltage V 187V max
Rated speed RPM 2500RPM min
Working air pressure PSI 14 PSI min
Working flow rate L/M 4.5L/M min
Max pressure PSI 32PSI min
Max flow rate L/M 14.5 L/M min
Insulation resistance The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)
Dielectric strength It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.
Life At rated load, 20 mins on, 40 mins off as one cycle. 1000 hours min.

YJ62 300 60W Low Noise Compressor Motor / 230V 50HZ AC Motor With Silencer

Drawing:

YJ62 300 60W Low Noise Compressor Motor / 230V 50HZ AC Motor With Silencer

Application: Air compressor nebulizer

YJ62 300 60W Low Noise Compressor Motor / 230V 50HZ AC Motor With Silencer
