Air Compressor 25mm Pure Copper Motor 48W 2500 RPM DC Motor
Air Compressor 25mm Pure Copper Motor 48W 2500 RPM DC Motor
Air Compressor 25mm Pure Copper Motor 48W 2500 RPM DC Motor
Air Compressor 25mm Pure Copper Motor 48W 2500 RPM DC Motor
Air Compressor 25mm Pure Copper Motor 48W 2500 RPM DC Motor
Air Compressor 25mm Pure Copper Motor 48W 2500 RPM DC Motor
Specifications
Brand Name :
Zhaoli
Model Number :
YJ62-25
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
2000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
nebulizer compressor motor
Rated voltage :
230V 50HZ
Stack size :
62.5x62.5mm
Lamination :
25mm
Phase :
Single phase
Number of poles :
two
Insulation class :
CL.B
Bearing :
ball bearings
pump nozzle :
fixed
Rated load :
Atomizing chamber
Time rating :
S1 (continuous)
Packing :
Customized packing
Printing :
Customized printing
Application :
Compressor nebulizer
Description

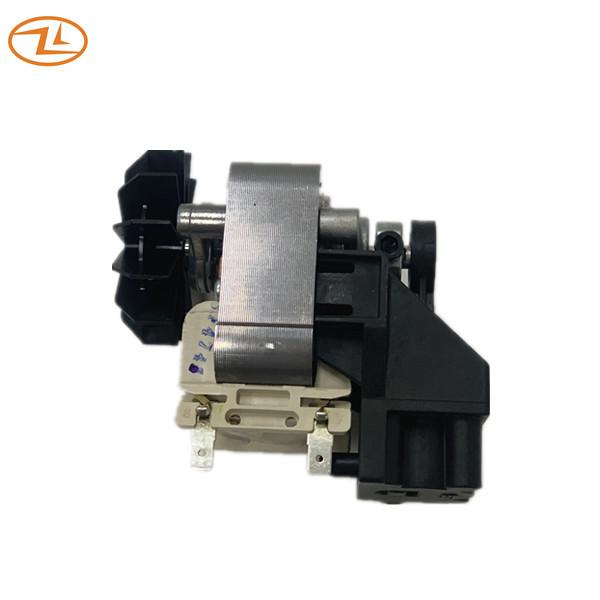

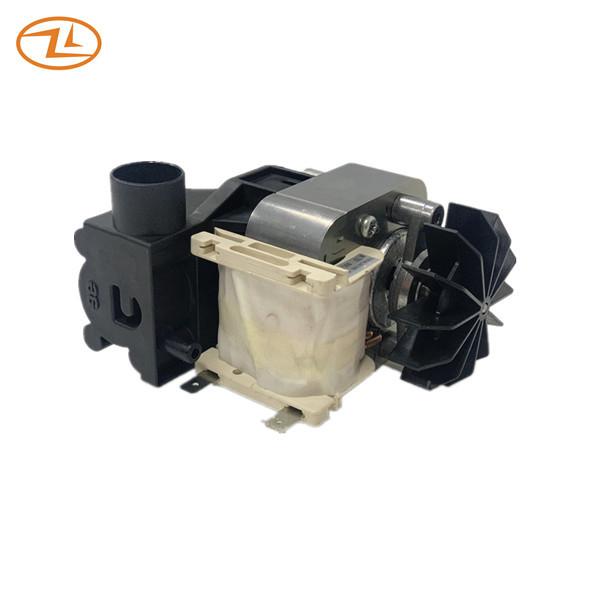

YJ62/300 Air Compressor Pump For Nebulizer Use 230V 50HZ Ball Bearings Pure Copper

This kind of pump motor is composed by shaded pole motor with piston pump. A piston pump contains an accurately machined die-casted piston moving in a cylinder normally fitted with inlet and outlet valves.

Construction:

Insulation Class CL.B
Rotation Direction CCW (view from pump side)
Protection Thermal protector 150℃
Piston bearing Ball bearing
Nozzle direction Flexible, it can be four directions
Cooling fan size Φ58mm

Specification:

Rated voltage/frequency V/HZ 230V 50HZ
Rated input power W 48W max
Starting voltage V 187V max
Rated speed RPM 2500RPM min
Working air pressure PSI 0.57 bar min
Working flow rate L/M 4.5L/M min
Max pressure PSI 3 +/-0.5 bar
Max flow rate L/M 15+/- 2 L/M

Insulation resistance: The cold insulation resistance between stator and terminal shall be more than 100MΩ(tested by DC 500V megger)

Dielectric strength: It shall be enough to withstand with application AC 1800V/2mA/1s. No puncture.

Drawing:

Air Compressor 25mm Pure Copper Motor 48W 2500 RPM DC Motor

Application: Nebulizer Pump Motor
