Bathroom Fan CL B Shaded Pole Motor YJ58 20 50HZ 20mm Lamination
Bathroom Fan CL B Shaded Pole Motor YJ58 20 50HZ 20mm Lamination
Bathroom Fan CL B Shaded Pole Motor YJ58 20 50HZ 20mm Lamination
Bathroom Fan CL B Shaded Pole Motor YJ58 20 50HZ 20mm Lamination
Specifications
Brand Name :
Zhaoli
Model Number :
YJ58-20
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
shaded pole motor
Rated voltage :
220V 50HZ
Stack size :
55x54mm
Lamination :
20mm
Insulation class :
CL.B
Bearing :
sleeve bearing ball bearing optional
Shaft :
customized
Load :
fan blade
Printing :
Customized printing
Packing :
Customized packing
Motor Type :
Asynchronous motor
Phase :
Single phase
Protection feature :
Thermal protection
Application :
circulator fan
Description

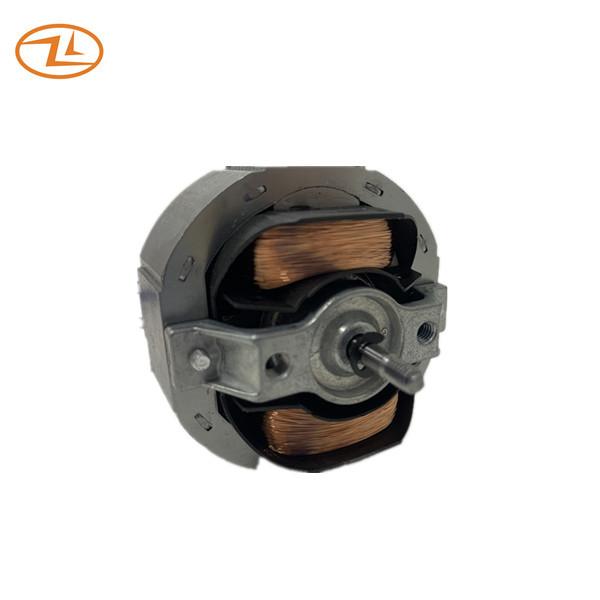

Shaded Pole Motor YJ58-20 220V 50HZ CL.B For Bathroom Fan Zhaoli Motor

Single Phase Shaded Pole motor is mainly composed of core, primary and secondary windings, rotor, stator and bobbin. Secondary winding is the short-circuiting ring, producing magnetic potential and forming a rotating magnetic field in the air gap. Rotor is made up of core and squirrel cage conductor. The function of squirrel cage conductor is to induce current and electromagnetic torque, realizing the conversion of electricity and motion energy.

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 On Load (fan blade)
Start-up voltage V

Current

A

Input power

W

Speed

RPM
YJ58-20 220 50 <198 0.185+/-15% 28+/-15% 1250+/-10%

Drawing:

Bathroom Fan CL B Shaded Pole Motor YJ58 20 50HZ 20mm Lamination

Application: Bathroom Fan, Circulator Fan

Bathroom Fan CL B Shaded Pole Motor YJ58 20 50HZ 20mm Lamination
