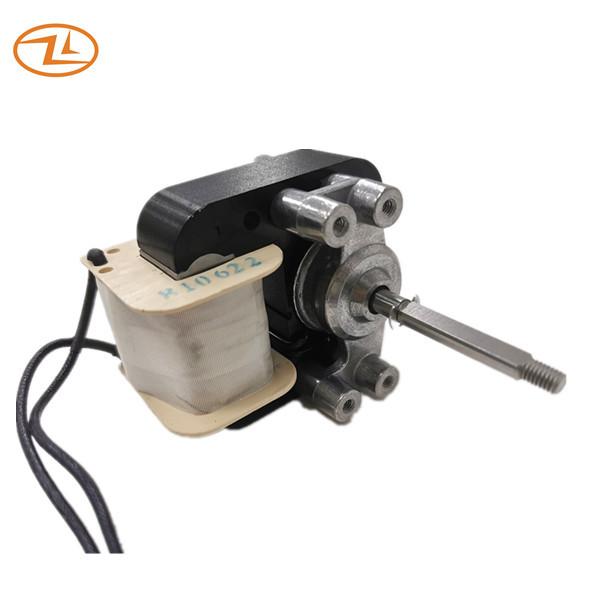

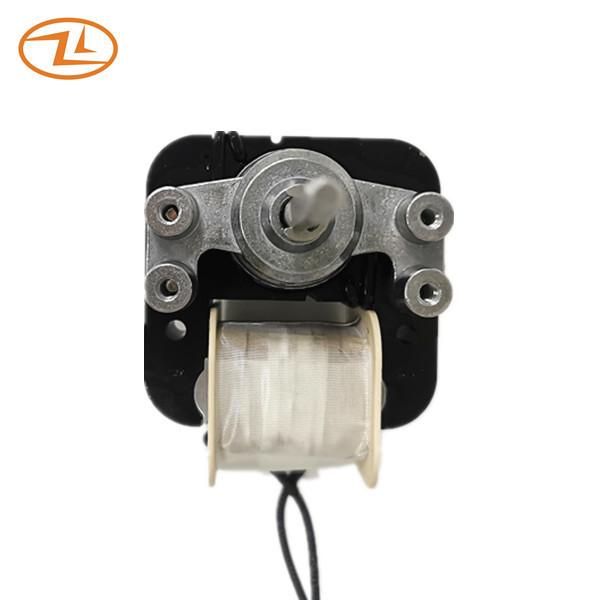

Oscillating Desktop Fan Motor / Air Circulator Motor 100V CL.H
Oscillating Desktop Fan Motor / Air Circulator Motor 100V CL.H
Oscillating Desktop Fan Motor / Air Circulator Motor 100V CL.H
Oscillating Desktop Fan Motor / Air Circulator Motor 100V CL.H
Oscillating Desktop Fan Motor / Air Circulator Motor 100V CL.H
Oscillating Desktop Fan Motor / Air Circulator Motor 100V CL.H
Specifications
Brand Name :
Zhaoli
Model Number :
YJ61/200
Certification :
UL, CUL, CE, VDE, CCC, ROHS, REACH
Place of Origin :
China
MOQ :
1000pcs
Payment Terms :
L/C, T/T, Western Union
Supply Ability :
300,000pcs per day
Delivery Time :
20-40 days
Packaging Details :
cartons + wooden pallet
Name :
shaded pole motor 16999
Rated voltage :
100V 50/60HZ
Stack size :
61x60.5mm
Lamination :
20.5mm
Insulation class :
CL.H
Bearing :
sleeve bearing ball bearing optional
Shaft :
customized
Load :
fan blade
Printing :
Customized printing
Packing :
Customized packing
Motor Type :
Asynchronous motor
Phase :
Single phase
Protection feature :
Thermal protection
Application :
circulator fan
Description

Compact Desktop Oscilating Air Circulator Use AC Shaded Pole Motor 100V 50/60HZ CL.H

Specification:

Model

Rated Voltage/ Frequency

V/HZ

 Free Load On Load (impeller)

Current

A

Input power

W

Speed

RPM

 Start-up voltage V

Current

A

Input power

W

Speed

RPM
YJ61-20 100 50 0.83+/-15% 34.5+/-15% 2700+/-10% 0.84+/-15% 38.5+/-15% 2550+/-10%
100 60 0.58+/-15% 26+/-15% 3300+/-10% <60V 0.62+/-15% 32.5+/-15% 3000+/-10%


Drawing:

Oscillating Desktop Fan Motor / Air Circulator Motor 100V CL.H

Application: Mainly applied in circulator fan, humidifier, dehumidifier, air purifier.

Oscillating Desktop Fan Motor / Air Circulator Motor 100V CL.H
